BZ1450B High Table Semi Automatic Corrugated Flute Paper Laminating Machine
- T/T Credit Card
You May Like
-
BZ1300E Automatic Corrugated Carton Flute Laminator, cardboard sheet to sheet pasting mounting machine
-
BZ1300E 3PLY 5PLY 7PLY Automatic Corrugated Carton Flute Laminator, paper sheet to sheet pasting mounting machine
-
BZ1650B Economic A B C E F flute paper to cardboard Semi Automatic Flute Laminator for Two sheet pasting
-
YDFM720 Preglued BOPP Thermal Hot Manual Laminating Machine, PET OPP double side Glueless laminator
-
YDFM520 Hydraulic Oil Heat Paper Poster Manual Laminating Machine, Preglued Gluless bopp thermal laminator
-
SZFM1100 Automatic Water Glue paper Laminating machine, paper photo album catalogue BOPP cold laminator
Product Description

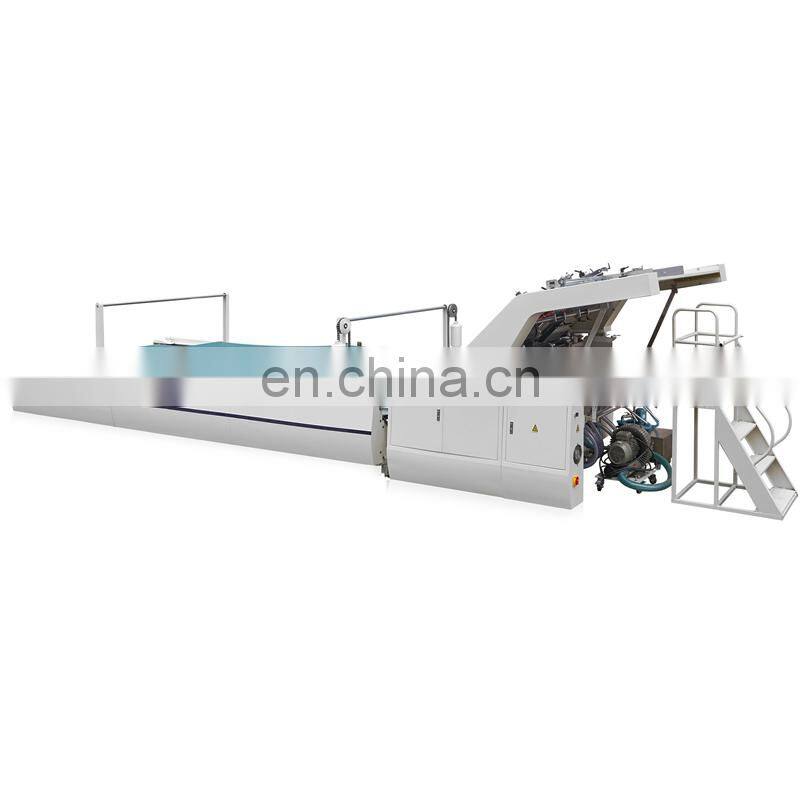

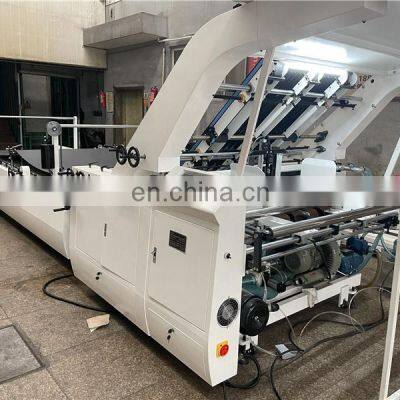

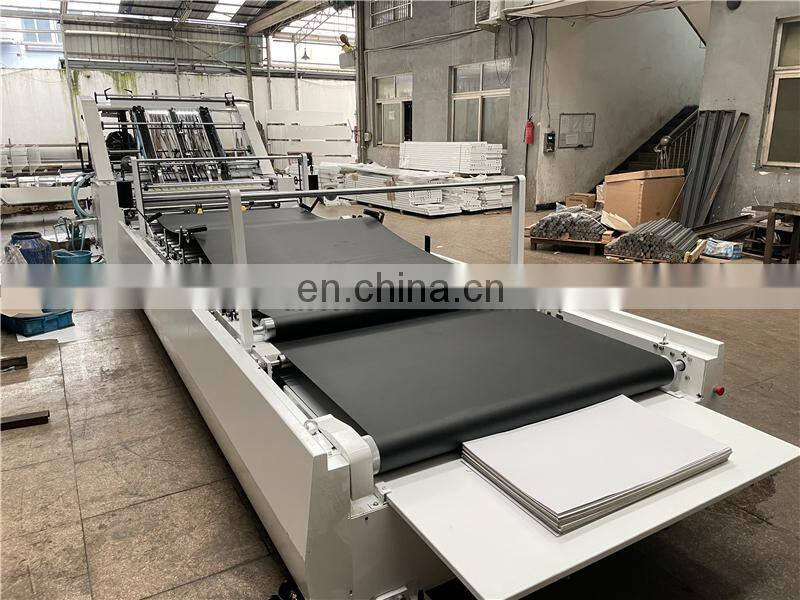

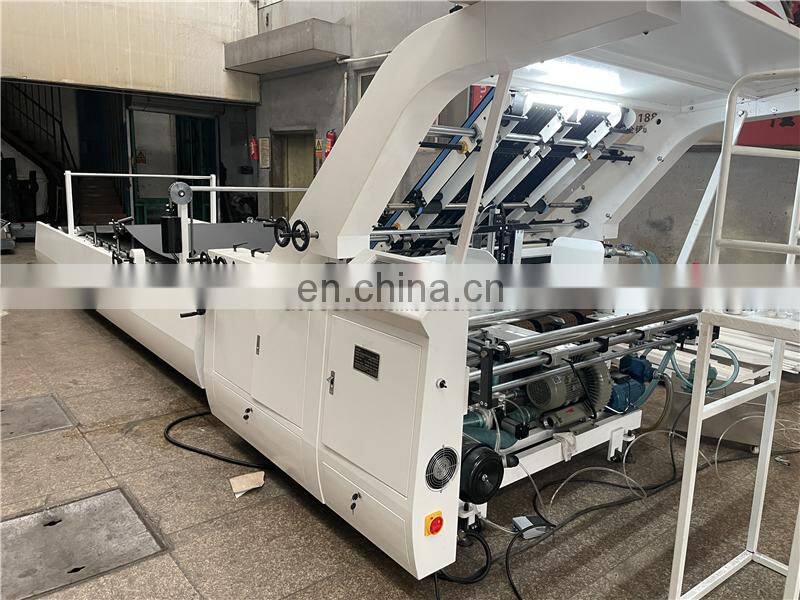

BZ1450B High Table Semi Automatic Corrugated Flute Paper Laminating Machine
Video demonstration only for reference
Video Link 1: /watch?v=YcGMzI9_mxo
Video link 2: /watch?v=V6i9odjYkTk
Description:

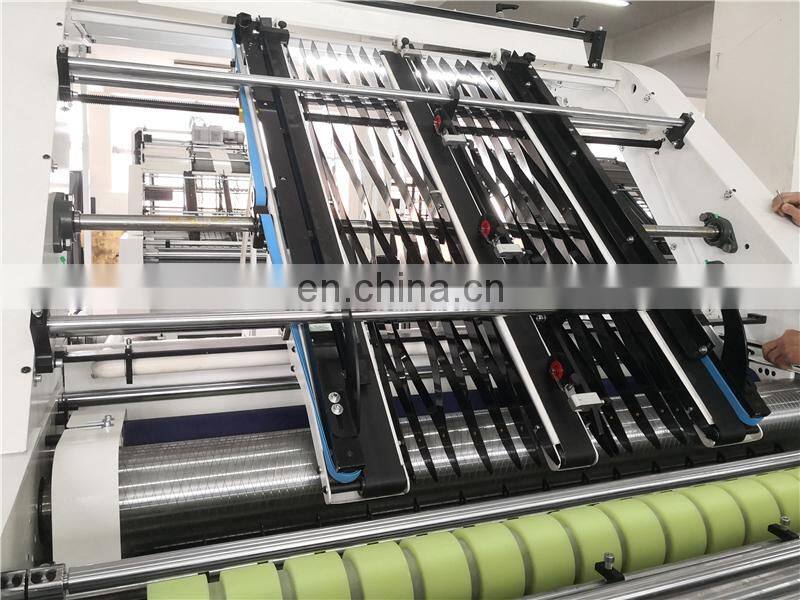

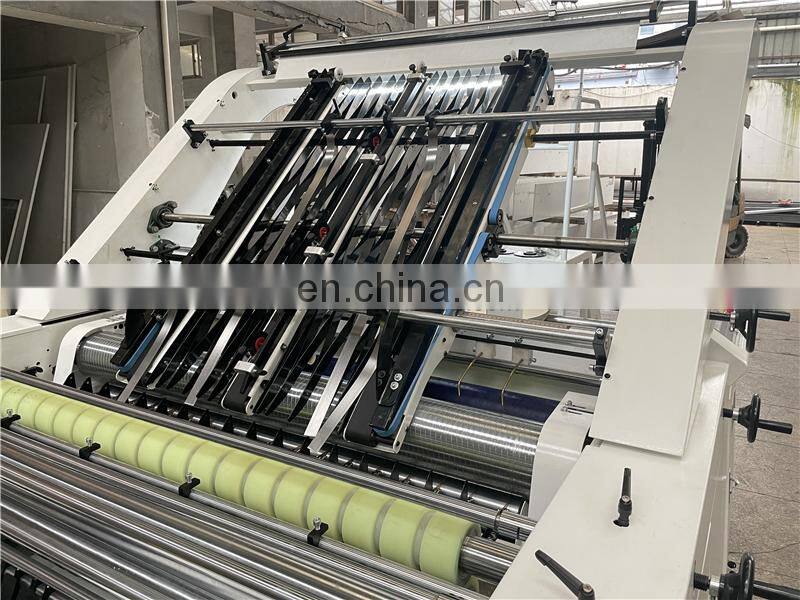

This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.
Characteristics:

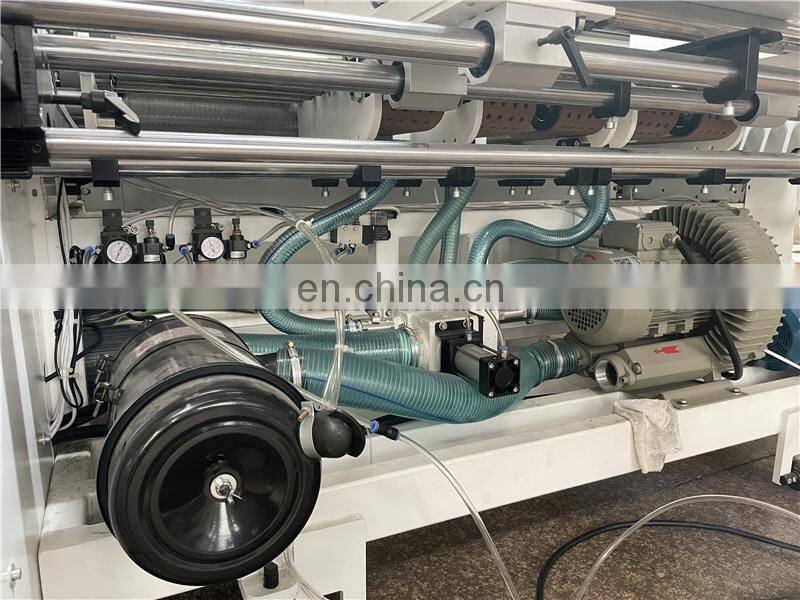

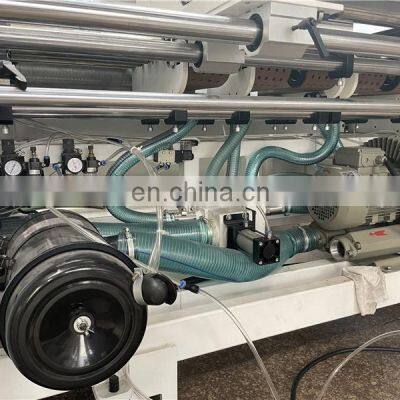

1, Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

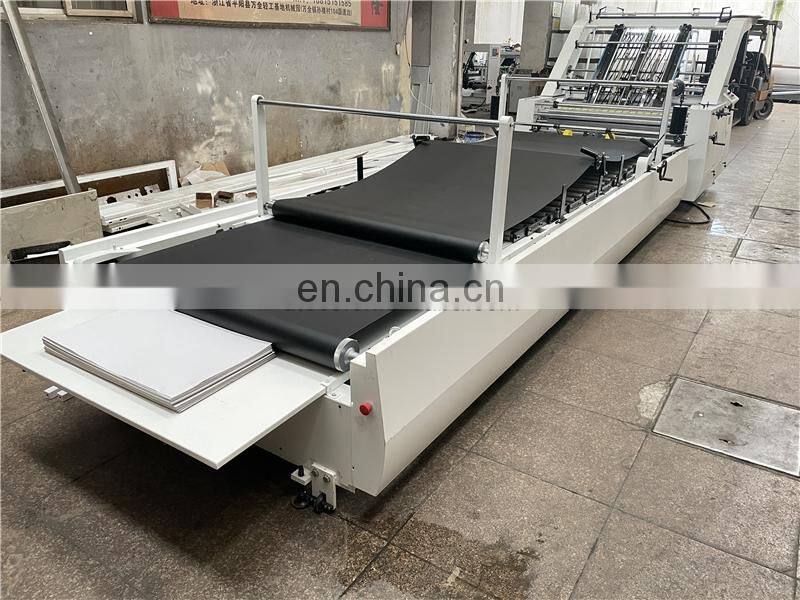

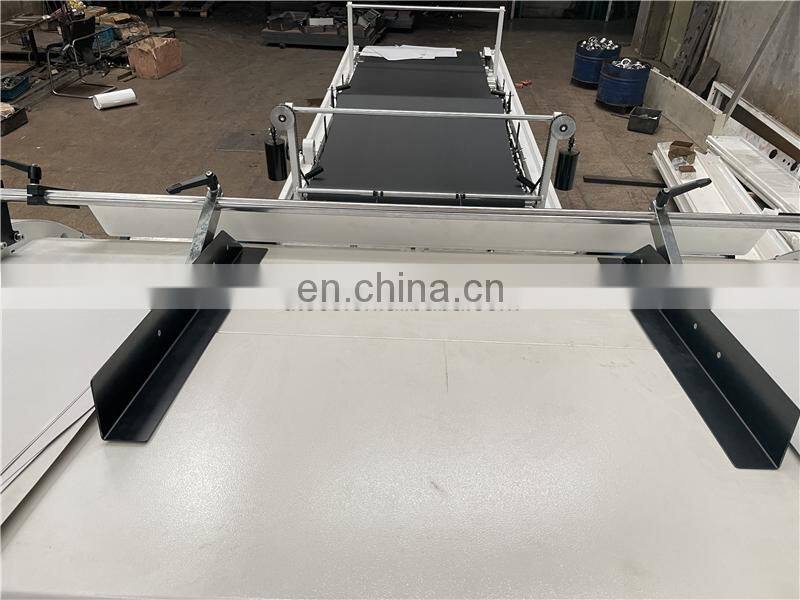

2,The humanized design that manually feeding from the front makes delivery more easier and efficient

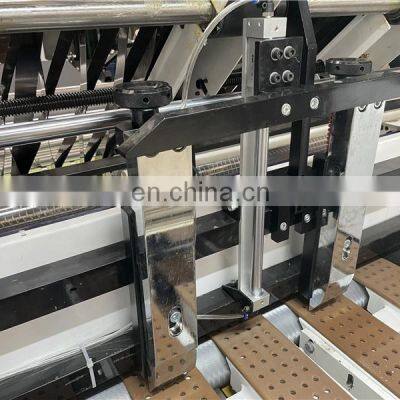

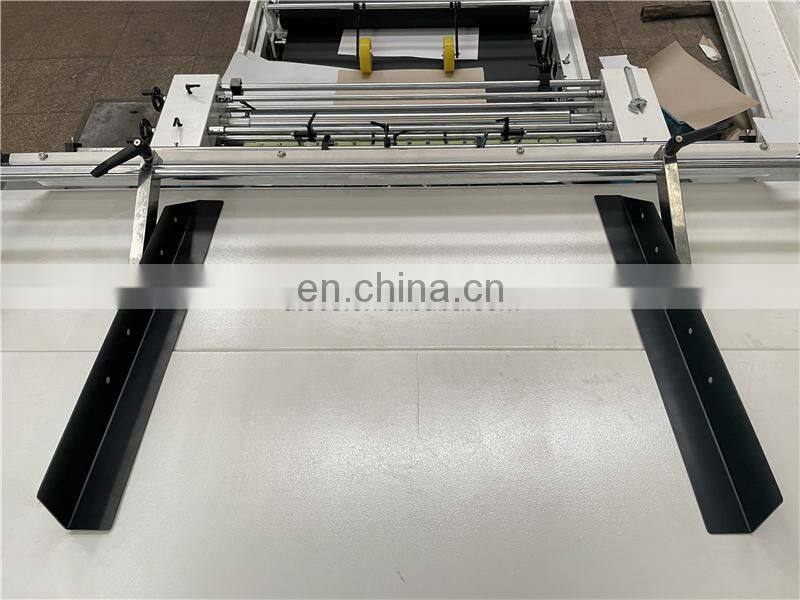

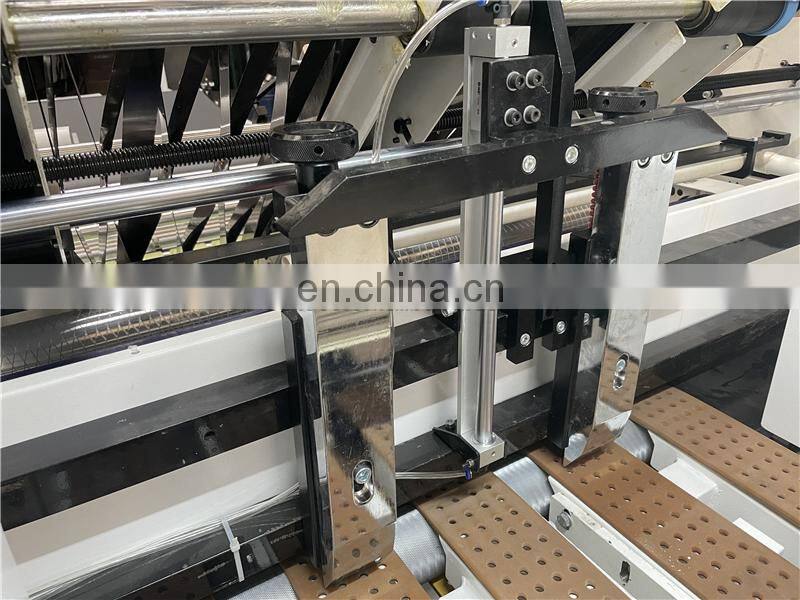

3,Entire new concept front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

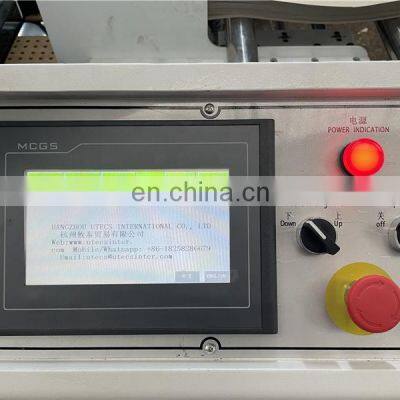

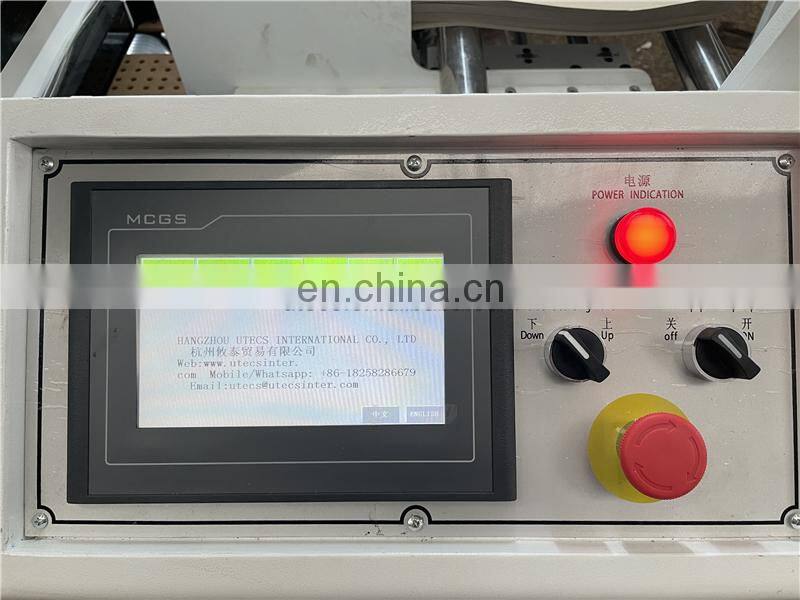

4,Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm

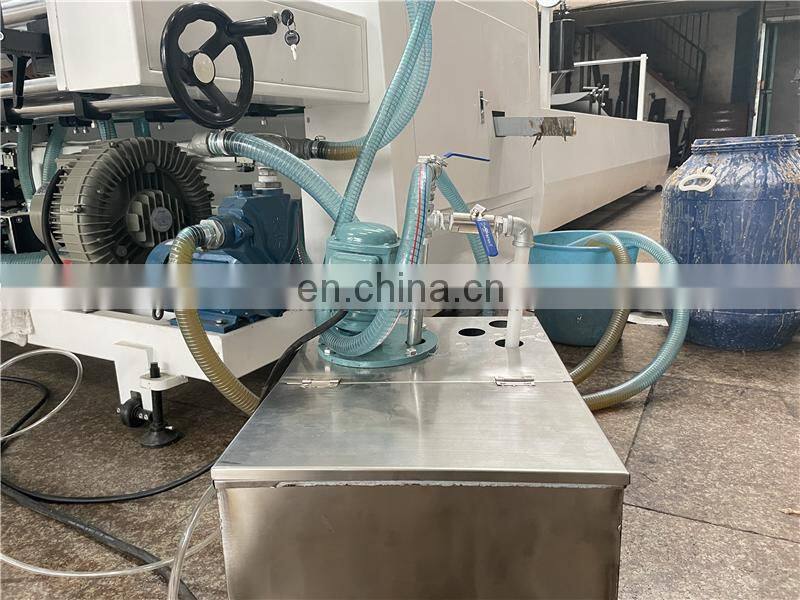

5,The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;
6, The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.
7, Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.
8, Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick
9,Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
10,Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating; Color top sheet 175-500g and grey cardboard paper laminating
Parameter:
|
Model |
Max Size |
Min Size |
Power |
Lamination Speed |
Top Sheet Weight |
Weight |
Machine Size |
|
BZ-1100B |
1100×1100mm |
400×400mm |
8.7kw |
0-153m/min |
120-500GSM |
3500kg |
7×1.7×1.8m |
|
BZ-1300B |
1300×1200mm |
400×400mm |
8.7kw |
0-153m /min |
120-500GSM |
4500kg |
7×1.9×1.8m |
|
BZ-1450B |
1450×1200mm |
400×400mm |
8.7kw |
0-153m/min |
120-500GSM |
5000kg |
7×2.0×1.8m |
|
Top Paper Sheet: 120-500GSM, Bottom Board: A/B/C/E/F Corrugated Carton Thickness less than 8mm |
|||||||
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Container Load and Transport
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
Mobile/Whatsapp/Wechat: +86-18258286679
Email: utecs@ , utecsinter@ , danielsuer@
Skype: danielsuer
Web:
