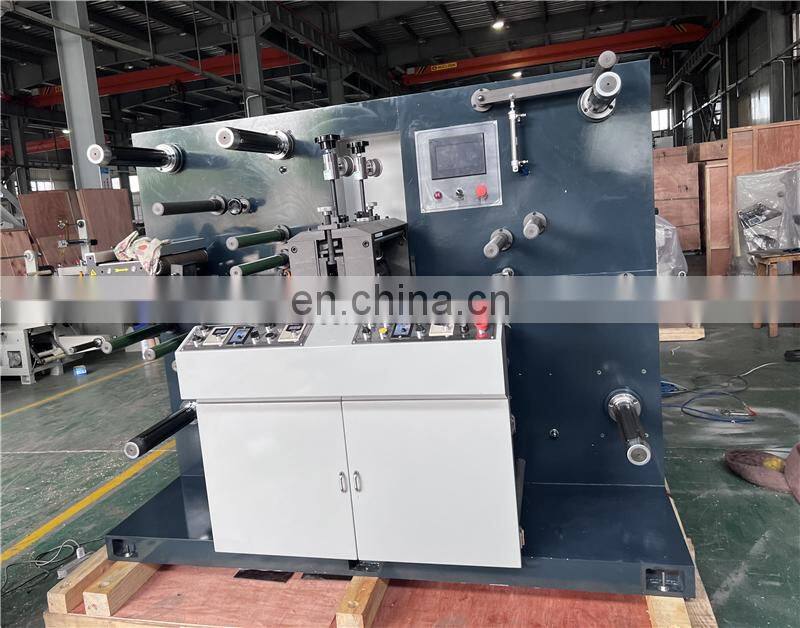

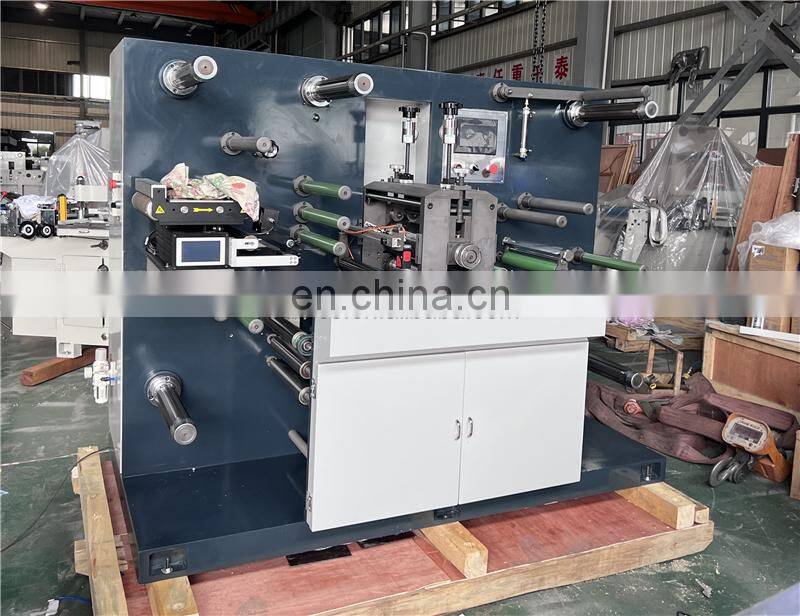

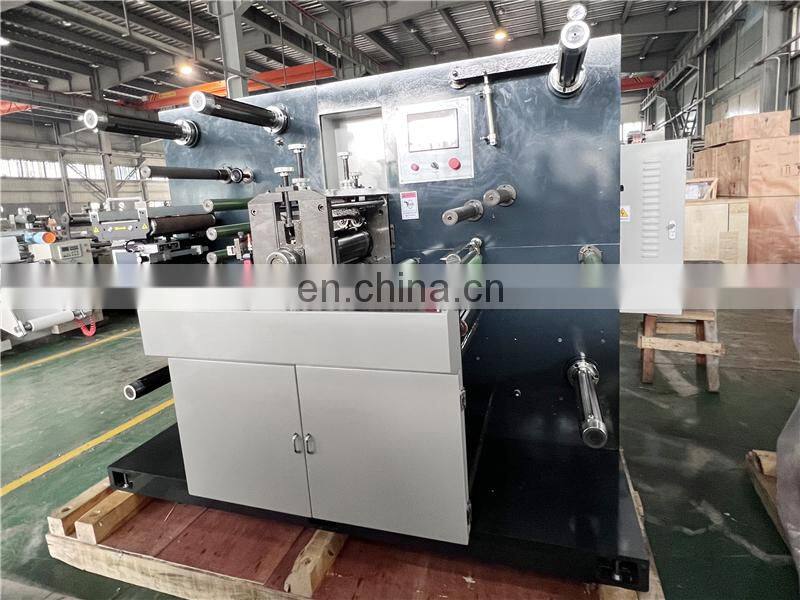

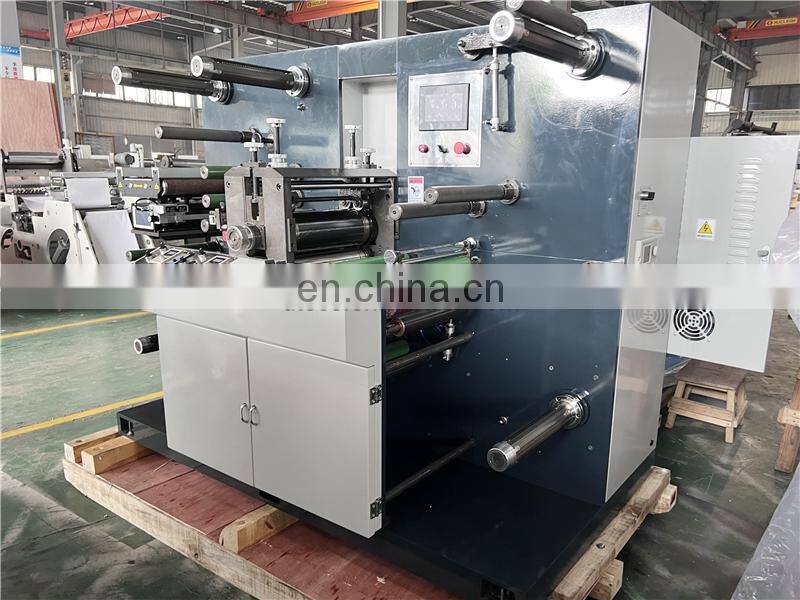

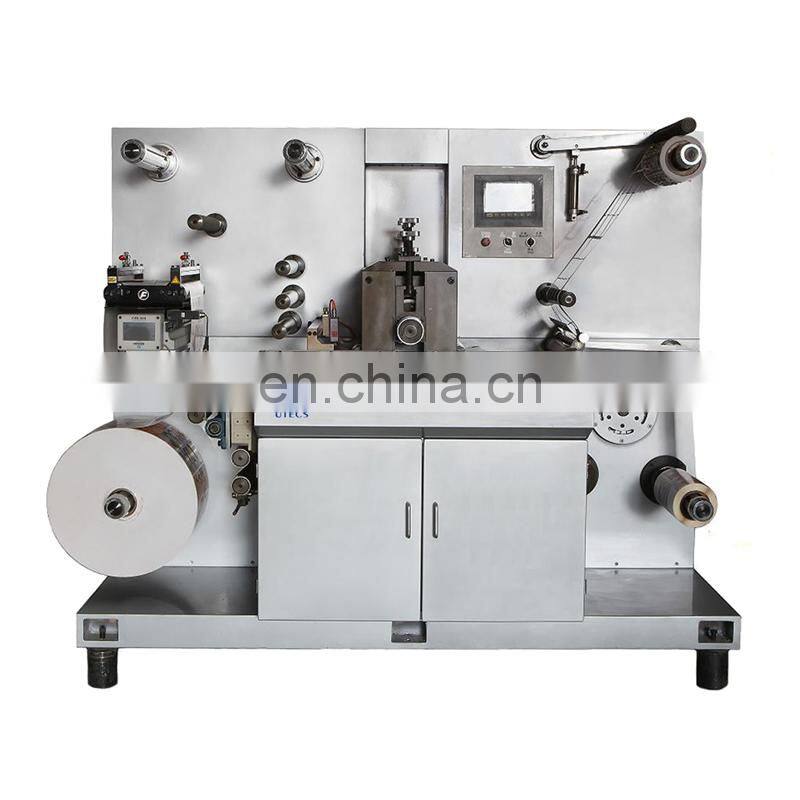

USK320S Automatic Intermittent Printed Label Semi Rotary Die Cutting Machine
Video demonstration only for reference
Video: /watch?v=xPtaIc1SYY4
Description:

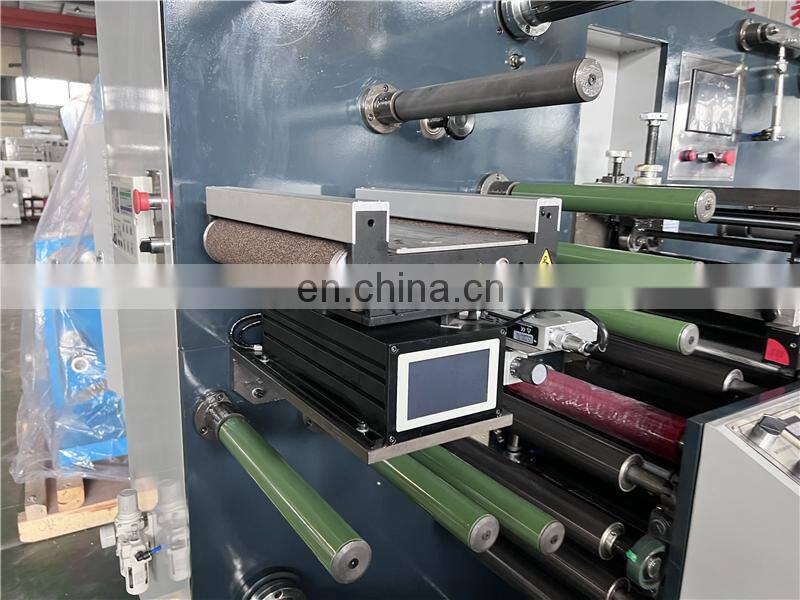

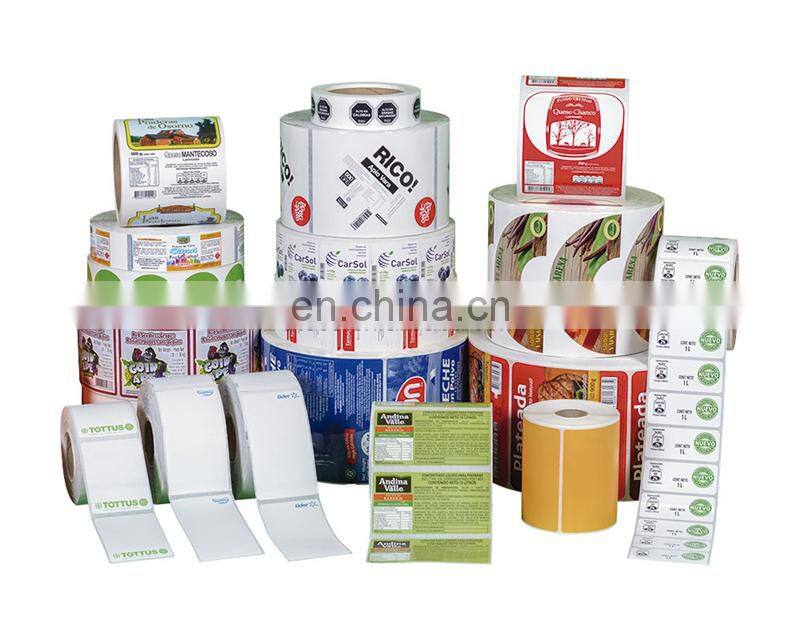

USK320S Semi-rotary die cutting and rewinding machine is equipped with Omron (Japan) motion control system, and register sensor to realize high accurate rotary die-cutting system. This machine is applicable to die cut pre-printed labels. Printed label unwinding, rotary die-cutting, slitting and rewinding can be finished in one pass. It can be run with semi-rotary mode as well as full rotary mode. With semi-rotary time, the machine doesn’t need to change different magnetic cylinders for different labels because it can go backward. Only flexible die is required to be changed. The machine was equiped high precision EPC web guiding system to make sure label pass smoothly. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running etc.
Features:

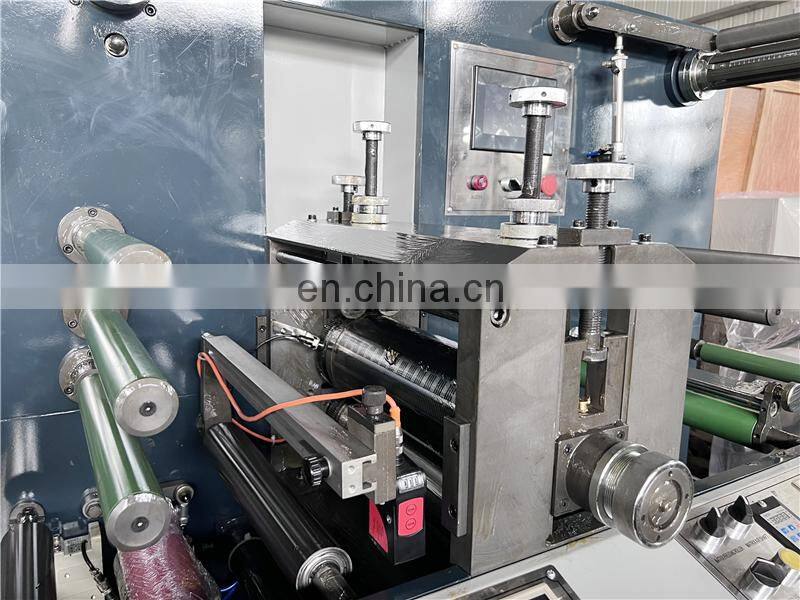

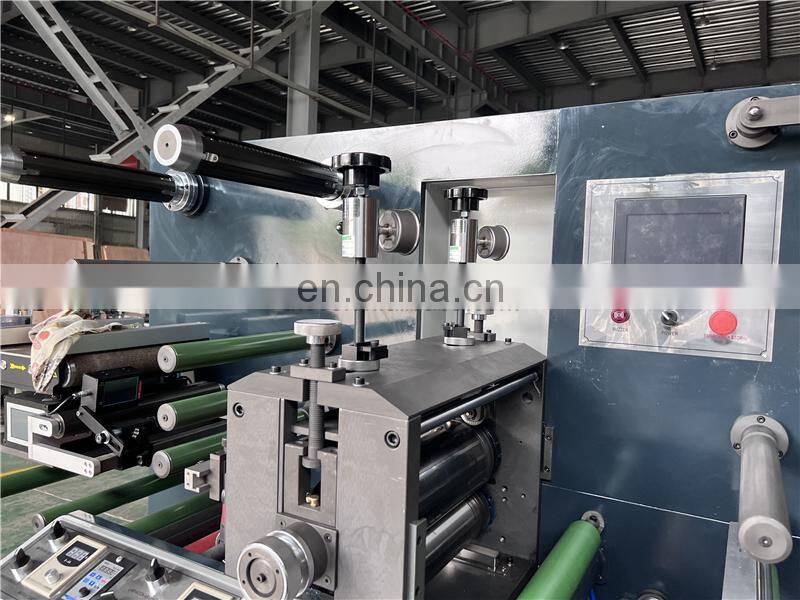

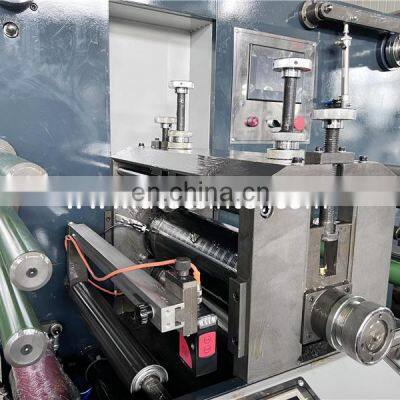

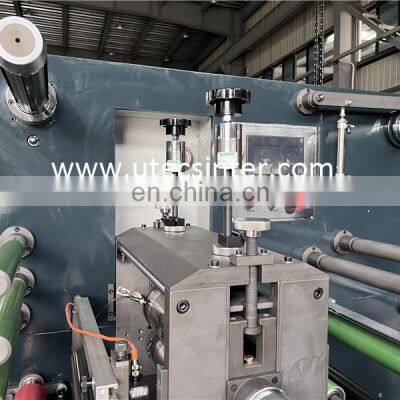

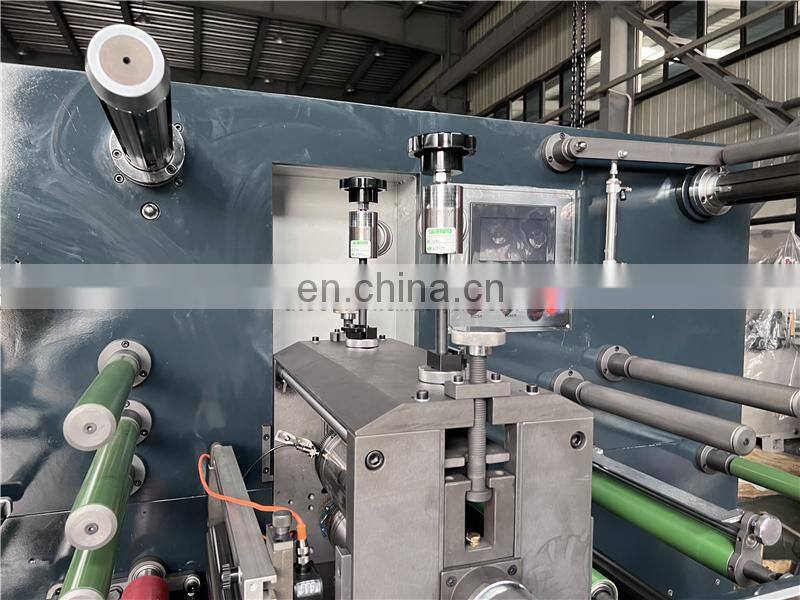

1, One Semi Rotary Die Cutting Station With Waste Rewinder Shaft
2, One Lamination station with waste rewind for over-lamination film with liner
3, Rewinding turret with 2pcs of 1.5’’ air shaft
4, 1pc 3’’ unwinding shaft with tension controller.
5, With meter/number counter.
6, With one printed register sensor
7, With 8 pcs rotary knife.
8, Machine has blower fan to blow away the trimmed sides.
9, EPC web guiding system, Servo motor
10, PLC controller and touch screen
Parameter:
|
Model |
USK320S |
|
Slitting speed |
120m/min |
|
Die cutting speed full rotary |
120m/min |
|
Die cutting speed Semi rotary |
70m/min |
|
Max web width |
320mm |
|
Max unwinding diameter |
600 mm |
|
Max rewinding diameter |
600 mm |
|
Die cutting length full rotary |
250mm-550m |
|
200mm-450mm |
|
|
Mini slitting width |
15mm |
|
Voltage |
380V, 3PH, 50H |
|
Power |
12KW |
|
Weight |
2500kgs |
|
Dimension |
2100*1500*1700mm |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
