Home > Products > coefficient of friction tester > COF Friction Coefficient Tester Plastic Packaging Sheet Film dynamic and static tester lab Test Equipment

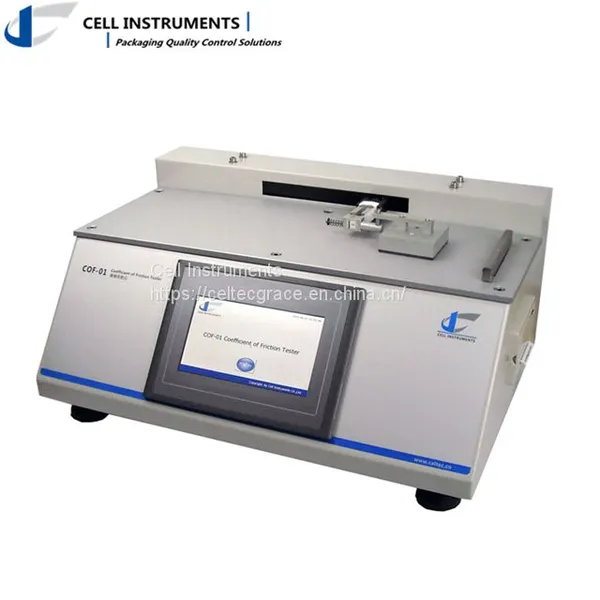

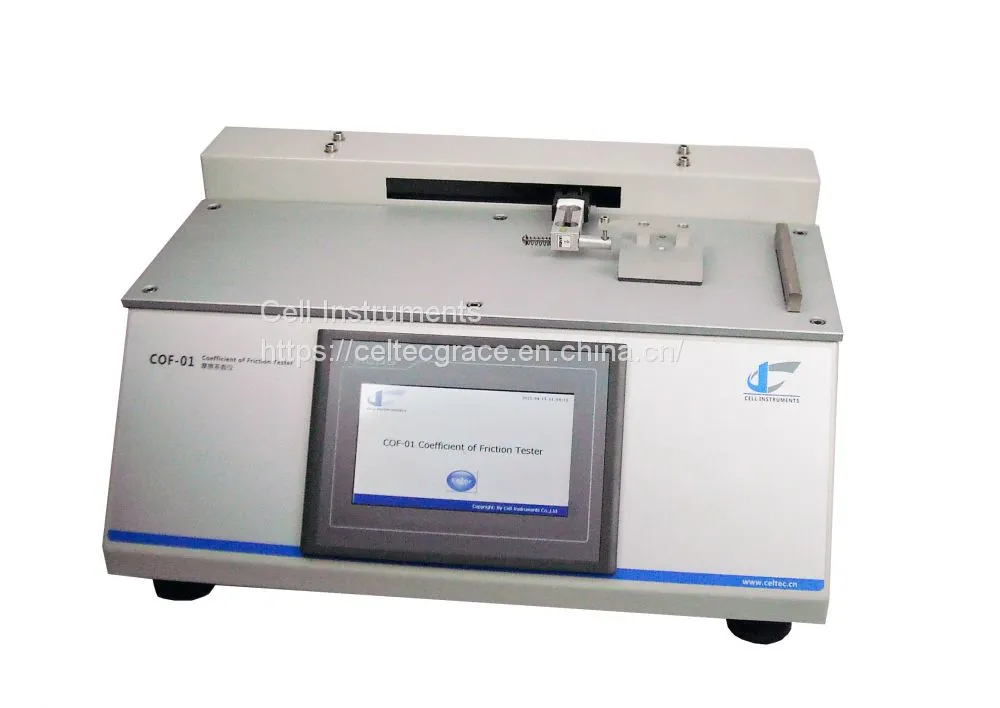

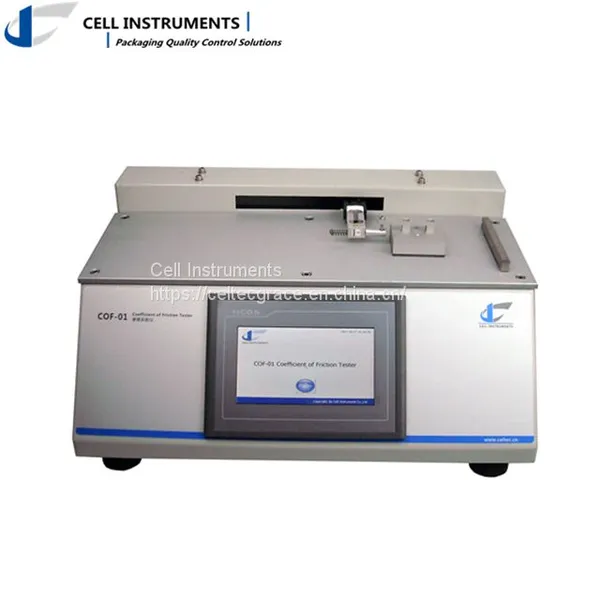

COF Friction Coefficient Tester Plastic Packaging Sheet Film dynamic and static tester lab Test Equipment
- 50 Piece / Pieces per Month
- Qingdao
- T/T L/C
- 5 days
- New Design Carton Board Mullen Burst Strength Tester ISO 2759
- Ink Rub Transfer Testing Machine Wet and Dry Abrasion ASTM D5264
- Box Compression Tester BCT tester Carton Compressive strength tester
- Peel Cling Teste of Stretch Wrap Film ASTM D 5458
- Beverage Bottle Thickness Tester Testing Equipment Wall Thickness Gauge
- Carbonating Drink CO2 Loss Rate Analyzer
Product Details
Brand Name: | Cell | Place of Origin: | China | Model Number: | cof01 |
Power: | Electronic | Usage: | Plastic Testing Machine |
Product Description
Static And Kinetic Friction Tester ( C.O.F ) test Principle

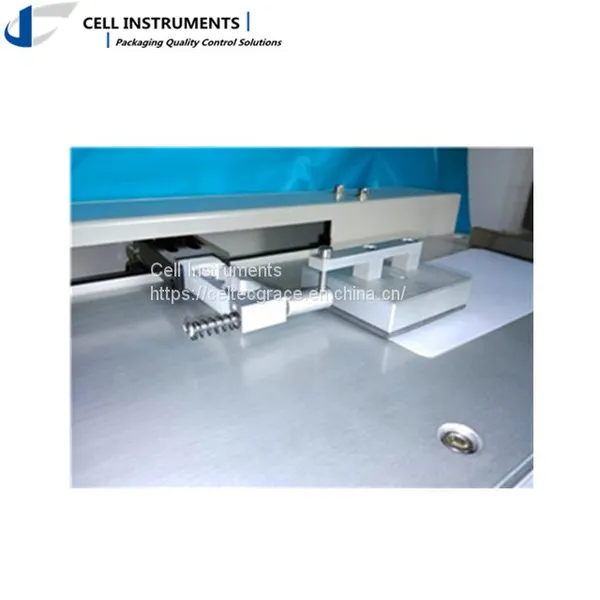

The two samples are placed together. A long strip sample is fixed on the flat surface and another squared sample is applied force by a sled. The friction force is measured when they slip against each other.
Standards
ASTM D1894, ISO 8295, TAPPI T816, GB 10006
Static And Kinetic Friction Tester ( C.O.F ) technical Features
PLC control and touch screen operation
Real-time display of test data, results, and curves
Both the static and kinetic coefficient of friction can be measured
In accordance with multiple international standards
Test results calculation, analysis, and curve superposition
RS232 output and professional software(optional)
Microprint of easy printing of test result
Technical Specification
Load Cell | 5 N |
Accuracy | 0.5 F.S. |
Stroke | As Required |
Sled | 200 g 63.5mm*63.5mm(Customization Available) |
Test Speed | 100mm/min (ISO), 150mm/min (ASTM) |
contact me
Email: grace@celtec.cn
WeChat/Tel: +86 15098899682
