Product Description
The chassis of wuling special purpose vehicle series is from SGMW, a joint venture by GM,Shanghai motors and Wuling motors, it sold 2 million units vehicle all over the world in year 2016 .
We have professional refit vehicle team, and can not only produce large quantities of assembly line products, but design and manufacture customized products according to customers.
| Item | LQG5029XLCPY | |
| Size | Dimension (mm) | 4705*1615*2370 |
| Box container(mm) | 2450*1415*1455 | |
| Wheelbase (mm) | 3050 | |
| Weight | Total weight(kg) | 2350 |
| Curb weight(kg) | 1530 | |
| Passenger Capacity | 2 | |
| Performance | Min Turning Diameter(m) | 11.9 |
| Overhang (F/R)(mm) | 540/1115 | |
| MIN.Clearance(mm) | 140 | |
| Max Speed(km) | 120 | |
| Engine | Displacement(ml) | 1485 |
| Model | L3C | |
| Rated Power(kw) | 79 | |
| Refrigerator | Cooling range | —10℃ |
| Fuel Consumption With The Regrigerator Closed(L/100km) | 7.5 | |
| Fuel Consumption When Refrigerating(L/100km) | 11.4 | |
| Transmission | Five Speed | |

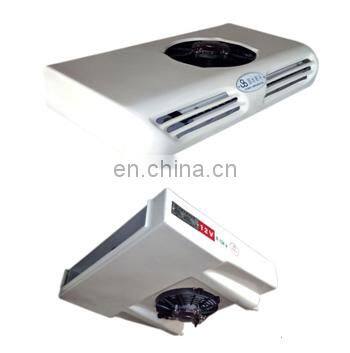

Refrigerating unit specifications:
| Item | WLQ5029XLCPY |
| Model | YX-260S |
| Reefer temperature range | -10℃~+20℃ |
| Refrigerating output(W) | 1500W(-10℃) |
| Driving mode | Driven by engine |
| Voltage DC(V) | 12V |
| Refrigerant | R404a |
| Reefer temperature adjusting | Electronic digit display |
| Safety device | High-low voltage switch safety protection |
| Defrosting mode | Manual/automatic defrosting |
Production line:

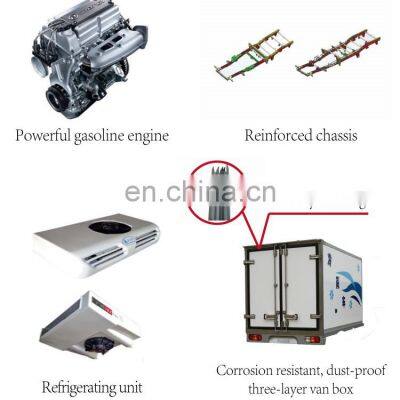

Key components:
1.WARRANTY
we will provide one year warranty for our truck main parts, such as Engine, Transmission, Axle and Steering system.
2. TECHNICAL SUPPORT
Our rich-experience technical teams are standing by all the time for our vehicle products.
The chassis of wuling special purpose vehicle series is from SGMW, a joint venture by GM,Shanghai motors and Wuling motors, it sold 2 million units vehicle all over the world in year 2005 .
