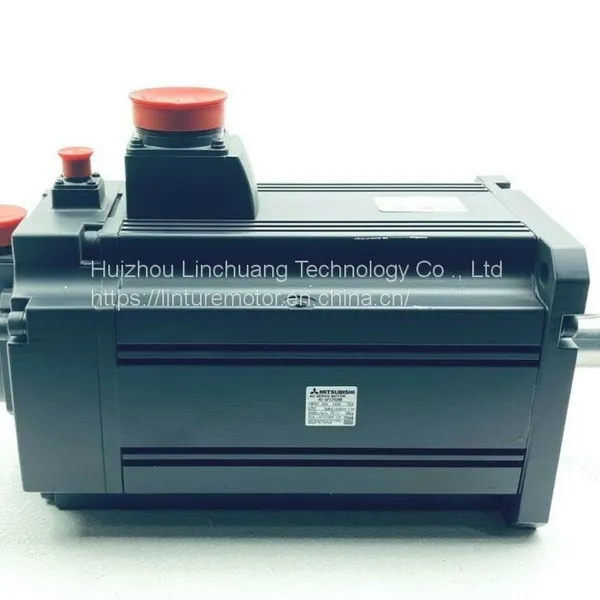

HC-SFS702BK Mitsubishi Industrial High Torque Electric Motors

HC-SFS702BK Mitsubishi Industrial High Torque Electric Motors thumbnail-1
HC-SFS702BK Mitsubishi Industrial High Torque Electric Motors photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Mitsubishi
Place of Origin:
Japan
Model Number:
HC-SFS702BK
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Bao'an international airport
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mitsubishi
Place of Origin Japan
Model Number HC-SFS702BK
Type Servo Motor
Certification CCC, CE
Usage Other, universal
Construction Permanent Magnet
Efficiency IE 3
Protect Feature Explosion-proof
Voltage(V) 144V
Output Power 7KW
Continuous Current(A) 35A
Speed(RPM) 2000R/MIN
Commutation Brushless
Category: Industiral Servo Motor Model: HC-SFS702BK
Brand: Mitsubishi Country Of Origin: Japan
OUTPUT: 7KW Weight: 36kg
High Light: ac servo motor,electric servo motor
Details of HC-SFS702BK / HC-SF702BK

  • Output:7 KW

  • Maximum torque:14.4 Nm

  • Rated Speed: 2000 1/min

  • Rated Current;35 A

  • Work with Servo Amplifier Model: MR-J2S-700A/B

  • Motor series: Medium inertia, medium capacity

  • Power Facility Capacity [kVA]: 10

  • Weight:32 Kg

  • AVAILABLE

  • REBUILT SURPLUS

  • NEW SURPLUS

  • REPAIR YOURS

  • 24-48 HOURS RUSH REPAIR

  • 2-15 DAYS REPAIR



Installation


The flange of the machine mounted with the HC-MF(HC-MF-UE)/HC-KF(HC-KF-UE)/HC-AQ/HC-
MFS/HC-KFS must be connected to the earth.
Performing EMC tests
When EMC tests are run on a machine/device into which the servo motor has been installed, it must
conform to the electromagnetic compatibility (immunity/emission) standards after it has satisfied the
operating environment/electrical equipment specifications.
For the other EMC directive guidelines on the servo motor, refer to the EMC Installation Guidelines



Application example:


1, material handling system.
2, industrial robots.
3, X-Y working table.


The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)


Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,


The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.
