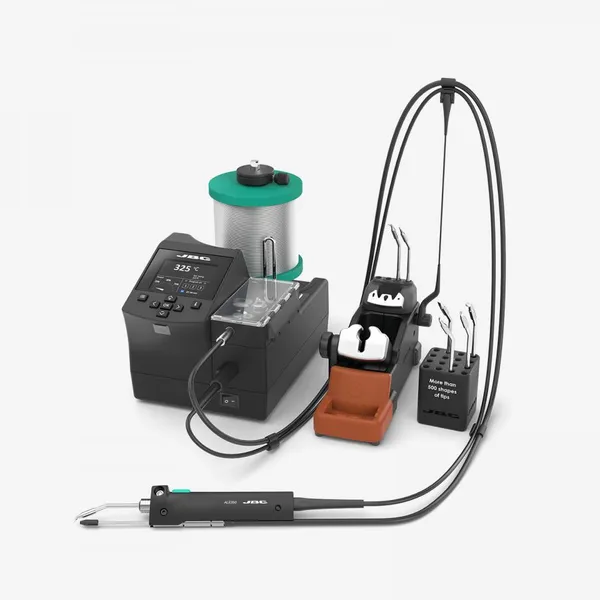

JBC DDSE-2QD Station 2-Tool Rework-Nishizaki Technology
CNY 1 - 5
MOQ: 1 Bag
Key Specifications
Get Latest Price
Place of Origin:
Afghanistan
Payment & Shipping
Payment Methods:
Port of Shipment:
CHENGDU
Delivery Detail:
72 days
Related Products
-
JBC CD-2BHQF Station Soldering-NishizakiUS$ 1 - 5MOQ: 1 Bag -
Mountz BLG-4000XBC1 Brushless Electric ScrewdriverNegotiableMOQ: 1 Set
-
Mountz FG-8i OWC Preset Torque Screwdriver With Blue LabelNegotiableMOQ: 1 Set
-
TECHNO POINT SOLDERING MACHINE TOP-375 TOP-375SP TOP-375SPHCNY 30000 - 50000MOQ: 1 Bag
-
JBC DDSE-2QD Station 2-Tool Rework-Nishizaki TechnologyCNY 1 - 5MOQ: 1 Bag
Place of Origin
Afghanistan
DDS Station
2-Tool Rework
This station is a complete solution to rework circuits with T245 General Purpose Handle and DR560 Desoldering Iron.
DDU Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, the intelligent Sleep & Hibernation Modes help to extend life of tips.
MSE Electric Desoldering Module generates the vacuum needed to remove the molten solder.
The station features all the Excellence Range benefits such as station customization, full control of soldering processes and remote work management.
T245 works with C245 Cartridge Range, the widest range of JBC. And DR560 with C560 Tip Range that offer instant heating-up, excellent heat transfer and great durability.
This station includes two stands with a complete cleaning system - a Tip Cleaner with brass wool, as well as, splashguard and antisplash membrane to keep the work area clean and free of solder particles. Quick Cartridge Changer enables a safe, easy and quick cartridge exchange which, combined with Cartridge Holder, allows you to store up to four cartridges. Also, the station includes a SCH Cartridge Holder to store up to 16 cartridges and tips nearby.
DDU Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, the intelligent Sleep & Hibernation Modes help to extend life of tips.
MSE Electric Desoldering Module generates the vacuum needed to remove the molten solder.
The station features all the Excellence Range benefits such as station customization, full control of soldering processes and remote work management.
T245 works with C245 Cartridge Range, the widest range of JBC. And DR560 with C560 Tip Range that offer instant heating-up, excellent heat transfer and great durability.
This station includes two stands with a complete cleaning system - a Tip Cleaner with brass wool, as well as, splashguard and antisplash membrane to keep the work area clean and free of solder particles. Quick Cartridge Changer enables a safe, easy and quick cartridge exchange which, combined with Cartridge Holder, allows you to store up to four cartridges. Also, the station includes a SCH Cartridge Holder to store up to 16 cartridges and tips nearby.
TRY IT!
REFERENCES
Equipped with Electric Pump:
DDSE-9QD
DDSE-2QD
DDSE-1QD
1
DDU 2-Tool Control Unit
1
MSE Electric Desoldering Module for DDU & DMU
1
T245 General Purpose Handle
(cartridge not included)
(cartridge not included)
1
DR560 Desoldering Iron
(C560003 already inserted)
(C560003 already inserted)
1
ADS Stand for T210 & T245 Handles
1
DRS Stand for DR560 Desoldering Iron
1
SCH Cartridge Holder
SPECIFICATIONS
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC (±3ºF)
Meets and exceed IPC J-STD-001F
Temp accuracy
±3% ( using reference cartridge)
Temp adjustment
±50ºC (±90ºF) Through station menu setting
Vacuum
75% / 570 mmHg / 22.4 inHg
Flow rate
9 SLPM
CONNECTIVITY
USB-B (rear)
Software PC / Traceability
USB-A (front)
Firmware update Soldering Graphics management
RJ12 Connector
ESD/EOS
Tip to ground vol./ resist.
Meets and exceed
ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak power
150 W per tool – 23.5 V
Operating temp. range
10 to 50 ºC / 50 to 122 ºF
DIMENSIONS AND WEIGHT
Premium Stations
232 x 148 x 120 mm / 9.25 kg.
9.13 x 5.83 x 4.72 in / 20.40 lb.
Package
525 x 318 x 347 mm / 10.39 kg.
20.67 x 12.52 x 13.66 in / 22.91 lb.
