HC-RFS103-S1 Industrial Mitsubishi Multiple Phase Current Motor

Huizhou Linchuang Technology Co ., Ltd
HC-RFS103-S1 Industrial Mitsubishi Multiple Phase Current Motor thumbnail-1
HC-RFS103-S1 Industrial Mitsubishi Multiple Phase Current Motor photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Mitsubishi
Place of Origin:
Japan
Model Number:
HC-RFS103-S1
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mitsubishi
Place of Origin Japan
Model Number HC-RFS103-S1
Type Servo Motor
Certification CCC, CE
Usage Other, universal
Construction Permanent Magnet
Efficiency IE 3
Protect Feature Drip-proof
Voltage(V) 129V
Output Power 1KW
Continuous Current(A) 6.5A
Speed(RPM) 3000R/MIN
Commutation Brushless
Category:Industiral Servo MotorModel 1.:HC-RFS103-S1
Power:1KwRated Current (A):6.1
Rated Rotation Speed:3000rpmBrand:Mitsubishi
High Light:ac servo motor,electric servo motor


MITSUBISHI Servo Motor HF-KP43JW04-S6 400W 0.4kW HFKP43JW04S6 AC MOTOR NEW



Description

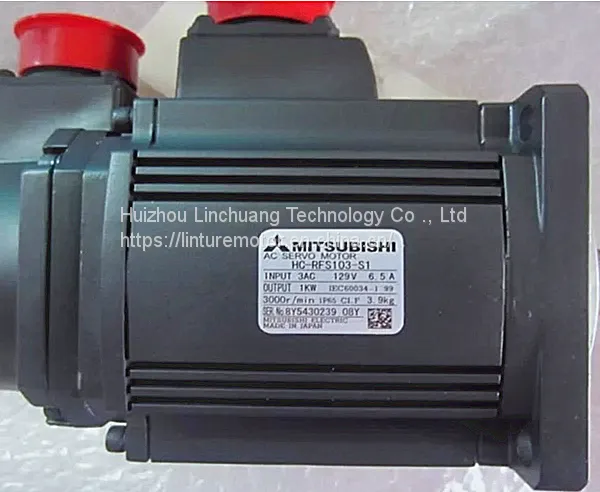

MITSUBISHI HC-RFS103-S1 1kW AC SERVO MOTOR
3 phase, 129V
Rated current (A): 6.1A
Maximum current (A): 18.4
Continuous Running Torque (N.m): 3.18 (450Oz-in)
Maximum torque (N.m): 7.95 (1126Oz-in)
Max Torque: 14.3N-m(2030Oz-in) (at servo side)
Continuous rated output: 1kW
Rated rotation speed: 3000rpm
Maximum rotation speed: 4500rpm
Weight: 3.9kg (8.6lb)
Encoder: 131072Pulse/rev
Recommended load/motor inertia ratio: Less than 15 times the servomotor's inertia moment

Motor Specifications:


Servo motor model

HC-MFS053

(B)

HC-MFS13

(B)

HC-MFS23

(B)

HC-MFS43

(B)

HC-MFS73

(B)

Servo amplifier modelMR-J2S-10A/BMR-J2S-10A/BMR-J2S-20A/BMR-J2S-40A/BMR-J2S-70A/B
Power facility capacity [kVA]0.30.30.50.91.3

Continuous

characteristics

Rated output50[W]100[W]200[W]400[W]750[W]
Rated torque0.16[Nm]0.32[Nm]0.64[Nm]1.3[Nm]2.4[Nm]
Maximum torque0.48[Nm]0.95[Nm]1.9[Nm]3.8[Nm]7.2[Nm]
Rated rotation speed [rpm]30003000300030003000
Maximum rotation speed45004500450045004500
Permissible instantaneous rotation speed

5175

[rpm]

5175

[rpm]

5175

[rpm]

5175

[rpm]

5175

[rpm]

Rated current0.85 [A]0.85 [A]1.5 [A]2.8 [A]5.1 [A]
Maximum current2.6 [A]2.6 [A]5.0 [A]9.0 [A]18 [A]
Weight [kg]0.40.530.991.453

Drive Specifications:


Common specifications MR-J2S-A/B

10A

10B

20A

20B

40A

40B

60A

60B

70A

70B

100A

100B

200A

200B

350A

350B

500A

500B

700A

700B

Power

supply

Voltage /

frequency

3-phase 200~230 V AC, 50/60 Hz;

1-phase 230 V AC, 50/60 Hz

3-phase 200 ~ 230 V AC, 50/60 Hz

Permissible voltage

fluctuation

3-phase 200~230 VAC: 170~253 VAC,

1-phase 230 V AC: 207 ~ 253 V AC

3-phase 170 ~ 253 V AC
Permissible frequency fluctuation±5%
Control systemSinusoidal PWM control / current control system
Dynamic brakeBuilt-in
Speed frequency response550 Hz or more
Protective functionsOvercurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servomotor overheat protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection.
StructureSelf-cooling, open (IP00)Fan-cooling, open (IP00)
EnvironmentAmbient temperatureOperation: 0 ~ 55 centigrade degree (no freezing), storage: -20~65 centigrade degree (no freezing)
Ambient humidityOperation: 90%RHmax. (no condensation), storage: 90%RHmax. (no condensation)
AtmosphereInside control panel; no corrossive gas, no flammable gas, no oil mist, no dust
Elevation1000mor less above sea level
Oscillation5.9m/s2 (0.6 G)max.
Weight [kg]0.70.71.11.11.71.72.02.04.97.2
Motor Dimensions:
ModelVariable dimensions
LKL
HC-KFS053(B)
HC-MFS053(B)
81.5 (3.21)
<109.5 (4.31)>
29.5 (1.16)
HC-KFS13(B)
HC-MFS13(B)
96.5 (3.80)
<124.5 (4.90)>
44.5 (1.75)




What is Details of Our Mitsubishi Parts?

  • All the Mitsubishi Parts are new and original with package.

  • Warranty time: 180 or 360 days.
