ACSR bare conductors high voltage acsr cables
- 5000000 Meter / Meters per Month
- Tianjin;qingdao
- T/T L/C
- 7 days
You May Like
-
ABC low voltage xlpe aluminium cable price 3 phase wire 4 core 16mm 50mm 185mm
-
1/3 core 30kv 35kv cu/al power cable
-
copper or aluminum conductor PVC SWA XLPE Low Voltage power cable 4 core 25mm2 underground armored cable
-
26/35kV 3x70mm2 Copper conductor steel tape Fire-retardent 3 core armoured cable
-
35kV 11kV 8.7/15kV Armoured Cable Underground Cables
-
0.6/1kV AL or Cu / XLPE / SWA /PVC Power Cable 35mm2 power cable
Product Details
| Brand Name | Hongliang power cable | Place of Origin | China | |
| Model Number | ACSR bare conductors high voltage acsr cables | Type | DC Power Cord | |
| Application | Instrumentation | Female End Type | IEC | |
| Male End Type | Other, CCC |
Product Description
ACSR bare conductors high voltage acsr cables
ACSR ferret conductor are used extensively for overhead ground wires, river crossing etc. These ACSR conductor are available with us in various types for meeting the exact requirements of clients. Used as bare overhead transmission cable and as primary and secondary distribution cable.
S/N. | Code Name | Construction | S/N. | Code Name | Construction | |
1 | MOLE | 6/1/1.50 | 12 | RACCOAN | 6/1/4.09 | |
2 | SQUIRREL | 6/1/2.11 | 13 | OTTER | 6/1/4.22 | |
3 | GOPHER | 6/1/2.36 | 14 | CAT | 6/1/4.50 | |
4 | WEASEL | 6/1/2.59 | 15 | HARE | 6/1/4.72 | |
5 | FOX | 6/1/2.79 | 16 | DOG | 6/4.72+7/1.57 | |
6 | FERRET | 6/1/3.00 | 17 | HYENA | 7/4.39+7/1.93 | |
7 | RABBIT | 6/1/3.35 | 18 | LEOPARD | 6/5.28+7/1.75 | |
8 | MINK | 6/1/3.66 | 19 | COYOTE | 26/2.54+7/1.91 | |
9 | SKUNK | 12/7/2.59 | 20 | TIGER | 30/7/2.36 | |
10 | BEAVER | 6/1/3.99 | 21 | WOLF | 30/7/2.59 | |
11 | HORSE | 12/7/2.79 | 22 | LYNX | 30/7/2.79 | |
Standard | BS 215(Part 2), NFC 34120, ASTM B232, AS1220, ,DIN48204,IEC61089 | |||||
Note:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) aluminimum conductor aluminimum alloy reinforced(ACAR)

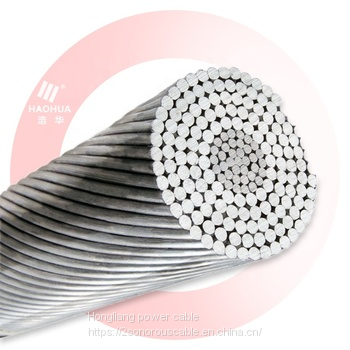

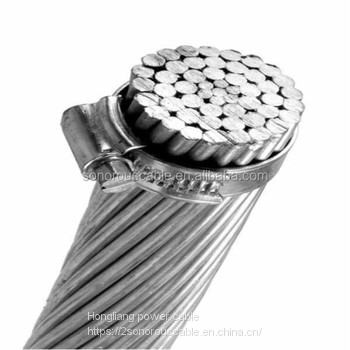

Picture of ACSR ferret conductor:
ACSR ferret conductor
Our company mainly produces (1-35 kV )Low and Medium Voltage cable, XLPE cable, PVC insulated power cable,Steel wire armoured cable, AAC cable, AAAC cable, ACSR cable,Control cable, Rubber cable,High temperature resistant cable, Overhead cable, Low smoke halogen-free cable.
Workshop:
Certification:
Ms. echo Wang
Cell phone/wechat/whatsapp: 0086 15106980528
Skype: hongliangcablesales7
E-mail: echo (at)
Welcome your inquiry of our ACSR ferret conductor ~ ~ ~
