TM-8812 Ultrasonic Thickness Tester Ultrasonic Thickness Measurement Thickness Gauge Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TM-8812 Ultrasonic Thickness Testing Ultrasonic Thickness Meter/Gauge Thickness MeasurementNegotiableMOQ: 1 -
TM-8812 Metal Thickness Tester Gauge Thickness ConversionNegotiableMOQ: 1
-
TM-8812 Plastic Gauge Thickness Meter Tester Steel Iron Thickness Gauge Magnetic Thickness GaugeNegotiableMOQ: 1
-
TM-8812 Ultrasonic Thickness Measurement Gauge Thickness Gauge Price PVC Pipe Thickness GaugeNegotiableMOQ: 1
-
TM-8812 Metal Thickness Tester/Metal Digital Thickness Gauge Digital Ultrasonic Thickness GaugeNegotiableMOQ: 1
Product Description

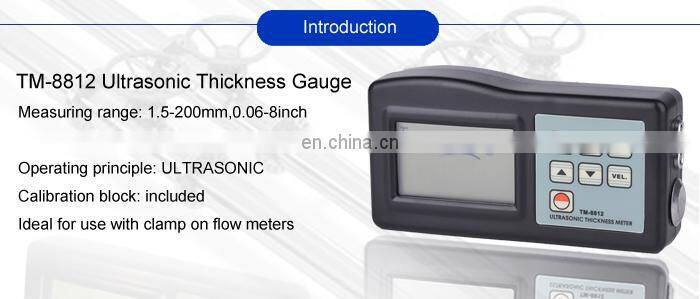

TM8812 ultrasonic thickness gauge is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
Specification
Model | TM-8812 Thickness Gauge |
Measuring range(Metric Imperial) | 1.0~225 mm 0.05~9 inch |
Operating principle | ULTRASONIC |
Sound velocity | 500~9000 m/s |
Lower limit steel pipes | Diameter 15 x2.0mm, Diameter 20 x3.0mm determined by the transducer |
Calibration block | Included |
Resolution | 0.1 mm |
Accuracy | ±(0.5%n+0.1) |
RS232C interface | With RS232C |
Power supply | 4 x1.5V AAA(UM-4) |
Battery indicator | Low battery indicator |
Operating conditions | 10~90% RH |
Details Images
Ultrasonic thickness meter’s Application
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.

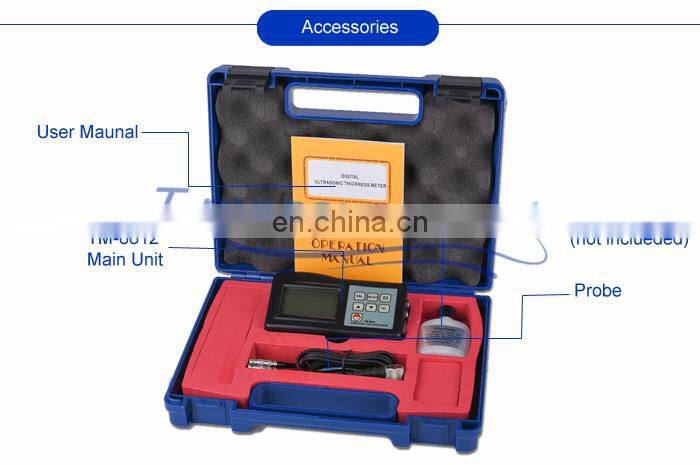

Standard delivery | Main unit | 1 |
5M Diameter 10 transducer | 1 | |
Instruction manual | 1 | |
Carrying case | B04 | |
Optional Accessories | 6M Diameter 6mm thin Material probe | Measuring range (steel) :1.0~50.0mm |
5M Diameter 12mm high Temperature probe | Measuring range (steel):1.0~ 225.0mm (normal temperature) Measuring range (steel):4.0~100.0mm (high temperature) | |
Cable & Software for RS232C interface | Available |
