Taijia Pulse Echo Integrity Test (Pit) Low Strain Impact Integrity Testing Of Piles ZBL-P8100

Name: Taijia Pulse Echo Integrity Test (Pit) Low Strain Impact Integrity Testing Of Piles ZBL-P8100
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

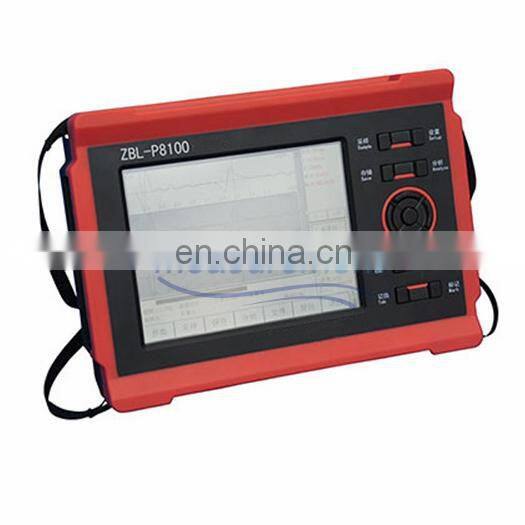

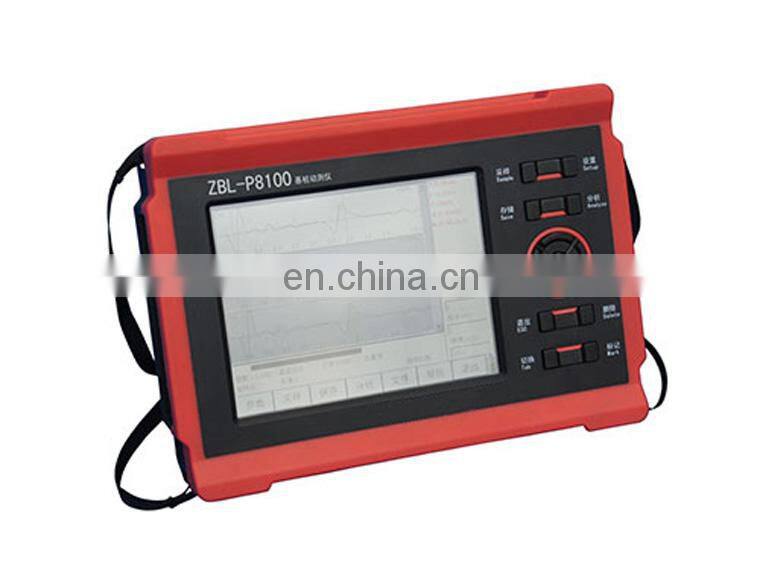

ZBL-P8100 Pile integrity tester

P8100 Foundation Pile Dynamic Detector is used to assess the integrality of concrete pile and identify the extent and location of the pile detect by using the reflected wave method.
It can be used for testing perfusion pile and hammer pile and also for testing the exposed top surface of constructions such pillars.
The ZBL-P8100 is pile integrity tester provided with 2 channels of data acquisition and can acquire data from an accelerometer or an instrumented hammer or from two accelerometers.

1.High fidelity system design, to ensure that the original waveform distortion
2.True 24 bi A/D data acquisition, the rest waveform is more real, to avoid the noise and signal distortion caused by large floating point amplification
3.1MHz high speed data acquisition, the minimum sampling time resolution of 1μs,can provide more useful information, more conducive to the discovery of shallow defects;
4.Double channel design, allows use the special detection method
5. A new processing method of wavelet analysis, can be more accurate in complex situations of pile integrity judgement
6. Double injection molding, beautiful appearance, small volume, light weight;
7. Waterproof casing, anti shock design, adapt to the harsh environment
8.Semi transparent, high brightness, TFT color LCD screen, more clearly in the sun

Details Images

Model	ZBL-P8100 Low Strain PIle Integruty Tester
Control model	AB Embedded platform
Data storage	>=4GB
Operation mode	Key+tough screen
Sentinel magnify( time )	1,2,5,10,20,50,100 adjustable
Max length of sampling	4096
Triggrer	Single triggrer
Noise voltage of system( mV)	<=1
Dynarnic range(dB)	>=184
Amplifier frequency range (Hz)	10~10K
Time value error	4096
Time resolving power(us)	<=10%
Gain error(dB)	<=1%
Work time(h)	>8
Number of channels	2
Interference between the channels	<=1%
Transducer/peobe sensitivity( Acceleration mode)( mv/g)	>=100
Frequency range of Probe (Acceleration mode)(Hz)	0.5~9000
Port	Double USB
Wi-fi	YES
Power	Internal	Built-in battery
		External	220VAC/DC
Operational environment	Temperature (℃）	-10~+50
		Humidity(RH)	<90%

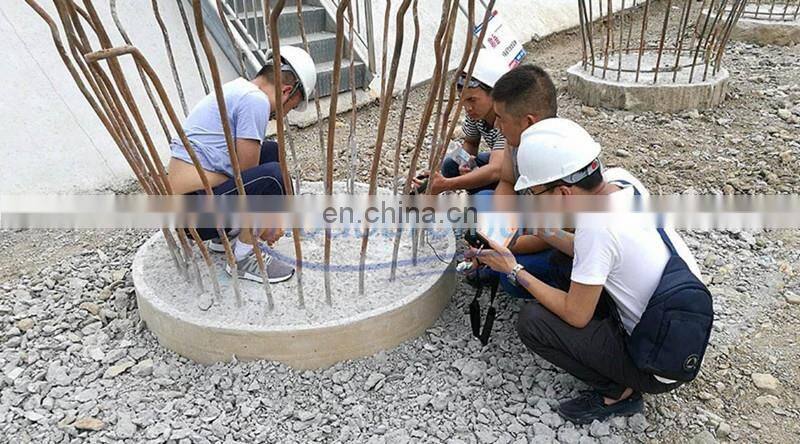

Application

Product packaging

Main Unit	*1 Unit

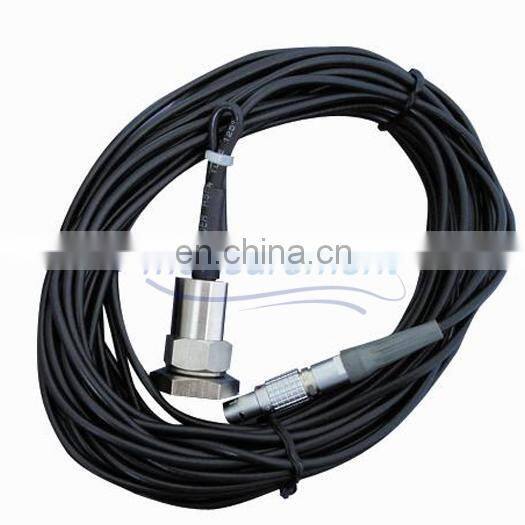

Sensor	*1 Unit

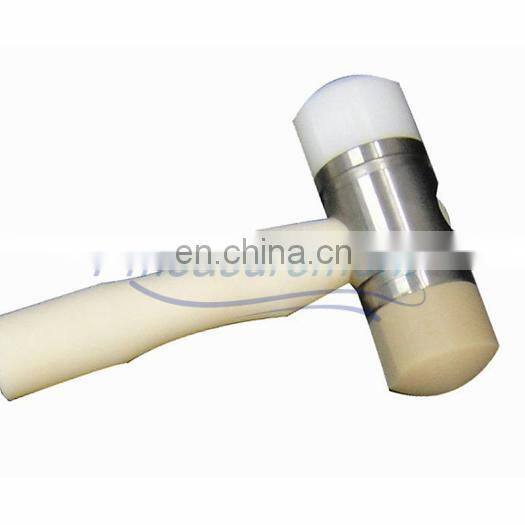

Handheld Hammer	*1 Unit

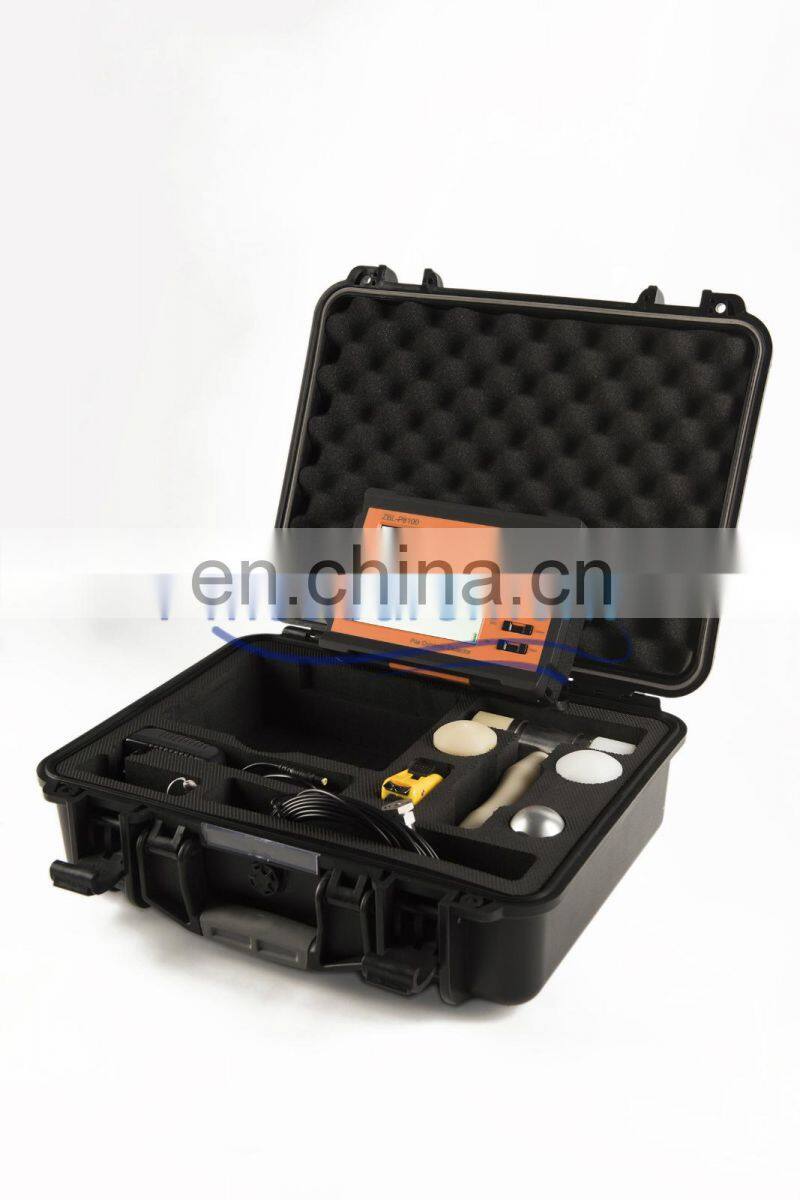

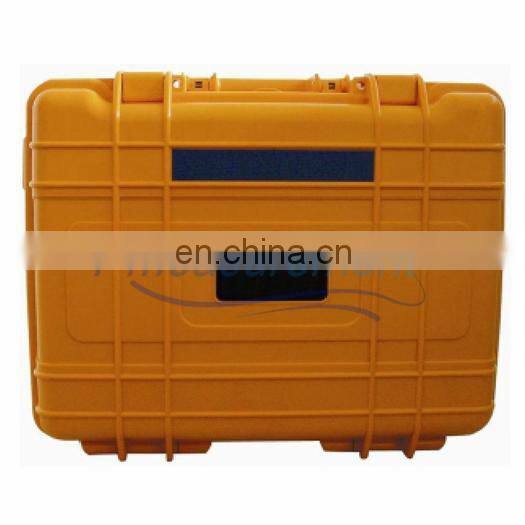

Carrying case	*1 Unit
User manual	*1 Unit

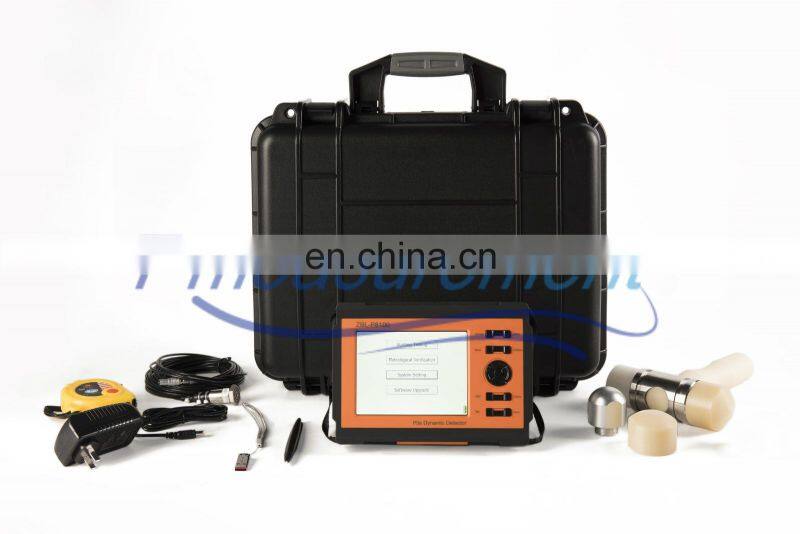

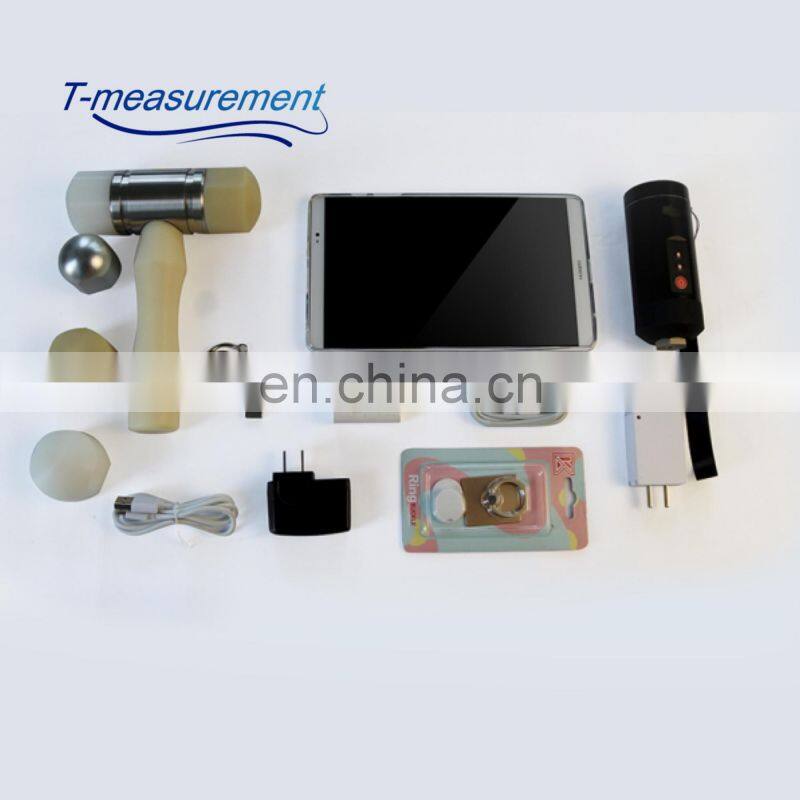

ZBL-P8000 Wirless Pile Integrity Testing.

By using the reflected wave method, the instrument is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing drilled piles and hammer piles. It can also be used for testing the exposed top surface of constructions such as pillars.

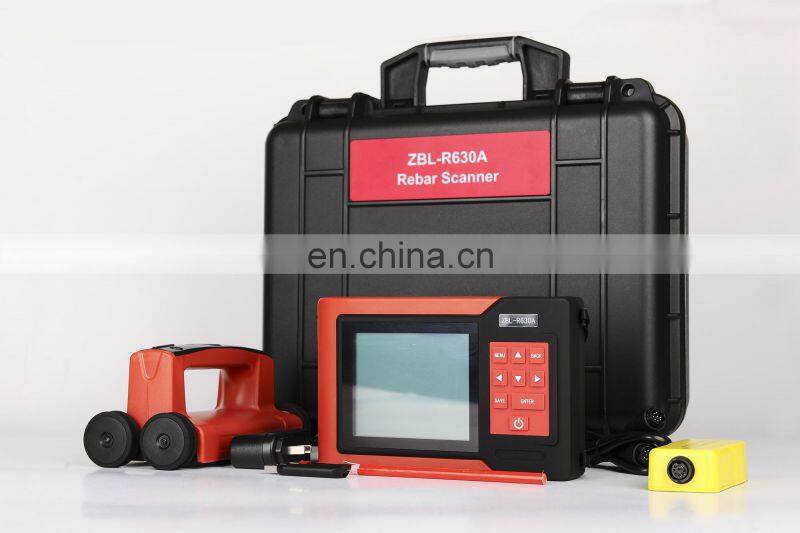

ZBL-R630A Rebar scanner

ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation,and distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magnetic and conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium

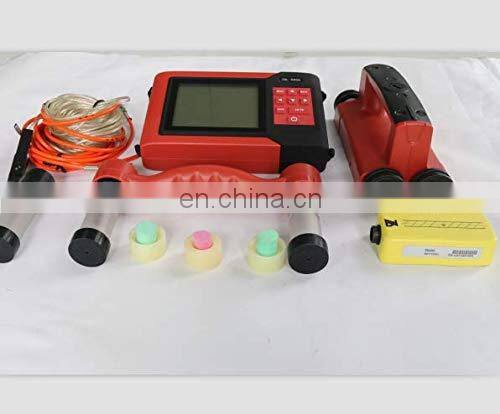

ZBL-R800 Multifuncational Rebar detector

ZBL-R800 is a multi-functional rebar detector equipment for both measure rebar direction , rebar size , the degree of reinforcement rust rate and testing the thickness of proective layers( concrete thickness measurement) in concrete construction using non destructive testing method.

Trade terms

1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
