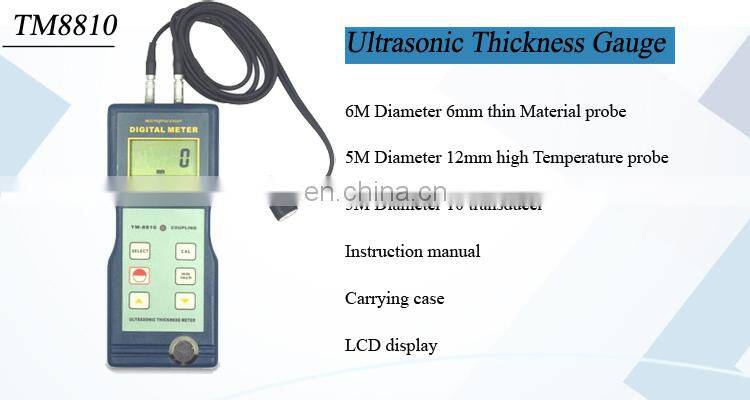

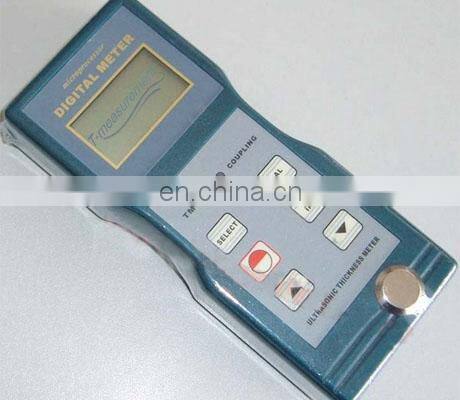

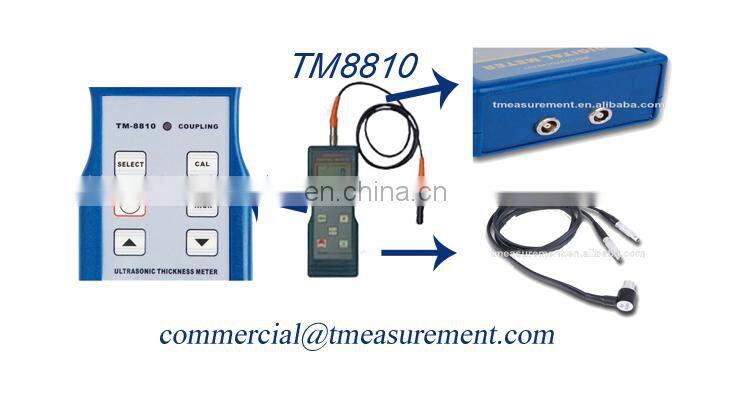

TM-8810 Ultrasonic Plastic Thickness Gauge Thickness Meter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Used for measuring thickness and corrosion of pressure vessels, chemical equipment,boilers,oil storage tanks, ect. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Graty cast iron, Nodular cast iron.

Specification

Model	TM-8810
Measuring range(Metric Imperial)	1.2~200 mm 0.06~8 inch
Operating principle	ULTRASONIC
Materials measured	Only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC , gray cast iron , nodular cast iron
Lower limit steel pipes	Diameter 15 x2.0mm, Diameter 20 x3.0mm determined by the transducer
Calibration block	Included
Resolution	0.1 mm
Accuracy	±(0.5%n+0.1)
Power supply	4 x1.5 AA (UM-3) Battery
Battery indicator	Low battery indicator
Operating conditions	10~90% RH
Weight	208g(not including battery)

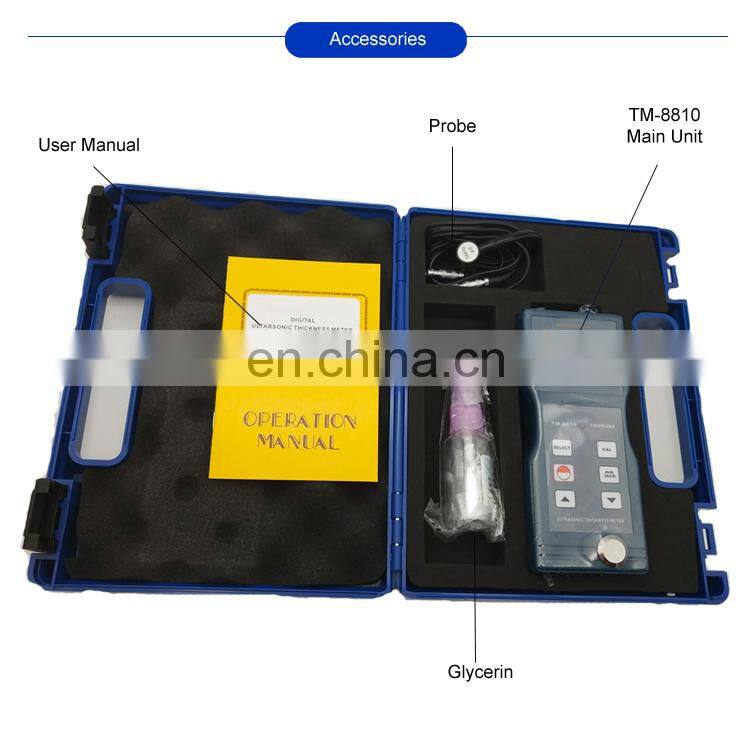

Main unit	1
5M Diameter 10 transducer	1
Instruction manual	1
Carrying case	B01

Features

1.With high power of emission and broad band of receiving sensiticity, the gauge can match probes of different frequencies.That makes it easy to measure the rough surface,even cast iron.It is widely used in almost all kinds of industries. 2.Automatic memory material code and sound velocity value, convenient to use. 3.Coupling symbol indication when measuring. Manual or automatic power off.
