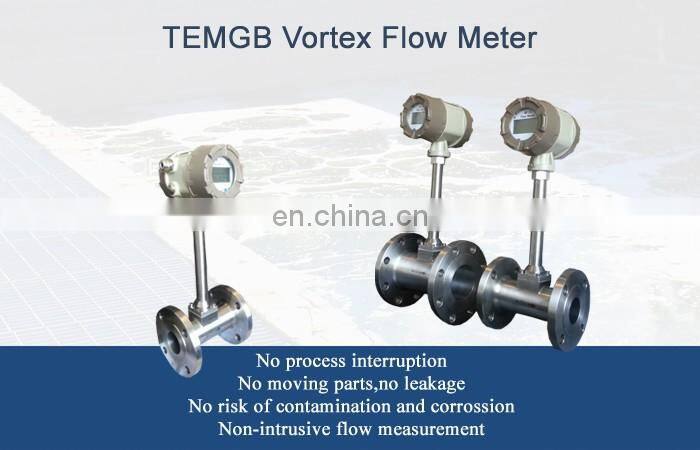

Vortex flow meter

Model

TEMGB

Application range

(1)Gas; (2)Liquid; (3)Steam

Pipe size

DN15-DN300

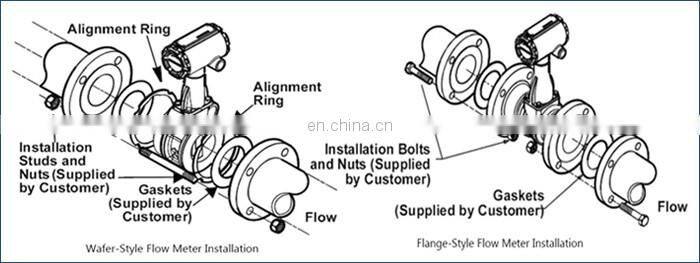

Connection

Flange or Wafer connection

Measured Value

Flow Rate, Volume flow

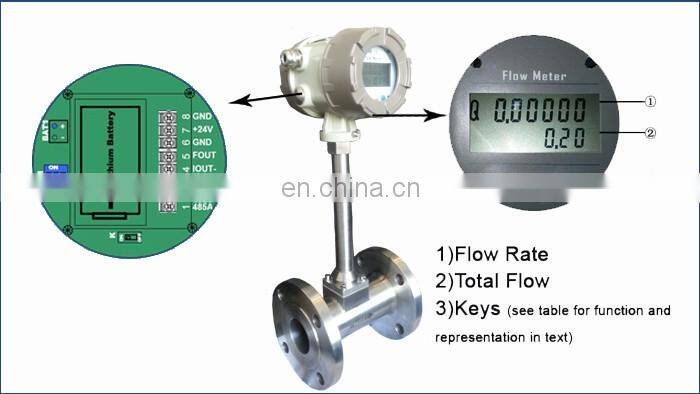

Compact version converter

N Type: Pulse output without local display

A Type: 4-20mA Output without local display

B Type: Local Display; Lithium Battery Power;
No Output (Battery Part No.: ER26500)

C Type:Local Display; 24VDC Power;

4-20mA Output;

Optional Function:
(1)    Backup Power Supply: Lithium Battery
(2)    Modbus RS485
(3)    Pulse Output

Accuracy

For Liquid:1.0% of rate For Gas and Steam:1.5% of rate

Pressure

1bar/14.5 psig

Temperature

+10...+30°C/+50...+86°F

Electrical conductivity

≥300μS/cm

Measurement Ratio

Standard–10:1

Flange material

SS304

Sensor material

SS304

Converter Housing

Standard: polyurethane coated die-cast aluminum

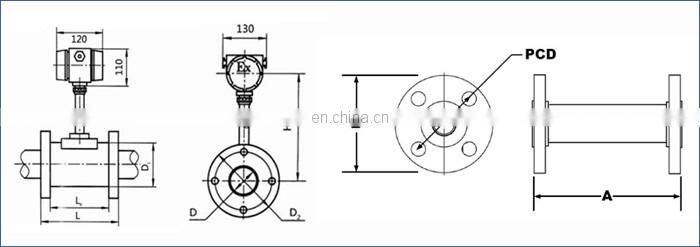

DN

L(mm)

H(mm)

D(mm)

Clamp

Type

Flange

Type

Clamp

Type

Flange

Type

Clamp

Type

Flange

Type

DN15

70

180

335

240

15

15

DN20

70

180

335

240

20

20

DN25

70

200

335

240

25

25

DN40

70

200

335

247

40

40

DN50

80

200

335

252

50

50

DN65

80

200

345

260

65

65

DN80

100

200

355

268

80

80

DN100

120

235

365

280

100

100

DN125

140

270

382

290

125

125

DN150

160

300

395

305

150

150

DN200

360

332

200

DN250

400

355

250

DN300

400

380

300

Normal size

(mm)

Flow Range(m3/h)

Liquid

Gas

Steam

DN15

0.8~12

7.2~60

12~120

DN20

2~30

18-180

30~300

DN25

3~45

20-300

50~500

DN40

6.5~84

54~540

84~840

DN50

10~130

70~700

120~1200

DN65

20~200

120~1200

200~2000

DN80

32~320

200~2000

320~3200

DN100

45~450

240~2400

440~4400

DN125

90~900

480~4800

800~8000

DN150

12~1200

740~7400

1200~12000

DN200

15~1500

1000~10000

1780~17800
