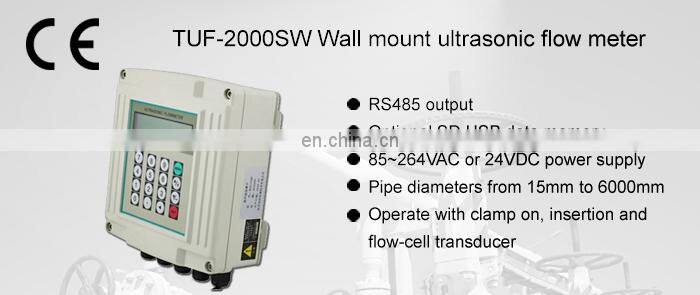

Taijia Low Cost Ultrasonic Flow Meter Rs485 Output Prices Water Meter Flow Meters TUF-2000SW
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Taijia Portable Ultrasonic Water Flow Meter Types Price Portable Flow Meter Ultrasonic Flowmeter
-
Taijia Clamp on Ultrasonic Liquid Controls Flow Meter for Large Diameter Pipe Flow Meter for Water
-
Taijia Rs485 Output TM-1 & CT-100 Temperature Industrial Flow Meter Meter Ultrasonic Smart Water Flow Meter
-
Taijia TUF-2000SW Industrial Clamp on Water Flow Meter High Temperature Wall Mounted Ultrasonic Flow Meter
-
Taijia RS485 Output Water Flow Meter Prices Ultrasonic Portable Water Flow Meter
-
Taijia Rs485 Ultrasonic Flow Meter Water Sensor Ultrasonic Flow Meter Flowmeter China
Product Description
Product Description
Specification
TUF-2000SW Fixed ultrasonic water flowmeters | ||||||
Principle | Transit-time ultrasonic flowmeter | Power Supply | DC8-36V or AC85-264V(Optional) | |||
Accuracy | ±1% | Power Consumption | 1.5W | |||
Display | 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish | Dimension | 132*150*85mm(convertor) | |||
Pipe material | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed | Data Interface | Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS. | |||
Pipe diameter | 25-6000mm | Special Cable | Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m | |||
Straight pipe | Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump. | Pipe material | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed | |||

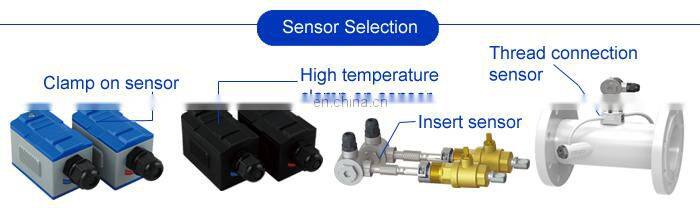

Sensor Option
Sensor Options for wall mounted ultrasonic flow meter
Insertion sensor
Thread connections sensor
Clamp on sensor
Sensor Types | Spec. | Model | Measurement Range | Temperature |
Clamp on | Small size | TS-2 | DN25-DN100 | -30-90℃ |
Medium Size | TM-1 | DN50-DN700 | -30-90℃ | |
Large size | TL-1 | DN300-DN6000 | -30-90℃ | |
High temp clam on | Small size | TS-2-HT | DN25-DN100 | -30-160℃ |
Medium Size | TM-1-HT | DN50-DN700 | -30-160℃ | |
Large Size | TL-1-HT | DN300-DN6000 | -30-160℃ | |
Insertion | Standard | TC-1 | DN80-DN6000 | -30-160℃ |
Lengthen | TC-2 | DN80-DN6000 | -30-160℃ | |
πType(SUS304 thread connection) | G1 | DN15-DN32 | -30-160℃ | |
Pipe | Standard(Carbon steel thread connection) | G2 | DN40-DN1000 | -30-160℃ |
Features

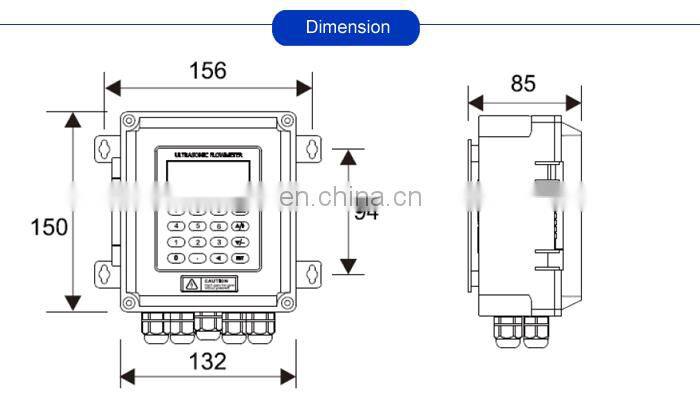

Dimensions
Wall mounted type ultrasonic flow meter
Title goes here.
TUF2000B wall mounted Fixed ultrasonic flow meter can be added SD card the price will be added

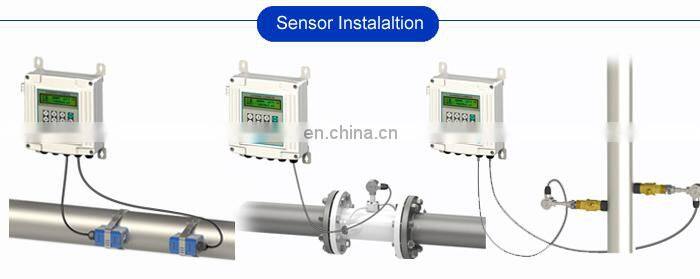

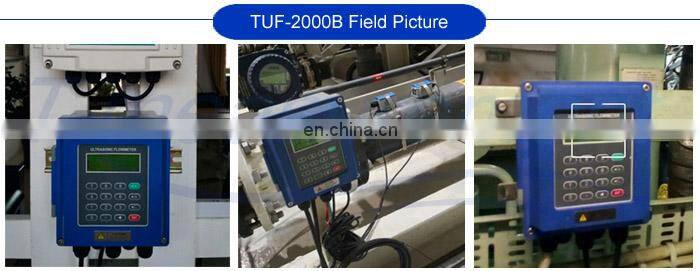

Installation method for TUF-2000SW Fixed stationary type ultrasonic flow meter
TUF2000SW wall mounted ultrasonic flowmeter can work with temperature sensor CT10 , used as ultrasonic engergy meter, and it also can work with clamp on sensor and thread connection sensor & insertion sensor.
Packing & Delivery
Accessories
1.5m×2 Transducer Cable for sensor
2. Clamp Fixture
3. Spare Connectors
Company Profie
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, hand held ultrasonic flow meter, portable ultrasonic flow meter, wall mounted ultrasonic flow meter, fixed ultrasonic flow meter; electromagnetic flow meter, insertion flow meter, vortex flow meter, gas flow meter, rotameter, turbine flow meter, thermal mass flow meter. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
Recommend Products

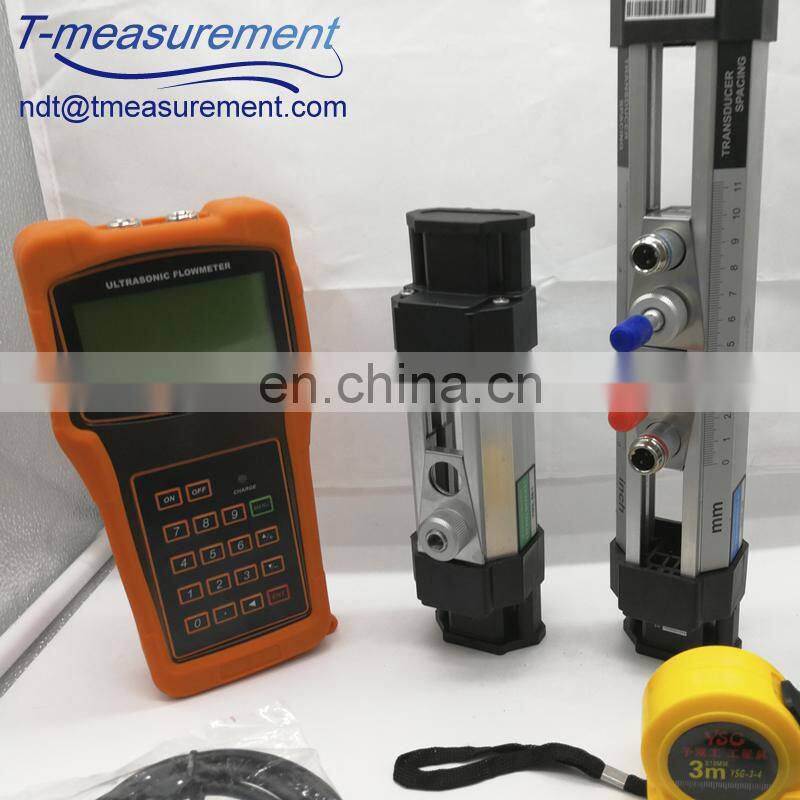

TUF-2000H Hand held ultrasonic flow meter
TUF2000H hand held ultrasonic flow meter is a battery power ultrasonic flow meter ,the capability of a full size flow meter. it is carefully designed for portability and easy for use .
TUF2000M Modular ultrasonic flowmeter
The TUF-2000M modular ultrasonic flow meter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter.

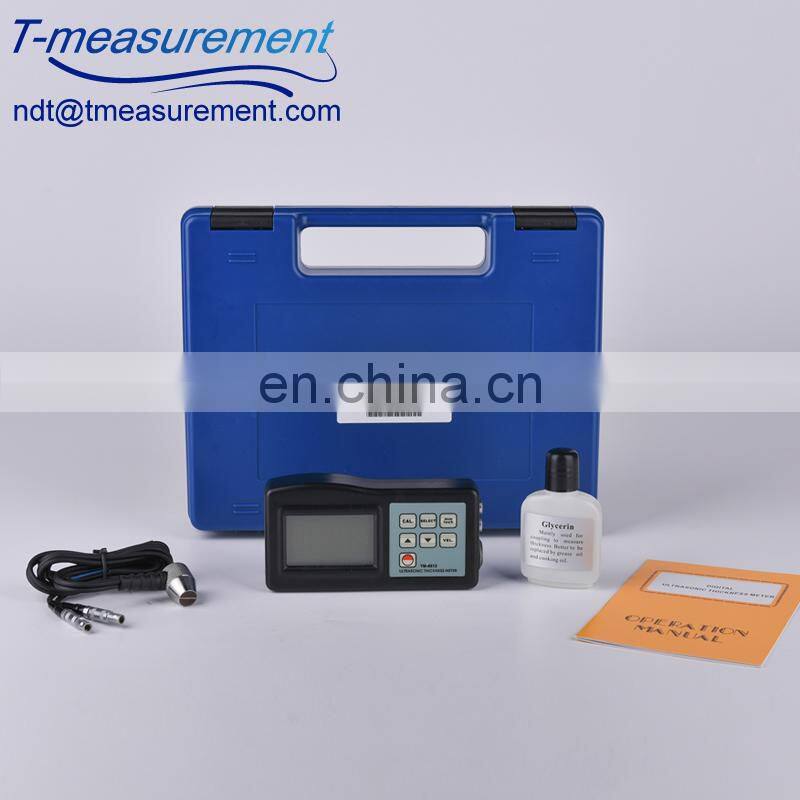

TM8812 Ultrasonic thickness gauge

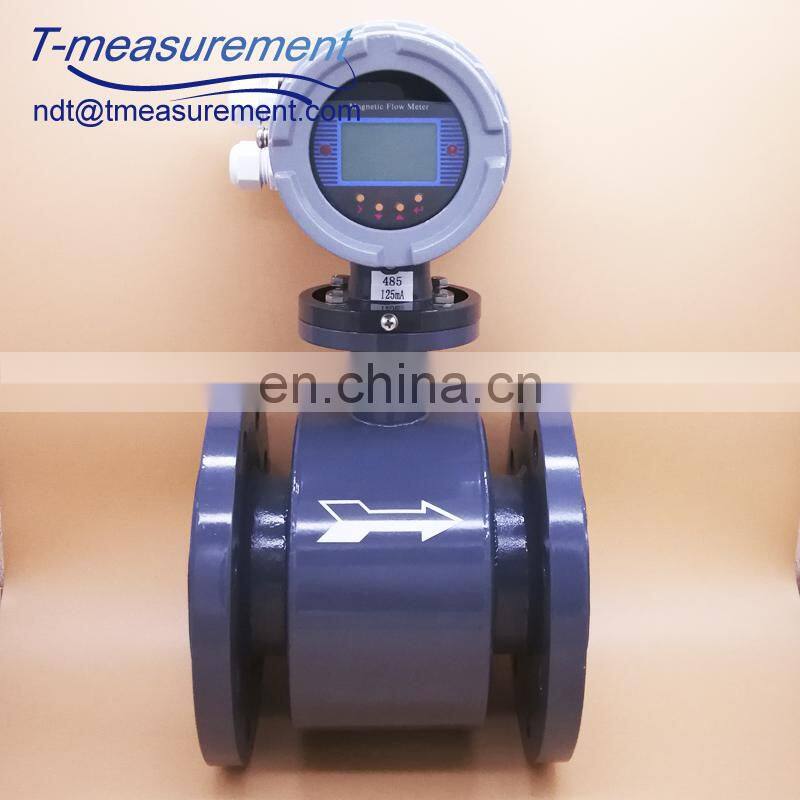

TEM82E electromagnetic flow meter

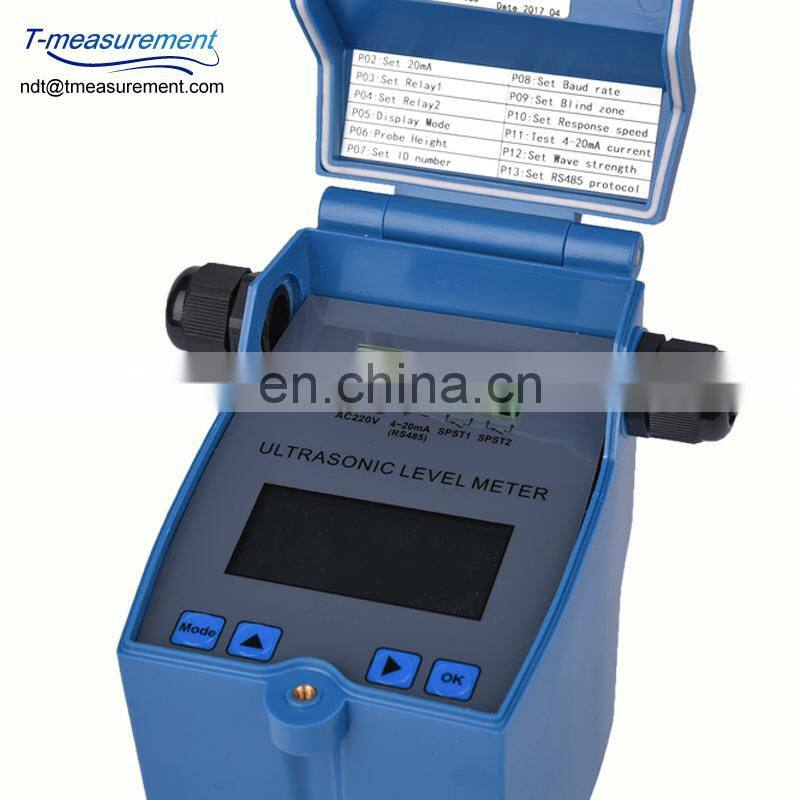

UTG21-PY ultrasonic level meter
