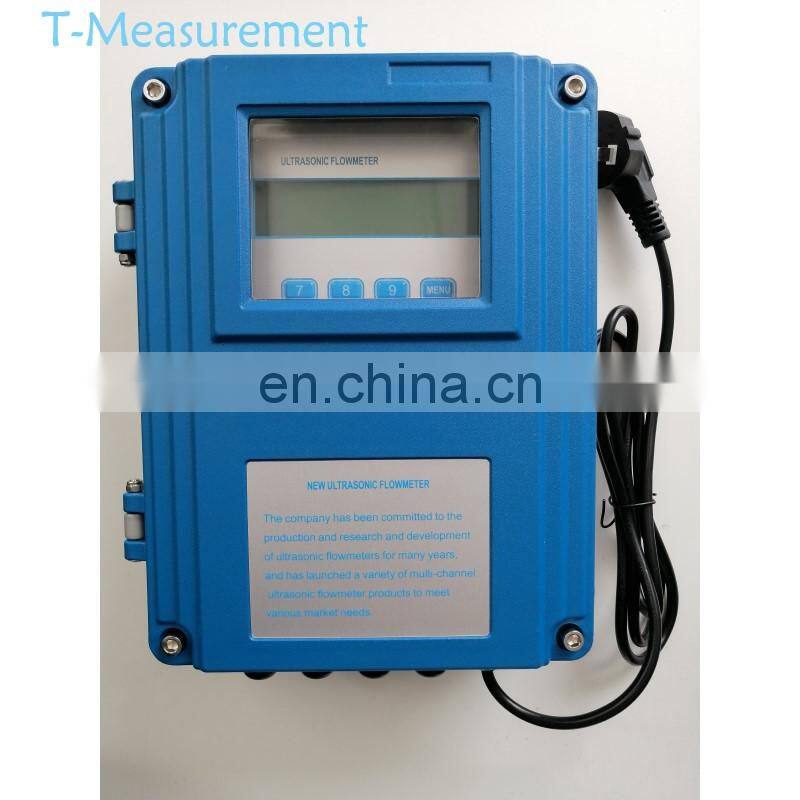

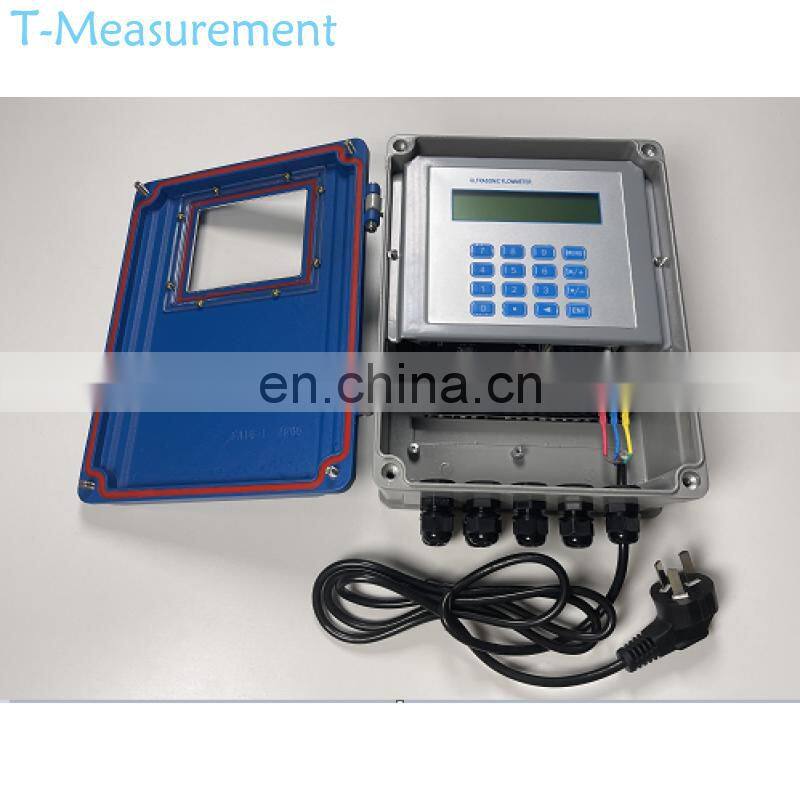

Taijia Ultrasonic Liquid Flow Meters Dual Channel Ultrasonic Heat Flow Meter Flowmeter

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Introduction
Welcome to choose to use the excellent performance, multi-function,using a number of patented technology ultrasonic flowmeter. Ultrasonic flowmeter supports both mono and dual channel, using the latest 32-bit processor Cortex-M4 as the CPU, with the advantages of block computing, floating point computing capability; ultrasonic flowmeter is suitable for continuous measurement of the flow and heat of most clean and uniform liquids without large concentrations of suspended particles or gases in industrial environments.

Specification

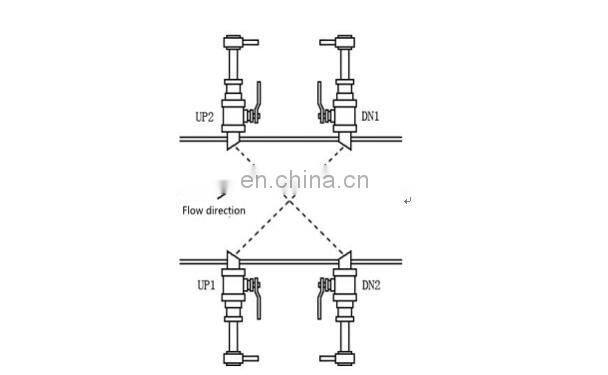

ustration of a two-channel insert installation

Program	Performance, Parameters
Accuracy	1.0%
Repeatability	0.2%
Flowrate range	0.03~±7m/s.
Measurement Principle	Ultrasonic propagation time difference principle,32-bit CPU operation,8-byte double floating point operation.
Measurement cycle	50ms (20times per second with 64sets of data collected per cycle)
Display	2x10 or 4x8 backlight type Chinese character LCD with low power consumption for segment code LCD.
Operations	4×4 light touch key board/4-key input.
Input	2x2wire PT1000 platinum resistance input circuit for heat metering
Output	Current signal:4~20mA, impedance 0~500ohm, floating, accuracy 0.1%FS. Pulse signals: positive, negative, net flow and heat accumulation pulse OCT output Data interface: standard isolated RS-485 interface
Other functions	Memorize cumulative daily, monthly, and annual traffic.Fault self-diagnosis function; network working method, etc
Sensors	External clamping type: Small standard S1 type, suitable for pipe diameter DN15 to DN100mm Medium standard M1 type for pipe diameters DN50 to DN700mm Large standard L1 type for pipe diameters DN300 to DN6000mm Insertion type: measuring pipe materials not limited (weldable, non- weldable are available) for pipe diameter DN80 or above. Standard pipe section type: applicable to pipe diameter DN10-DN400, The Whole Machine Measurement Accuracy±0.5%.
Cable length	Can be extended to 100m (please contact the manufacturer for more than this length)
Lining material	All textured dense pipes such as steel, stainless steel, cast iron, rigid plastic, cement pipes, etc., are allowed to have a lining.
Inner diameter	10mm-6000mm
Length of straight pipe section	Up stream≥10D,down stream≥5D,and≥30D from the pump outlet.
Type	Water, seawater, acid and alkaline liquids, food oil, steam, coal, diesel, crudeoil, alcohol, beer, and other homogeneous liquids that can transmit ultrasound
Turbidity	≤10,000ppm,and small bubble content.
Temperature	150ºC
Flow direction	The forward and reverse flow can be measured separately, and the net flow can be measured
Temperature	Main machine:-10-70ºC (please contact the manufacturer for more than this temperature range requirement) Probe:-30ºC~150ºC
Humidity	Main frame:85%RH Probe: submersible, water depth≤3m
Power supply	Ordinary version: DC24V, AC220V power supply mode. Low power version:3.6v lithium battery /5~9V(or 9~36V).
