Taijia YFD-500 Ultrasonic Flaw Detector Ultrasonic Non Destructive Testing Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Concrete Core Drilling Machine Diamond Core Drilling Machine Electric Concrete Drilling Machine
-
Taijia MD120 Wood Stud Finder Digital Wall Scanner 3 in 1 Metal Detector AC Wire Magnetic Nail Finder
-
Taijia 4-20mA Lpg Liquid Gauge Water Indicator Fuel Tank Meter Transmitter Ultrasonic Level Sensor Ultrasonic Liquid Level Meter
-
Dynamometer Dyna-link Hanging Load Cell
-
Concrete Locator and Corrosion Meter R71 Concrete Detector Concrete Rebar Detector
-
R71 Low Cost Handheld Tester Corrosion Rebar Detector Rebar Scanner
Product Description
Product Description
★ User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, TCG,color Bscan, AWS, etc.
★ Pulse Repeatition Frequency: 10-3000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Can use probe frequency 25M perfectly .
★ High speed real-time flaw detection video recording. Unlimited USB data storage.
★ Blue tooth connection to mobile device to generate and print detection reports on-site. ★ IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.
★ Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.
Specification
Type | YFD-500 Ultrasonic flaw detector |
Range | 0-15000 mm ,at steel velocity |
Material Velocity | 00～20000 m/s |
Pulse Repetition Frequency | 10-3000Hz |
Dynamic range | ≥38dB |
Resolving Power | >40dB (5P14) |
Sensitivity Leavings | >68dB |
Reject (suppression) | 0 to 80% full screen height |
Test Modes | Pulse echo, dual element and thru-transmission |
Probe Types | Single Straight, Single Angle,Daul Straight, Daul Anlge,Thrugh,Creeping,Surface |
Gate Monitors | Two independent gates controllable over entire sweep range |
Power Requirements | AC Mains 100-240 VAC, 50-60 Hz |
Display Delay | -20 to 3400 µs |
Probe Delay/Zero Offset | 0 to 99.99µs |
H×W×D(mm) | 260×175×60 (mm) |
Weight | 1.2kg |
Operating Temperature | -10℃ to 50℃ |
Storage Temperature | -30℃ to 50℃ |
Pulse Energy | 70V,100V,200V, 300V, 400V, 500V selectable |
Rectification | Positive half wave, negative half wave, full wave, RF System |
Bandwidth (amplifier bandpass ) | 0.2 to 35 MHz |
Gate Monitors | Two independent gates controllable over entire sweep range |
Sensitivity | 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB. |
Features
Functions
Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф).
Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.
Connectting U-Disk，the unit can get unlimited memory.
Automated make video of test process and play; use upan，the length of video is unlimited.
Color Bscan.
There are 17 standards of in the unit.
Blue tooth connection to mobile device to generate and print detection reports on-site.
AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate：spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze：Display freeze holds waveform and sound path data.
Alarm：Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.
Base Instrument Pack
Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.
Connectting U-Disk，the unit can get unlimited memory.
Automated make video of test process and play; use upan，the length of video is unlimited.
Color Bscan.
There are 17 standards of in the unit.
Blue tooth connection to mobile device to generate and print detection reports on-site.
AWS D1.1.
Curved Surface Correction feature.
Crack Height Measure function.
Magnify gate：spreading of the gate range over the entire screen width.
Auto-gain function.
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan display.
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
Scan Freeze：Display freeze holds waveform and sound path data.
Alarm：Beep and LED.
Real Time Clock.
Fill echo.
Capture mark.
Echo color within the Gate.
Base Instrument Pack
Packing&Delivery

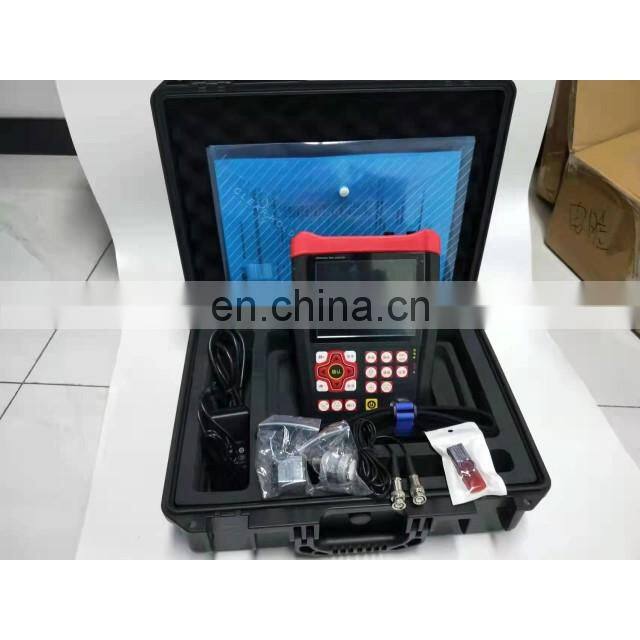

Base Instrument Package
Portable Ultrasonic Flaw Detector
Straight Beam Transducer (2.5 MHz, Φ20)
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
Interconnect Cable for the transducer (Q9-C5，or optional C9- C5)
Rechargeable Li-Ion Battery Package, 8 amp hour
Power supply/charger unit
Operating Manual in English
App Software
Strap
Straight Beam Transducer (2.5 MHz, Φ20)
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
Interconnect Cable for the transducer (Q9-C5，or optional C9- C5)
Rechargeable Li-Ion Battery Package, 8 amp hour
Power supply/charger unit
Operating Manual in English
App Software
Strap
Related products

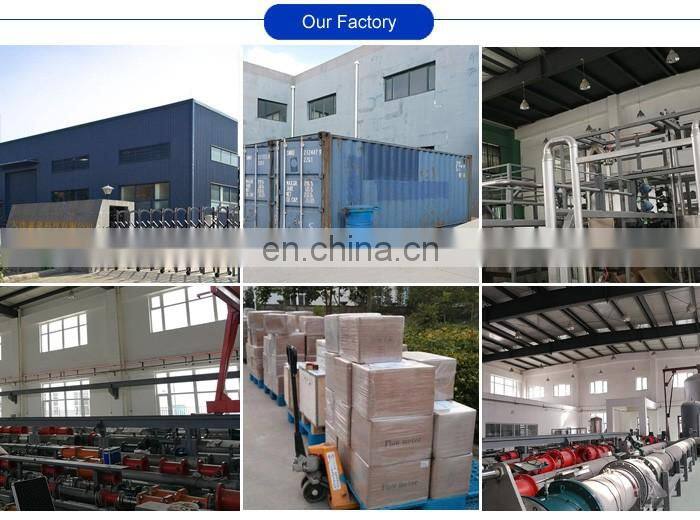

Our Company
