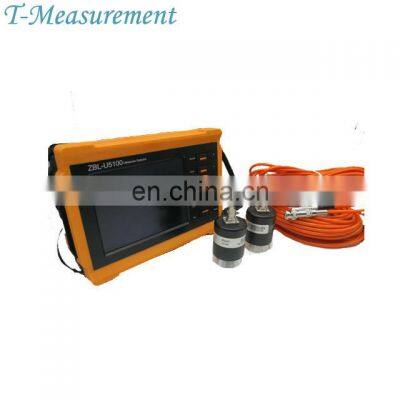

Taijia non-destructive technique UPV for Concrete NDT inspection ultrasonic test ultrasound pulse tester price
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Taijia Ndt Weld Test Equipment ultrasonic flaw detector ultrasonic ndt Ultrasonic Flaw Detector price
-
Taijia Profoscope rebar detector in Concrete steel bar scanners stud finder sensor wall scanner magnetic stud finder
-
Taijia Diamond coring tool for hand-held drilling concrete drilling machine core drilling machines
-
Taijia Friction skid resistance and friction tester Portable skid resistance tester Pendulum Friction Tester
-
Taijia tm-8812 ultrasonic thickness gauges, thickness gauge meter, ultrasonic thickness meter gauge ultrasonic meter tester
-
Taijia TM8818 Digital Pipe ndt Ultrasonic concrete Thickness Gauge ultrasonic digital thickness gauge
Product Description
Product Description
Features of ZBL-U5100 ultrasonic detector pulse velocity tester
1. During the test, the test result is available and the graphic distribution of abnormal points in each profile is shown at any
time. Meanwhile, wave train figure, curve graph and data list of each profile may be shown;
2. During the test, sampling delay and amplification factor may be adjusted at any time;
3. With high definition LCD screen, waveform, wave speed and amplitude of multiple tested profiles may be clearly observed, and
the quality of whole pile in the test is very clear;
4. It adopts touch screen and user-friendly interface, which is simply, easy to learn and convenient to operate;
5. With high-capacity SD card, there is no need to worry about the storage space of test data;
6. Built-in high-performance and capacity lithium battery may satisfy fieldwork for long time;
7. Various USB ports may be used for data transmission or software update within the instrument;
8. Test data of the same project is saved under the folder created with the title of the project for easy and reliable management.
time. Meanwhile, wave train figure, curve graph and data list of each profile may be shown;
2. During the test, sampling delay and amplification factor may be adjusted at any time;
3. With high definition LCD screen, waveform, wave speed and amplitude of multiple tested profiles may be clearly observed, and
the quality of whole pile in the test is very clear;
4. It adopts touch screen and user-friendly interface, which is simply, easy to learn and convenient to operate;
5. With high-capacity SD card, there is no need to worry about the storage space of test data;
6. Built-in high-performance and capacity lithium battery may satisfy fieldwork for long time;
7. Various USB ports may be used for data transmission or software update within the instrument;
8. Test data of the same project is saved under the folder created with the title of the project for easy and reliable management.
Specification
Model | ZBL-U5100 ultrasonic detector pulse velocity tester | ||
Control Mode | Internal A8 Industrial control board | ||
Data storage | Internal | ||
Signal collecting mode | Automatic continuous collection | ||
Trigger | signal | ||
Acoustic transit time accuracy | 0.025μs | ||
Receiver sensitivity | ≤10μv | ||
Data transmission | USB,MiniUsb,Wi-Fi,Bluetooth | ||
Screen | 5.7inch,high brightness TFT LCD screen | ||
Operation Mode | Touch screen and button | ||
Channels | 1 emitter+1 receiver | ||
Sampling interval | 0.025μs~1638.4μs | ||
Acoustic transit time range | ±1677.7ms | ||
Amplifier bandwidth | 3~450kHz | ||
Size(mm) | 210×149×60 | ||
1. “Pile integrity test”: test the integrity of foundation pile according to ultrasonic transmission rule and it can detect the
integrity of long continuous wall;
2. “Concrete strength test” : using the ultrasonic-rebound combined method to test the compressive strength of concrete
structures;
3. “Concrete defect or cavity test”: test the concrete flaw by ultrasonic transmission rule;
4. “Concrete crack depth test” :test the crack depth of concrete by adopting horizontal ultrasonic test method;
integrity of long continuous wall;
2. “Concrete strength test” : using the ultrasonic-rebound combined method to test the compressive strength of concrete
structures;
3. “Concrete defect or cavity test”: test the concrete flaw by ultrasonic transmission rule;
4. “Concrete crack depth test” :test the crack depth of concrete by adopting horizontal ultrasonic test method;
