Multifunctional Electrical Compactor for Soil
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Concrete Slump Cone Set for Fresh Concrete Testing
-
Soil Load Bearing Ratio CBR California Bearing Ratio Tester 380V
-
LHMH-II Los Angeles Abrasion Testing Machine Los Angeles Abbrasion Machine
-
Concrete Slump Cone Apparatus Test Price
-
Los Angeles Abrasion Tester Machine Manufacturers Price
-
Direct Reading Fresh Concrete Air Meter for Construction Test
Product Description
Product Description

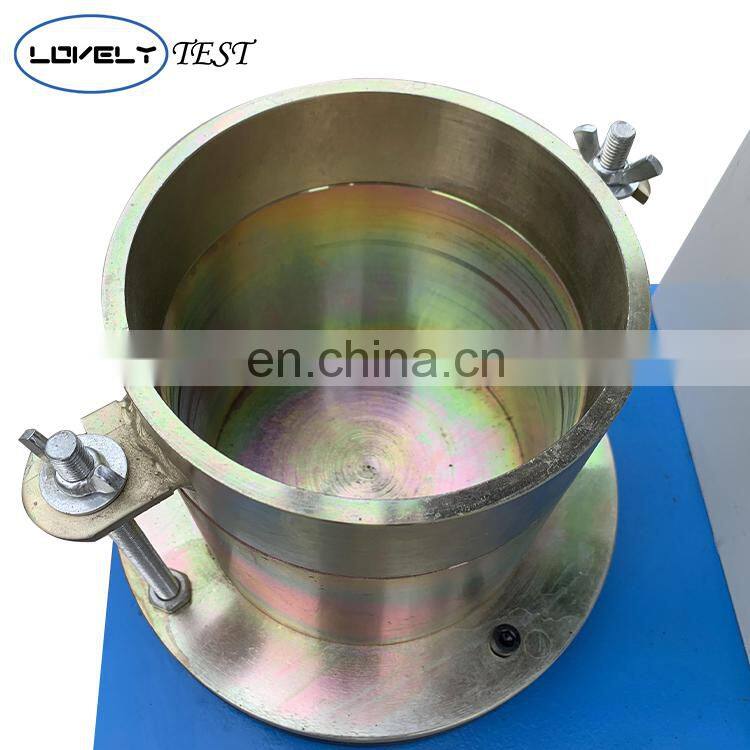

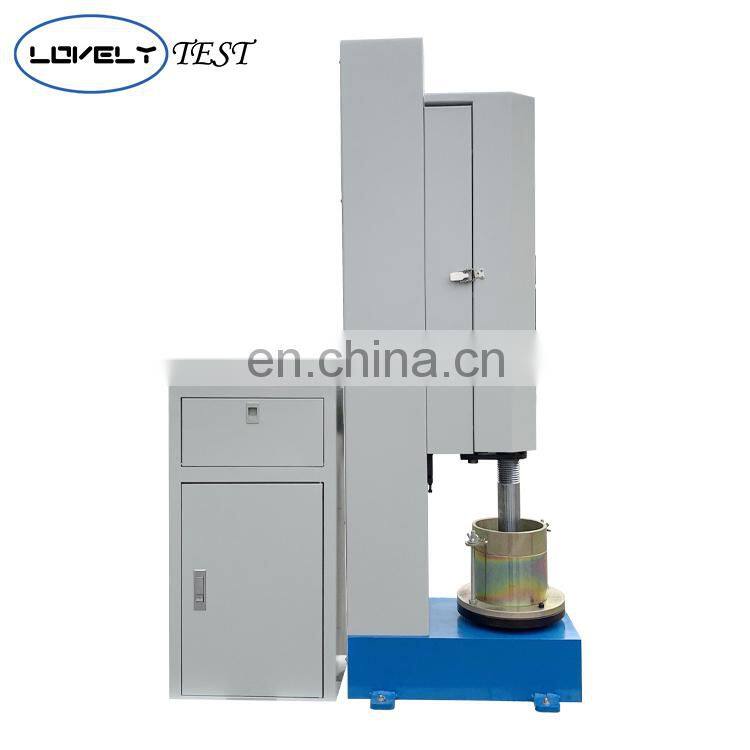

Multifunctional Electric Compaction Apparatus



This instrument is to reduce the labor intensity of scientific research personnel, Improve test efficiency, According to users' opinions,Our factory has been developed for several
years, Advantages of absorbing foreign materials, Update on the basis of chain drive,Using gear transmission, Avoid the phenomenon of losing the hammer and not lifting the hammer. Automatic counting, Automatic control, Automatic shutdown, Automatic cycle work
and other advantages, Available to transportation research departments, Teaching experiment and engineering construction unit, Test in the laboratory and on-site.
years, Advantages of absorbing foreign materials, Update on the basis of chain drive,Using gear transmission, Avoid the phenomenon of losing the hammer and not lifting the hammer. Automatic counting, Automatic control, Automatic shutdown, Automatic cycle work
and other advantages, Available to transportation research departments, Teaching experiment and engineering construction unit, Test in the laboratory and on-site.



Experiment method | Standard | Major | |
Diameter of hammer bottom(mm) | 51 | 51 | |
Hammer weight(kg) | 2.5 | 4.5 | |
Height of drop weight (mm) | 305 | 457 | |
Inner diameter of test tube (mm) | 102 | 152 | |
Height of test tube (mm) | 116 | 116 | |
Test cylinder volume (ml) | 947.4 | 2103.9 | |
Protective tube height (mm) | 50 | 50 | |
Compaction power (KJ/ cm3) | 592.2 | 2684.9 | |
Voltage | 220V/380V, customized | ||



Standard | Diameter(mm) | Height (mm) | Hammer Weight (kgs) | Height of drop weight(mm) |
ASTM | 101.6 | 116.4 | 2.5 | 305 |
152.4 | 177.8 | 4.54 | 457 | |
BS | 101.6 | 127 | 2.5 | 305 |
152.4 | 127 | 4.54 | 457 | |
EN | 100 | 127 | 2.5 | 300 |
152 | 127 | 4.5 | 450 | |
GB | 102 | 116 | 2.5 | 305 |
152 | 116 | 4.5 | 457 |

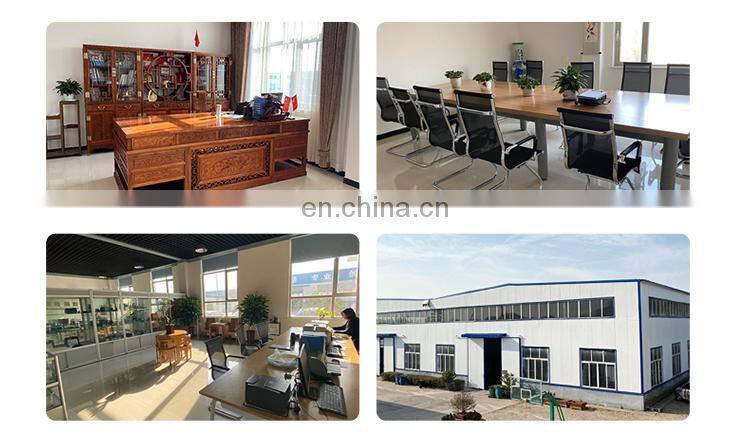

Company Profile


Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.

It also has warehouse, be assured for sufficient supply. We are continuing to design and produce new production to satisfy customers’ request. Welcome to visit us for business negotiation!

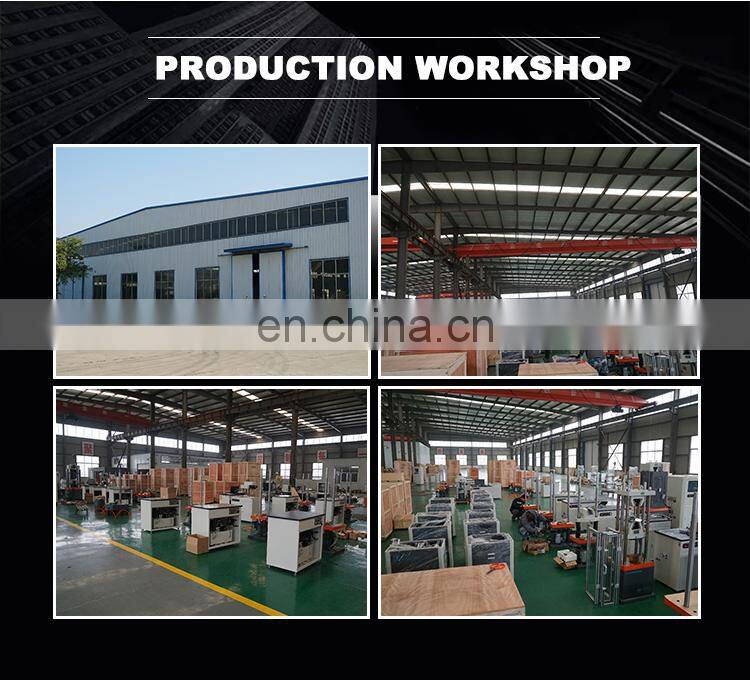

Factory Workshop


Hot Sales
Certifications

Customer Photos

Packing and Shipping


FAQ

Q1:Are you a factory or trading company?
A:We are a factory specializing in manufacturinf all kinds of tester.
Q2:Where is the loading port?
A:Qingdao port or tianjin port.
Q3:What’s the MOQ of the product?
A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?
A:We have ISO 9001.
Q5:Do you have an OEM service?
A:Yes.We can provide OEM and ODM services as your requirements.
Q6:How long is the production cycle after ordering?
A:General it is about 7-20 days.
Q7:What is the payment method?
A:T/T payment is preferred and other payment terms is accepted.
