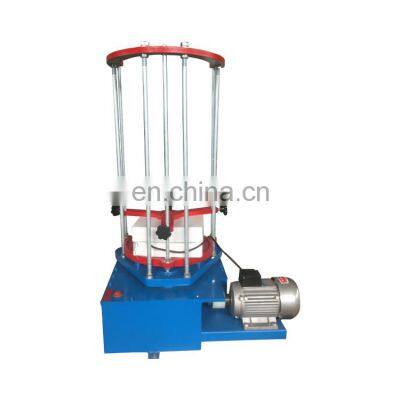

Electric Standard Construction Soil Test Sieve Shaker
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
7L Indicator Air Content Meter/Air Volume Meter Tester/ Concrete Air Content Measuring Instrument
-
Lab Multi-function Power-driven Soil Proctor Compaction Testing Equipment /Soil Electric Compaction
-
Marshall Electric Compactor Asphalt Testing Instrument Marshall Electric Compactor
-
Falling Ball Rebound Modulus Tester Soil Parameter Test
-
Rock Elastic Modulus Tester/Compressometer Extensometer Machine
-
Laboratory Soil Proctor Compaction Test Machine Price
Product Description

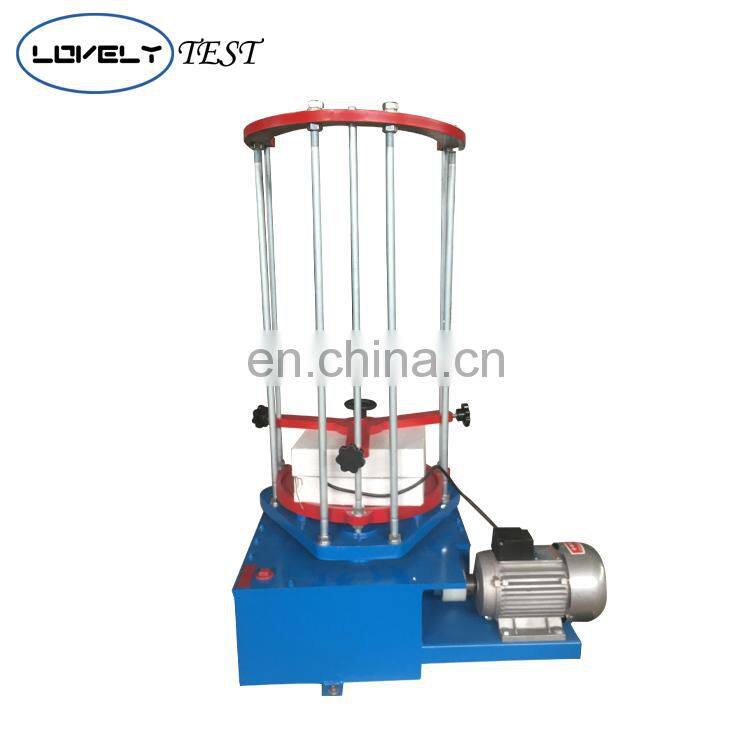

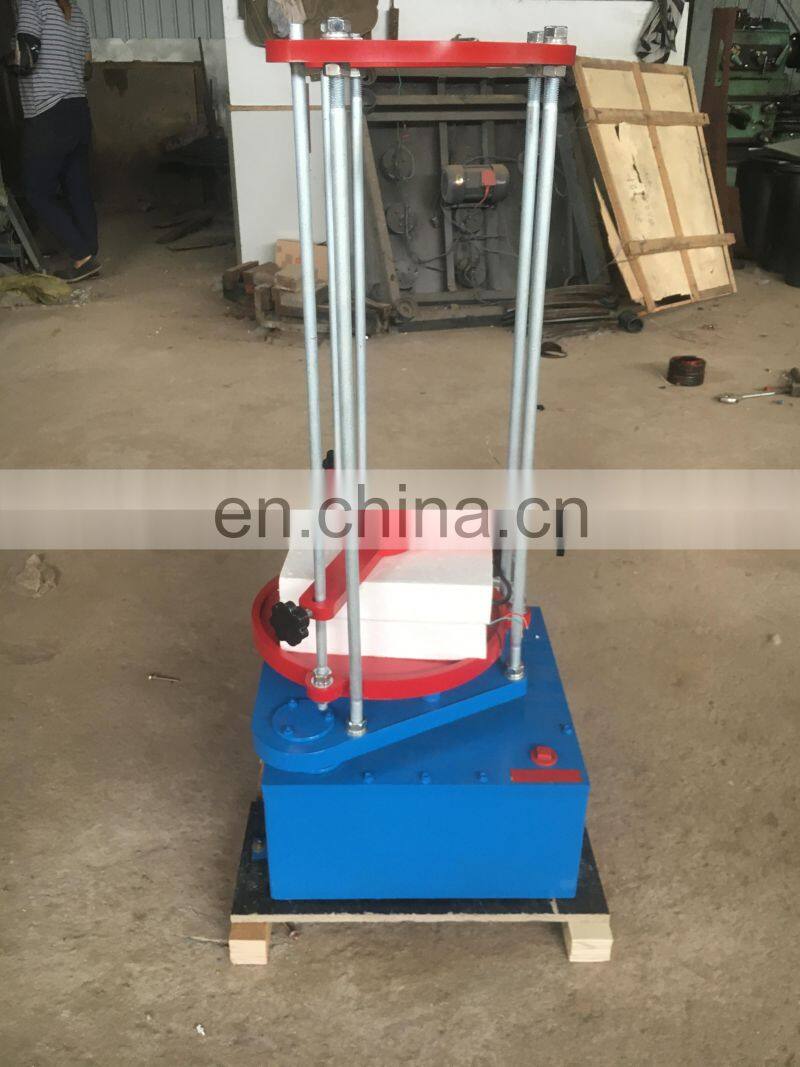

Soil Sieve Shaker
Product Description
The 92A Shaking Sieve Machine is suitable for screening and analysis of materials in the geological, metallurgical, chemical coal, national defense, scientific research, grinding wheel, cement, construction and other departments and laboratories.
Main Features
Working Principle
The machine is mainly composed of five parts: rotation, swing shock, tightening mechanism and electrical appliances. The motor drives the main shaft through the transmission plate, the eccentric shaft is driven by the turbine on the main shaft to make a rotary movement, and the turbine on the main shaft is attached with a camshaft for the shock movement, so that the sieve holder has dual movements of rotation and shock, which has reached the screen. The purpose of screening materials.
The machine is mainly composed of five parts: rotation, swing shock, tightening mechanism and electrical appliances. The motor drives the main shaft through the transmission plate, the eccentric shaft is driven by the turbine on the main shaft to make a rotary movement, and the turbine on the main shaft is attached with a camshaft for the shock movement, so that the sieve holder has dual movements of rotation and shock, which has reached the screen. The purpose of screening materials.
Parameters
Maximum diameter of the sieve | 300mm |
Sieve stack height | 440mm |
Swing stroke | 20m |
Swing times around | 221/5 mins |
Shock frequency | 147/min |
Up and down amplitude stroke | 6mm |
Time range | 0-15 mins |
Motor power | 370V |
Speed | 140rpm |
Size | 1050x730x490mm |
Weight | 74kg |
Application
