Home > Instruments & Meters > Test Instrument > Test Machine > HYE-3000 Automatic Compression Testing Machines for Cube and Cylinders
HYE-3000 Automatic Compression Testing Machines for Cube and Cylinders
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HYE-300B Concrete Bending and Compression Testing MachineNegotiableMOQ: 1 -
HYE-300B Automatic Cement Mortar Compression Flexural Testing MachineNegotiableMOQ: 1
-
HYE-3000 Electro-Hydraulic Compression Testing Machine Factory PriceNegotiableMOQ: 1
-
Digital Compression Testing Machine Capacity 2000 kNNegotiableMOQ: 1
-
Electro-hydraulic Servo Compression Machine Tester PriceNegotiableMOQ: 1
Product Usage and Features

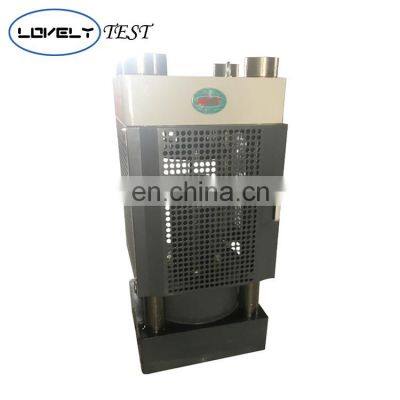

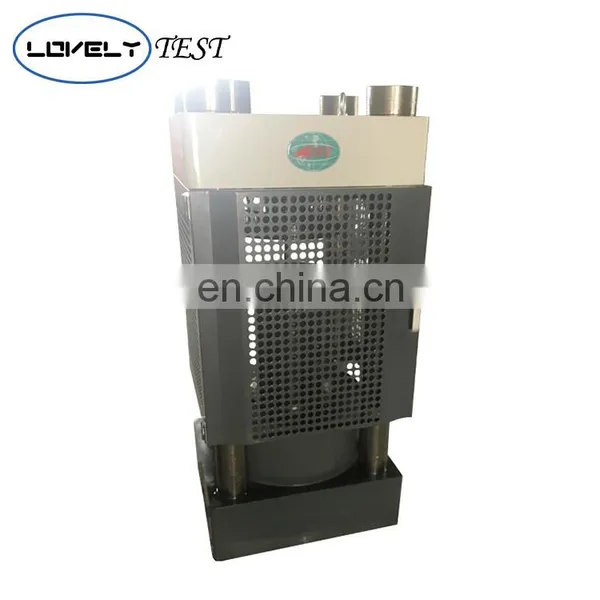

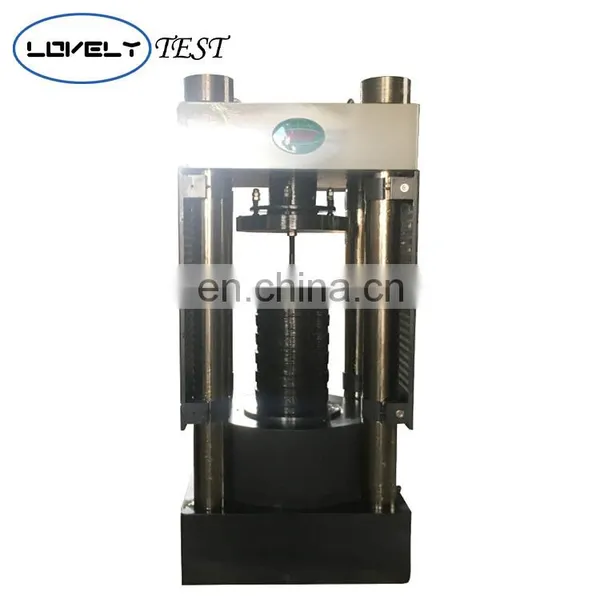

HYE-3000 Microcomputer Servo Compression Testing Machine
USAGE OVERVIEW:
HYE series of test machines are hydraulically powered, using electro-hydraulic servo control technology to test the mechanical properties of compression of rock, mortar, brick, concrete and other building materials. It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
PRODUCT FEATURE:

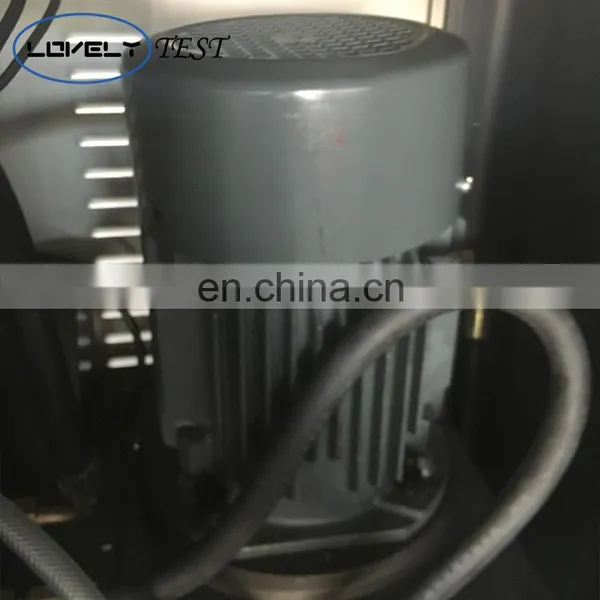

1. Siemens motors, stable torque and speed.
2. Built-in radial plunger pump, stable output and low noise.
3. Automatic servo measurement and control system, the data is accurate and reliable.
APPLICATION STANDARD
GBT、ISO、ASTM、DIN、JIS etc.
GBT、ISO、ASTM、DIN、JIS etc.
Parameters
Model |
HYE-2000 |
HYE-3000 |
Name |
Digital compression testing machine |
Digital compression testing machine |
Max. Test Force (KN) |
2000 KN |
3000 KN |
Test accuracy |
Level 1 |
Level 1 |
Space adjustment method |
Manual pad adjustment |
Manual screw adjustment |
Piston Strock (mm) |
80 mm |
80 mm |
Platens Max. Distance |
400mm |
410mm |
Upper platen size (mm) |
Ф225 |
Ф295 |
Lower platen size (mm) |
Ф295 |
Ф295 |
Power |
0.75 KW |
1.1 KW |
Machine weight(kg) |
920 |
1100 |
Product Details
It shows the loading force value, loading speed and loading curve.
The test data is automatically processed, stored, and printed.
Touch screen equiped with pencil make your test process a enjoyable experience.
Application
Company information
Cangzhou Lovely Technology Co., Ltd
Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Our Services
1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement;
2. Get best product with excellent quality and competitive price;
3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service;
4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost;
5. Easily make the payment via West Union, Paypal, Credit Card for small value order;

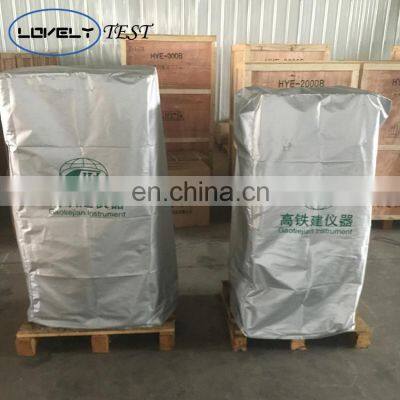

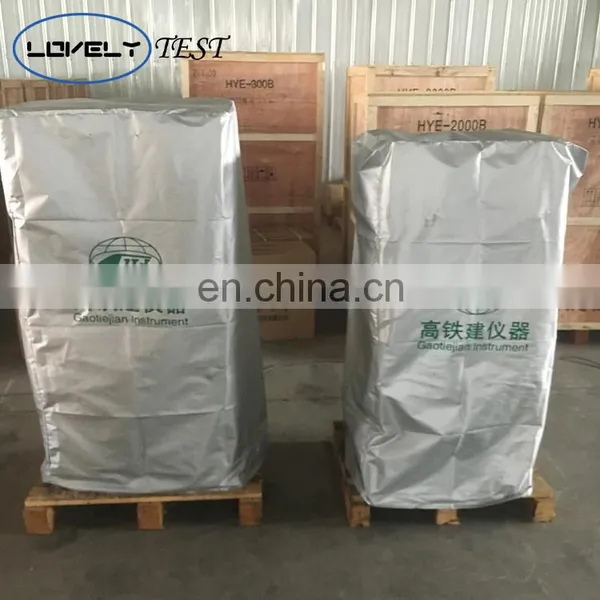

Packing & Delivery
