Home > Instruments & Meters > Test Instrument > Test Machine > HYE-2000C Automatic Concrete Compression Strength Testing Machine 2000kn Ctm

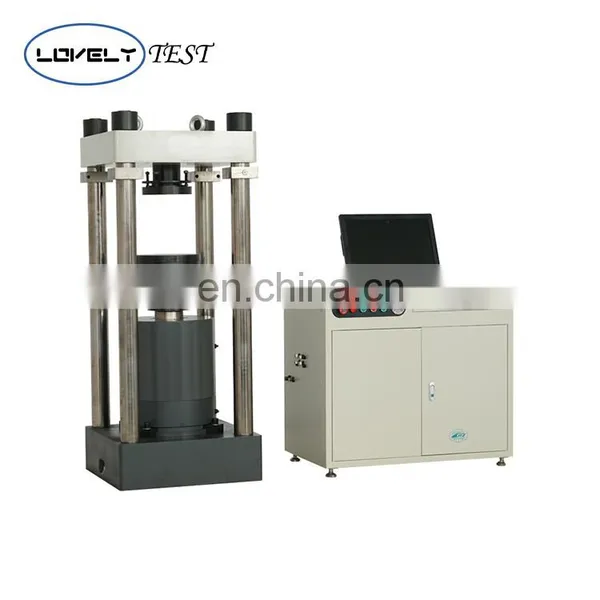

HYE-2000C Automatic Concrete Compression Strength Testing Machine 2000kn Ctm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brick Compressive Strength Testing Machine PriceNegotiableMOQ: 1 -
2000KN CTM Digital Compression Testing Machine for Concrete Cube BrickNegotiableMOQ: 1
-
Digital Concrete Compression Testing Machine Cube Crashing Machine in StockNegotiableMOQ: 1
-
HYE-3000 Hydraulic Compression Testing Machine Factory PriceNegotiableMOQ: 1
-
Concrete Testing Machine Manual/digital Mould Strength TesterNegotiableMOQ: 1
Product Usage and Features
HYE-2000D Electro-hydraulic Servo Compression Testing Machine
PRODUT OVERVIEW:
HYE-2000D Electro-hydraulic Servo Compression Testing Machine is suitable for concrete, rock compressive strength test, with appropriate fixtures and measuring devices to meet the concrete tensile test, flexural test, static pressure elastic modulus test.
PRODUCT FEATURE:
1.The testing machine is a hydraulic servo compression pressure testing machine with closed-loop control, with constant stress control and load holding function;
2.Using imported servo valve, the response is fast and the control precision is high.
3.Within the allowable range of the machine, the user can arbitrarily set the loading speed according to the requirements of the experiment;
4.The load cell adopts load sensor, which can ensure the accuracy and reliability of the test accuracy.
5.The imported low-noise high-pressure oil pump can make the workplace have a quiet environment;
6.The hydraulic system adopts air-cooling device, which is suitable for continuous operation for a long time;
7.Multiple displacement (or deformation) measurement channels can be expanded according to user requirements.
APPLICATION STANDARD
GBT、ISO、ASTM、DIN、JIS etc.
Parameters
Name |
compression testing machine |
Model |
HYE-2000D |
Max. Test Force (KN) |
2000 KN |
Test accuracy |
Level 1 |
Force Value Display Range |
1%-100%FS |
Force Value Display Error |
within ±1% |
Framework Type |
4 columns |
Distance between upper and lower platen |
410 mm |
Piston Stroke |
200 mm |
Piston Displacement Velocity |
0-60 mm/min |
Platen Size |
φ298mm |
Effective Distance Between Columns |
430 mm |
Host Size |
650*650*1620 mm |
Control Cabinet Size |
985*600*950 mm |
Total Weight |
1600kg |
Product Details

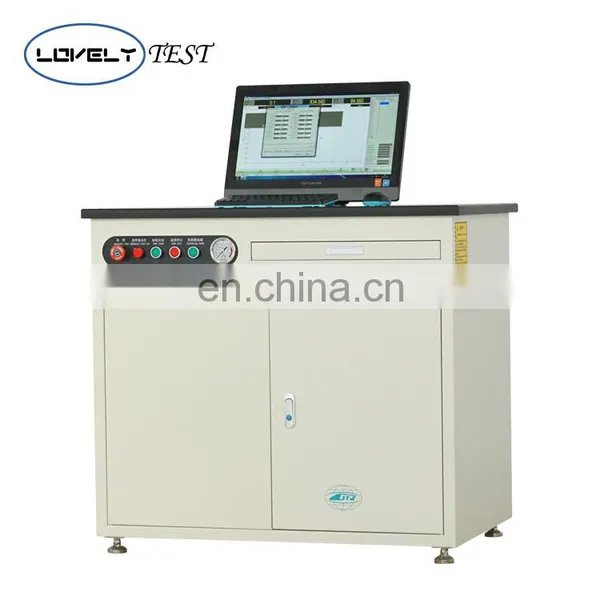

Horizontal tpye control cabinet
1. The Software is in English, stable and easy to use.
2. The test data is auto processed, stored, and printed.
3. It shows the loading force value, speed and curve.
4. Lenovo brand computer with excellent performance.

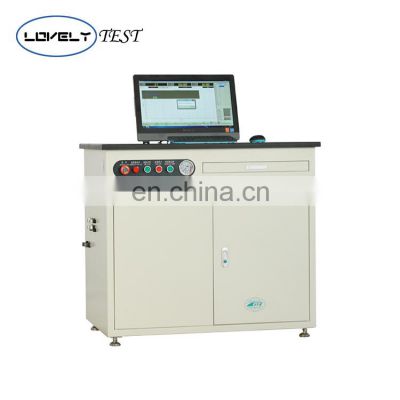

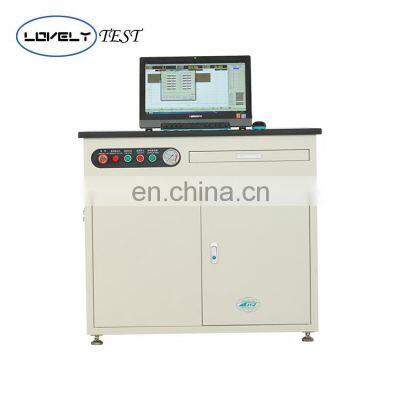

Upright type control cabinet
1.The Software is in English, stable and easy to use.2. It shows the loading force value, speed and curve.
3. The test data is auto processed, stored, and printed.
4. Touch screen equiped with pencil. Make your test process a enjoyable experience.
Application
Contact US
Cangzhou Lovely Technology Co., Ltd
Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
Get our in-time reply via email or telephone or instant messenger;
Get best product with excellent quality and competitive price;
One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service;
Feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost;
Easily make the payment via West Union, Paypal, T/T for small value order;
