2000kn Automatic Compression Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Computer Control Compression Testing MachineNegotiableMOQ: 1 -
3000 Kn Concrete Compression Strength Testing Machine Digital Compression Testing MachineNegotiableMOQ: 1
-
Digital Compression Testing Machine Capacity 200 TonNegotiableMOQ: 1
-
High Quality Concrete Compression Testing Machine 2000KN Made in ChinaNegotiableMOQ: 1
-
Compression Testing Machine Automatic UTM 2000KNNegotiableMOQ: 1
Product Usage and Features

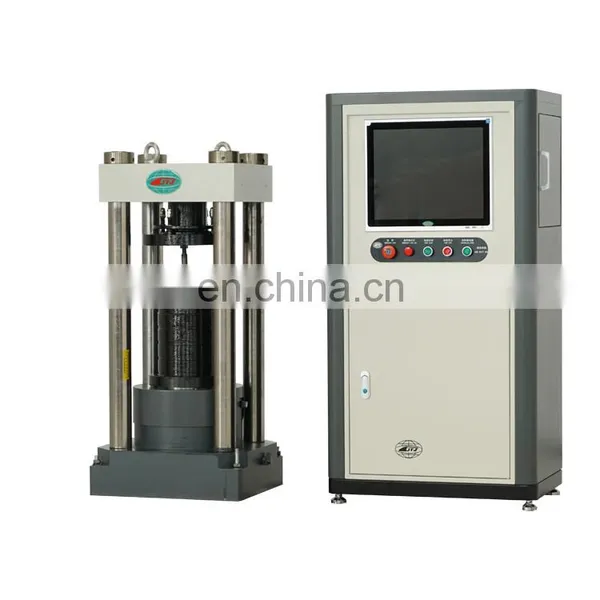

HYE-2000 Microcomputer Servo Compression Testing Machine
PRODUT OVERVIEW:
HYE series of test machines are hydraulically powered, using electro-hydraulic servo control technology rock, mortar, brick, concrete and other building materials to test the mechanical properties of compression, showing the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
PRODUCT FEATURE:
1. |
Siemens motors, stable torque and speed. |
2. |
Built-in radial plunger pump, stable output and low noise. |
3. |
Automatic servo measurement and control system, the data is accurate and reliable. |
Parameters
Model |
HYE-2000 |
HYE-2000A |
HYE-2000B |
Name |
compression testing machine |
compression testing machine |
compression testing machine |
Max. Test Force (KN) |
2000 KN |
2000 KN |
2000 KN |
Test accuracy |
Level 1 |
Level 1 |
Level 1 |
Motor Powder |
1KW |
1KW |
1KW |
Space adjustment method |
Manual Pad adjustment |
Manual screw adjustment |
Auto screw adjustment |
Piston Strock (mm) |
80 mm |
80 mm |
80 mm |
Upper platen size (mm) |
Ф225 |
240*240 |
240*240 |
Lower platen size (mm) |
Ф295 |
350*260 |
350*260 |
Machine weight(kg) |
920 |
900 |
910 |
Product Details
Horizontal tpye control cabinet
1. The Software is in English, stable and easy to use.
2. The test data is auto processed, stored, and printed.
3. It shows the loading force value, speed and curve.
4. Lenovo brand computer with excellent performance.
Upright type control cabinet
1.The Software is in English, stable and easy to use.2. It shows the loading force value, speed and curve.
3. The test data is auto processed, stored, and printed.
4. Touch screen equiped with pencil. Make your test process a enjoyable experience.
Application
Contact US
Cangzhou Lovely Group Co., Ltd
Cangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
Get our in-time reply via email or telephone or instant messenger;
Get best product with excellent quality and competitive price;
One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service;
Feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost;
Easily make the payment via West Union, Paypal, T/T for small value order;
