2000KN Digital Concrete Compression Machine Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Concrete Compression Machine 2000KNNegotiableMOQ: 1 -
Concrete Cube Compression Testing MachineNegotiableMOQ: 1
-
Compression Force Display Panel Compression Load MonitorNegotiableMOQ: 1
-
2000kN Digital Display Panel With Transducer for HydraulicNegotiableMOQ: 1
-
Digital Display Panel for the Material Test MachineNegotiableMOQ: 1

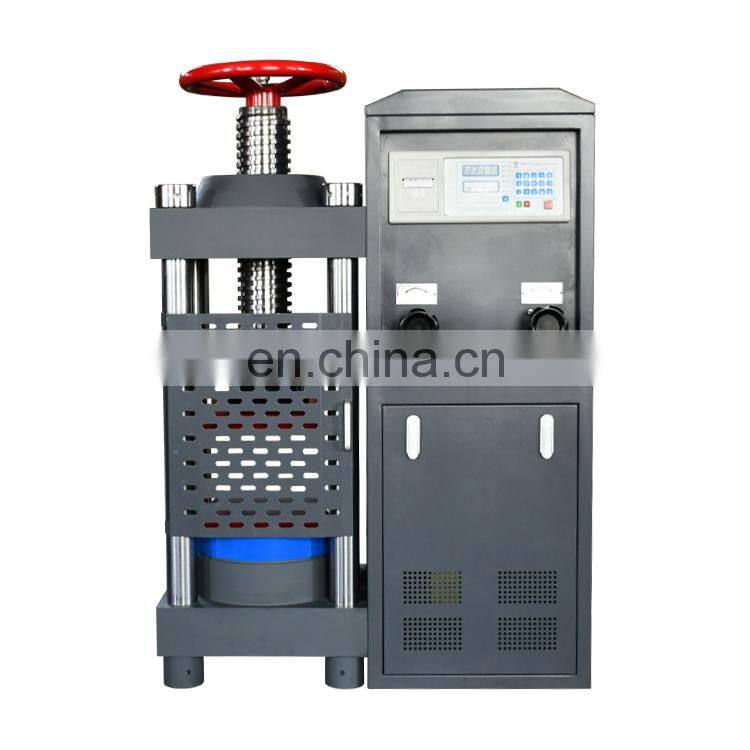

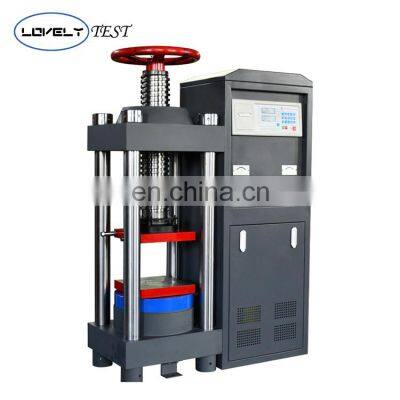

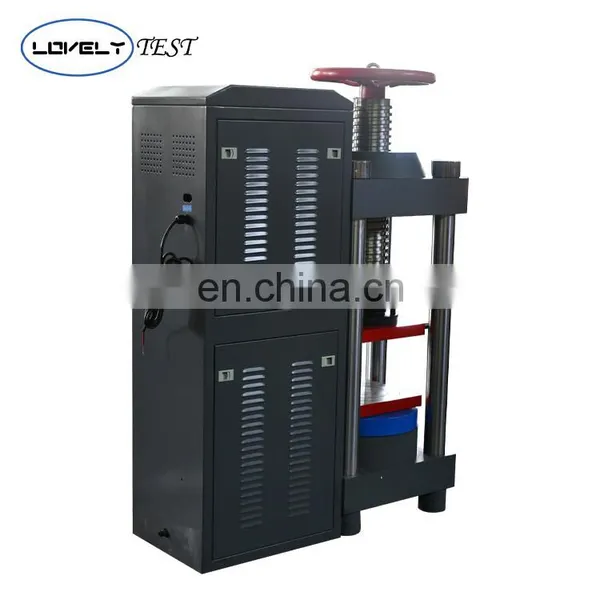

DYE-2000 Digital Compression Testing Machine
Product Details
Product Application
1. DYE-2000 electro-hydraulic pressure testing machine is driven by hydraulic power source, and intelligent measurement and control instrument is used to collect and process test data. It is composed of four parts: test host, oil source (hydraulic power source), measurement and control system and test apparatus. The maximum test force is 1000kN, and the accuracy level of the testing machine is better than level 1.
2. DYE-2000 electro-hydraulic pressure testing machine can meet the national standard test requirements for brick, concrete, cement and other materials. Manual loading and digital display of loading force value and loading speed value.
3. The testing machine is the main engine oil source integrated structure;It is suitable for compressive test of cement and concrete. With appropriate fixture and measuring device, it can meet splitting test, bending test and static compressive elastic modulus test of concrete.
2. DYE-2000 electro-hydraulic pressure testing machine can meet the national standard test requirements for brick, concrete, cement and other materials. Manual loading and digital display of loading force value and loading speed value.
3. The testing machine is the main engine oil source integrated structure;It is suitable for compressive test of cement and concrete. With appropriate fixture and measuring device, it can meet splitting test, bending test and static compressive elastic modulus test of concrete.
Model | DYE-2000A |
Name | Manual screw digital display compression testing machine |
Maximum test force (KN) | 2000 |
Test accuracy | Level 1 |
Space adjustment method | Manual screw adjustment |
Piston stroke | 0-50 |
Press space(mm) | 320 |
Sensor type | Oil pressure |
Upper platen size (mm) | 240x240 |
Lower platen size (mm) | 240x240 |
Motor powder (KW) | 0.75 |
Mainframe dimensions(mm) | 900x400x1250 |
Machine weight(kg) | 600 |
Detailed Images

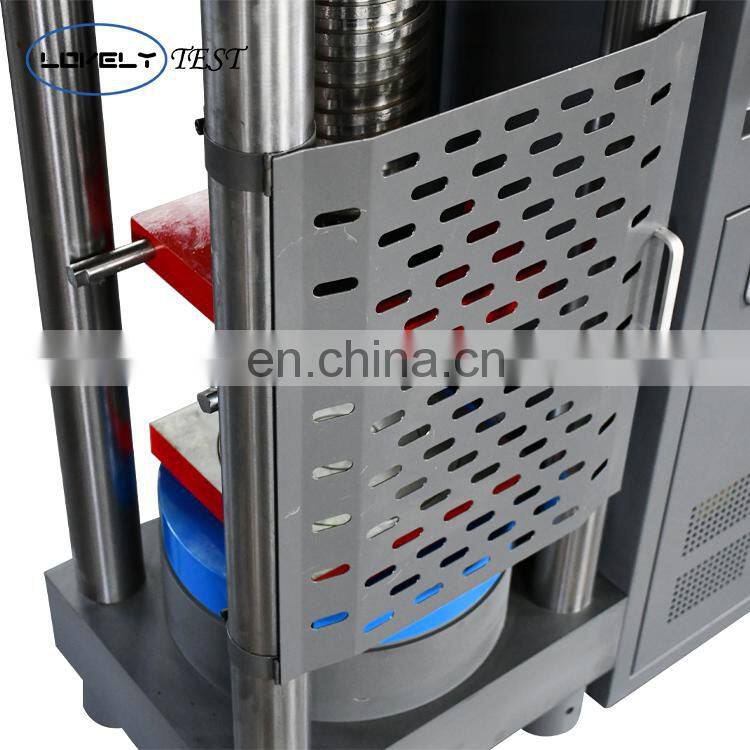

Protective net is more safe

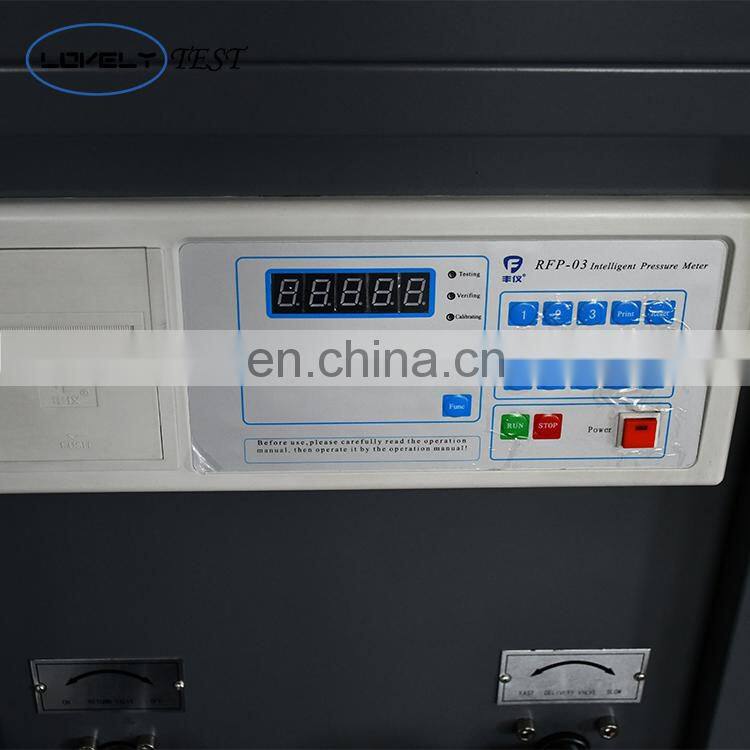

Test results are automatic processing, storing and printing.
Built in radial piston oil pump,stable output and low noise
Company information
Cangzhou Lovely Technology Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win
favorable comments from customers worldwide.
favorable comments from customers worldwide.
Cangzhou Lovely Technology Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!
The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.
According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring Instrument
Independent research and development and production of GW50 Automatic Rebar Bending Testing Machine.
L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.
New product-- U900 Series Non-Metallic Ultrasonic Detector.
HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment.
WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.
EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented Product
The factory was established, begin to produce more than 20 types instrument.
Our Services
Pre-sale service
* OEM customized service
* Equipment installation and calibration
* Free technical training for visiting factoriesAfter-sales service
* 24-hour Online consulting support.
* Training how to instal use the machine. * the professional after-sale service team will provide perfect technical support
Packing & Delivery
We promise the delivey in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting.
FAQ
Q1:Are you a factory or trading company?
A:We are a factory specializing in manufacturinf all kinds of tester.
Q2:Where is the loading port? A:Qingdao port or tianjin port.
Q3:What’s the MOQ of the product?
A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?
A:We have ISO 9001.
A:We have ISO 9001.
Q5:Do you have an OEM service?
A:Yes.We can provide OEM and ODM services as your requirements.
A:Yes.We can provide OEM and ODM services as your requirements.
Q6:How long is the production cycle after ordering?
A:General it is about 7-20 days.
A:General it is about 7-20 days.
Q7:What is the payment method?
A:T/T payment is preferred and other payment terms is accepted.
Q8: Could you support to customize?
A: Yes, we could customize the package and Voltage as request.
