HT225 Digital Rebound Hammer
Product Description

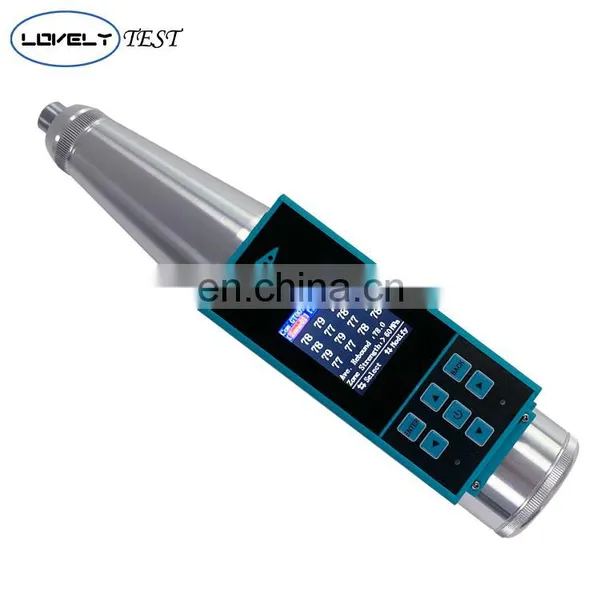

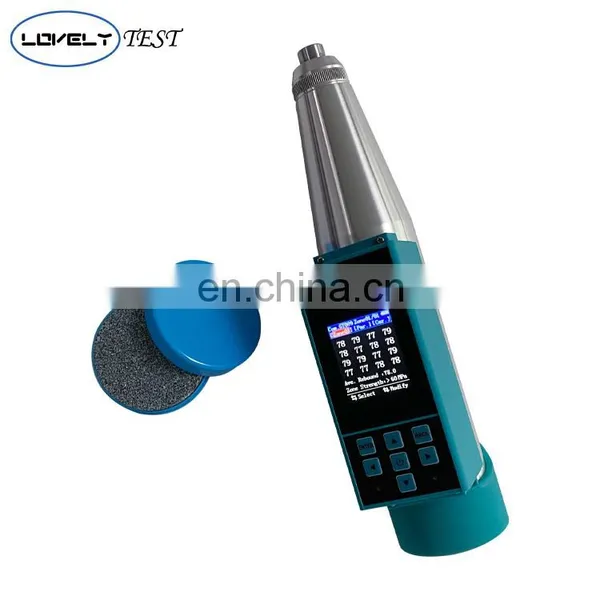

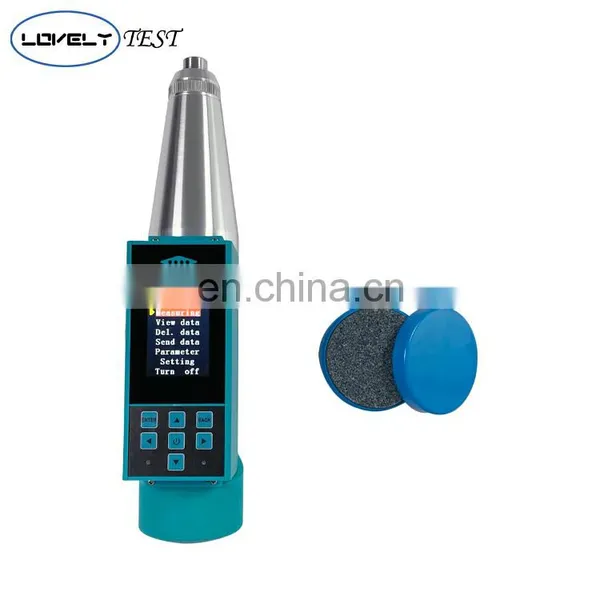

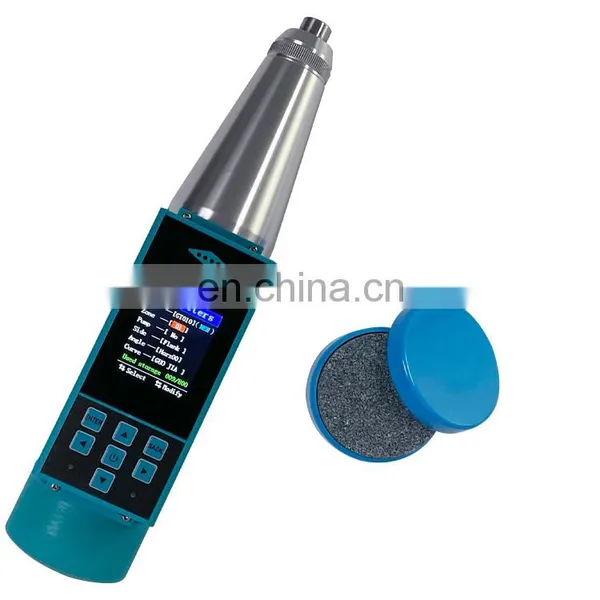

HT225 Integrated Schmidt hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures.
It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.
Parameters
Data Acquisition Terminal |
Mechanical Rebound Tester |
||||
Sensor |
MOS image sensor |
Range of strength measurement |
10-60Mpa |
||
Input mode |
Automatically record rebound value |
Nominal kinetic energy |
2.207J |
||
Display mode |
LCD |
Stiffness of Spring Strike |
7.84N/cm |
||
System capacity |
200,000 measuring points |
Hammer stroke |
75mm |
||
Powder mode |
Rechargeable large capacity lithium battery |
Indicative consistency error |
＜0.5 |
||
Data processing |
Automatic data revision. calculation and analysis |
Calibrated rebound value of steel anvil |
80±2 |
||
Volume |
123x55x25mm |
Volume |
55x55x270mm |
||
Weight |
200g |
Weight |
1.0kg |
||
Working environment temperature |
-10℃-45℃ |
||||
Humidity of working environment |
＜90%RH |
||||
Packing specification |
Material: Engineering Plastics Volume: 420x140x335mm Weight: 6kg |
||||
Main Features
1.Integral design, compact size;
2.The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable.
3.Special color screen display, automatic recording of detection time and date;
4.The machine matches the national and local curves and can be set and selected by itself.
5.The parameters of angle, test surface, pumping and carbonization can be set on site.
6.Voice reading function, noisy environment can also be equipped with headphones to monitor;
7.Optional micro printer to print test results on site;
8.Ultra-low power design, continuous use of power supply for 8 to 10 hours;

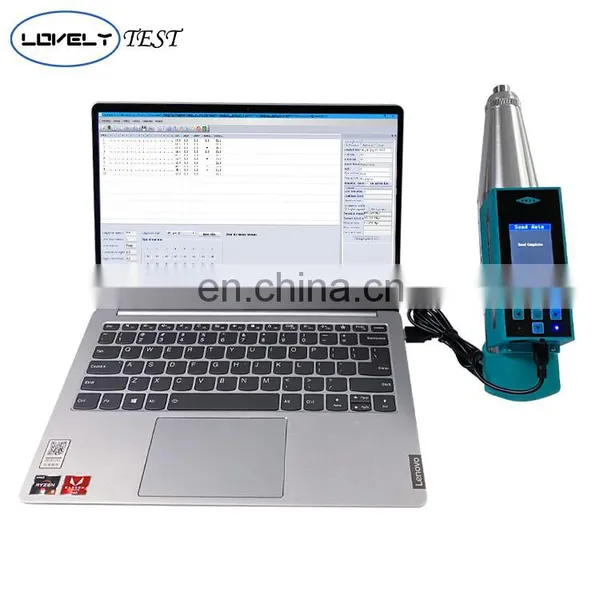

9.Equipped with high-speed USB data transmission port, data can be transmitted to the computer.
10.The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient
2.The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable.
3.Special color screen display, automatic recording of detection time and date;
4.The machine matches the national and local curves and can be set and selected by itself.
5.The parameters of angle, test surface, pumping and carbonization can be set on site.
6.Voice reading function, noisy environment can also be equipped with headphones to monitor;
7.Optional micro printer to print test results on site;
8.Ultra-low power design, continuous use of power supply for 8 to 10 hours;
9.Equipped with high-speed USB data transmission port, data can be transmitted to the computer.
10.The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient
Application
Contact US
Cangzhou Lovely Technology Co., Ltd is specialize in NDT Equipment and Material testing machine over 10 years,Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which winfavorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
