Help CenterT100 Precise Coating Thickness Gauge
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Ultrasonic Thickness GaugeNegotiableMOQ: 1 -
Wireless Digital Crack Width Testing CameraNegotiableMOQ: 1
-
Non-Nuclear Asphalt Density Gauge/Temperature and Density of AsphaltNegotiableMOQ: 1
-
Laboratory Asphalt Electromagnetic Density GaugesNegotiableMOQ: 1
-
Electromagnetic Non-Nuclear Asphalt Density GaugeNegotiableMOQ: 1
Product Usage and Features

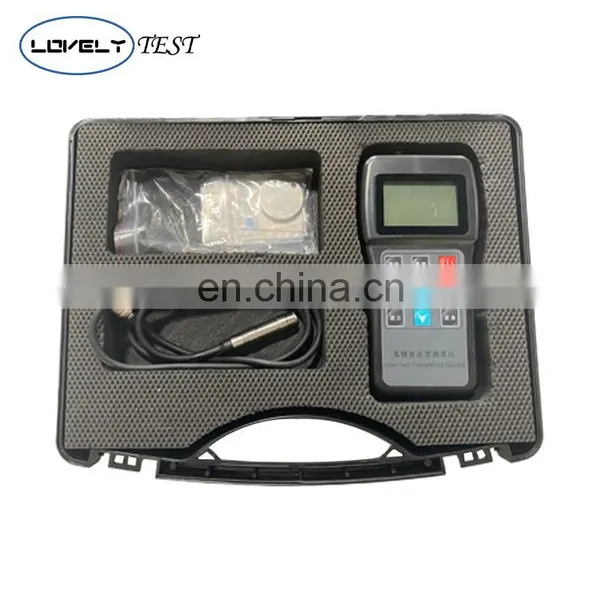

T-100 Coating thickness gauge
USAGE OVERVIEW:
T100 Coating Thickness Gauge is an economical and practical portable thickness measuring instrument.
It uses magnetic and eddy current thickness measurement methods to measure the thickness of non-magnetic coatings on magnetic metal substrates and non-magnetic metal substrates. The thickness of the non-conductive cover layer; it can quickly and accurately measure the thickness of coatings and coatings without damage. It can be used in the laboratory and engineering field. By using different probes, you can also meet the needs of a variety of measurements. This instrument can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is a professional instrument for material protection.
APPLICATION STANDARD:
GB / T 4956─2003
GB / T 4957─2003
JB / T 8393─1996
JJG 889─98
JJG 818─98
FEATURE:
1.Storage function: It can store 495 measured values with delete function. Delete single suspicious data in the measurement, or delete all saved data for new measure.
2. Alarm system: Value limits can be set. If the measured values exceed the Value limits, the test will automatically give an alarm.
3. Error alarm: Use screen display and buzzer to prompt error.
4. Power alarm: Power under voltage indicator function
5. Shut down: Manual shutdown mode and automatic shutdown mode.
Parameters
Product name |
T-100 Coating thickness gauge |
Probe Selection |
10 probes for optional
F1(Painting/ Planting/ Fire-resistant coating measurement)
F10(fire-resistant layer and within 10mm cover measurement)
Other probes: F400, F1/90°, F5, N400, N1, N1/90°,CN02,N10
|
Working Principle |
Magnetic induction and eddy current |
Accuracy |
F1: ±((1~2)%H+1)
F10: ±((1~3)%H+10)
N1: ±((1~2)%H+1)
|
Measure Range |
F1: 0~1250um
F10: 0~1000um
N1: 0~1250um
|
Minimum Curvature |
F1(3mm); F10(10mm); N1(4mm); F400(1mm) |
Minimum Area |
F1(φ7); F10(φ40); N1(φ5); F400(φ3) |
Measure Method |
Continuous Measurement method, single measurement method |
Statistics Method |
Mean value, Great value, Small value, Test times, Standard Deviation |
Detailed Images
Application
Contact US
Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
Get our in-time reply via email or telephone or instant messenger;
Get best product with excellent quality and competitive price;
One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service;
Feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost;
Easily make the payment via West Union, Paypal, T/T for small value order;
