Portable Ultrasonic Rebound Hammer/Concrete Test Instrument
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ultrasonic Pulse Velocity and Rebound Hammer SupplierNegotiableMOQ: 1 -
Non - Metal Ultrasonic Detector Ndt InstrumentsNegotiableMOQ: 1
-
Crack Width Gauge USB Flat Panel Crack Width Monitor PriceNegotiableMOQ: 1
-
Portable Concrete Rebar Detector Concrete Cover Meter for SaleNegotiableMOQ: 1
-
Non Metal Ultrasonic Testing for Concrete/foundation PilesNegotiableMOQ: 1
Ultrasonic Concrete Rebound Hammer
Product Description

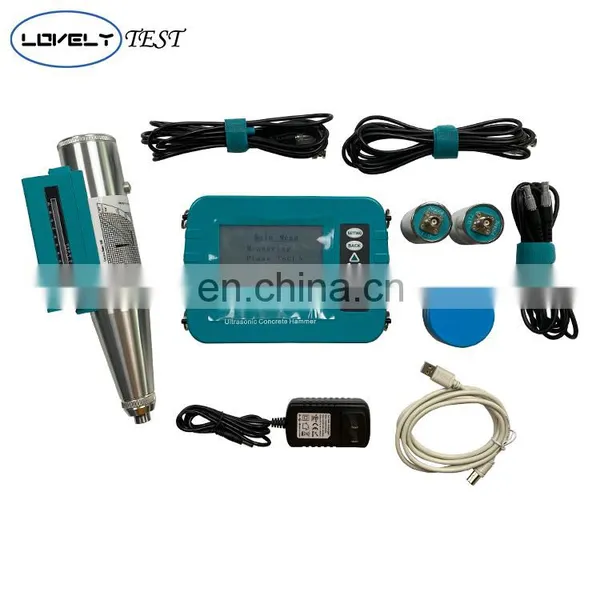

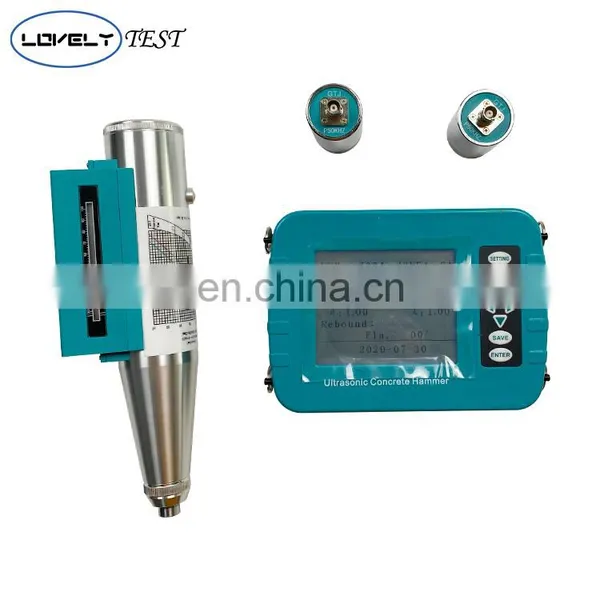

Portable Ultrasonic Concrete Detector is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Parameters
Host parameter |
Waterproof level: IP65 Screen size: 5inches Volume: 195x140x45mm Weight: 0.85kg |
Ultrasonic indication error |
±0.1μs |
Ultrasonic transducer operating frequency |
50KHz |
Instrument ultrasonic frequency range |
5Hz~500KHz |
Data transmission mode |
Wireless cloud transmission(optional) |
Springback apparatus nominal kinetic energy |
2.207J |
Stiffness of Spring strike |
785.0±40.0(N/m) |
Impact length of ram |
75±0.3mm |
Rebound value indication error |
＜±0.5 |
Rebound value average steel anvil rate |
80±2 |
Powder supply mode |
Large capacity lithium battery, power supply time is more than 8 hours |
Working environment |
-10~40℃ |
Packing specification |
Material: engineering plastic Volume: 420x140x335mm Weight: 5.5kg |
Main Features
1.New upgraded wireless cloud transmission function;
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
