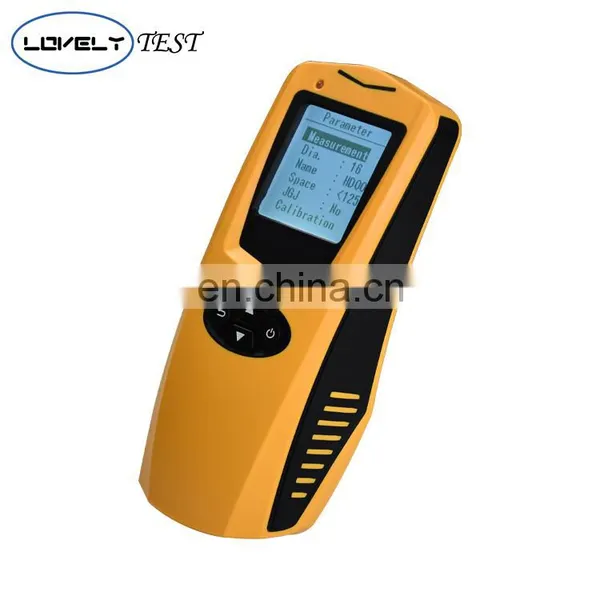

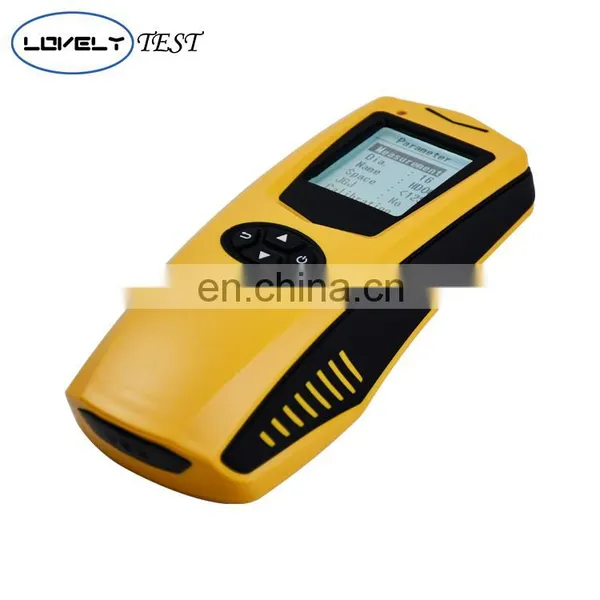

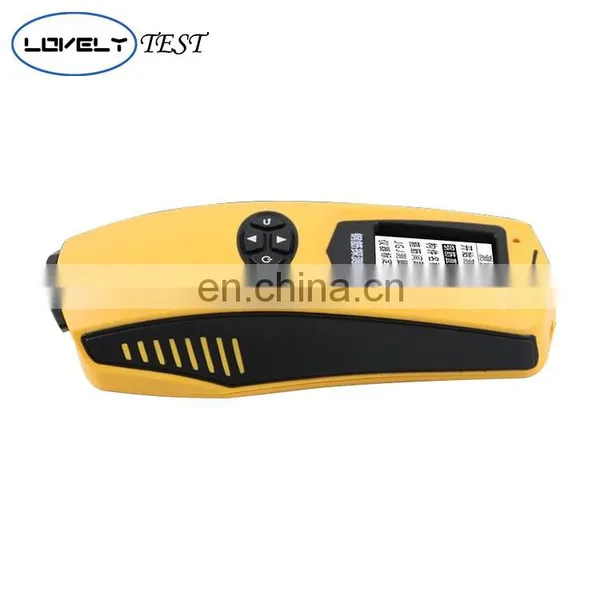

Portable Rebar Detector/Scanner
Usage Overview
The first generation portable rebar integrated detector uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data. The model is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology. series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls, columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts.
The multiple coil structure design make it more accurate＆responsive and higher resolution.
The multiple coil structure design make it more accurate＆responsive and higher resolution.
Product Features
1. measure the diameter of the rebars on the concrete surface; measuring range:φ6~φ50mm
2. measure the comcrete cover thickness; mesuring range:1~120mm
3. measures the location and orientation of reinforcement bar (rebar) or metal pipe.
2. measure the comcrete cover thickness; mesuring range:1~120mm
3. measures the location and orientation of reinforcement bar (rebar) or metal pipe.
Technical Parameters
Items |
Technical Spec. |
||
Diameter Measuring Range（mm） |
Ф6～Ф50 |
||
Measuring Range（mm） |
Location Range: 1～120 First Range: 1～60 Second Range: 30～120 |
||
Thickness Measuring Accuracy（mm） |
1～40 |
±1 |
|
41～60 |
±2 |
||
61～80 |
±3 |
||
81～100 |
±5 |
||
101～120 |
±8 |
||
Rebar Location Accuracy |
1～60 |
±3 |
|
61-120 |
±6 |
||
Diameter Measuring Modes |
Optional |
||
JGJ Measurement |
Optional |
||
Data Storage |
Optional |
||
Off Time |
Automatic |
||
Power Supply |
Rechargeable Lithium Battery |
||
Working Temperature |
-10℃～+42℃ |
||
Size（mm） |
188×145×140 |
||
Weight（kg） |
0.745 |
||
Our Advantages
a. Package: Each product is individually packaged, providing instructions for chargers etc.
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!
