Product Description
Product Usage and Features

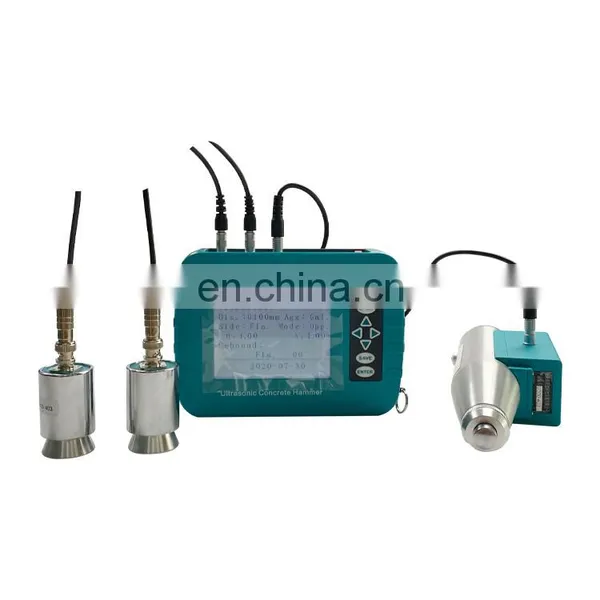

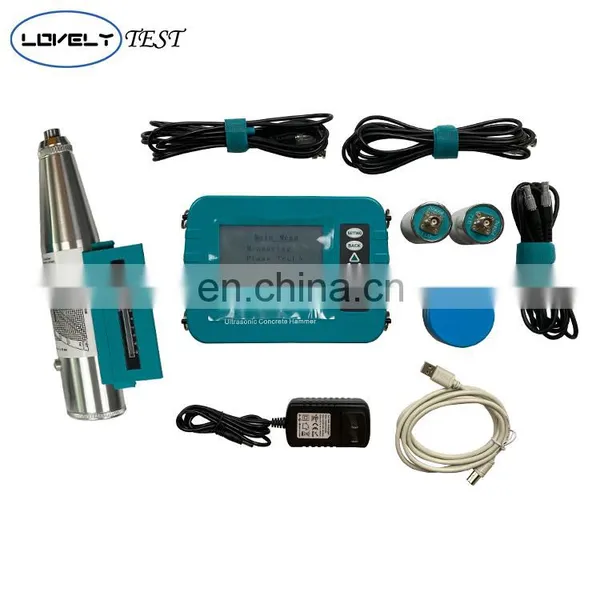

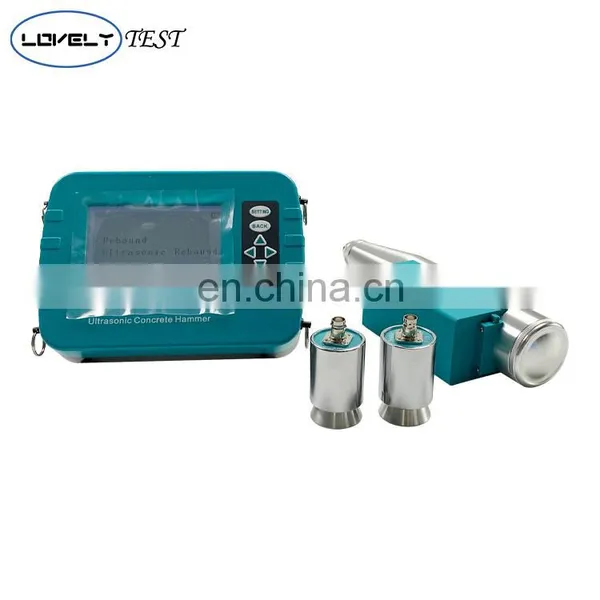

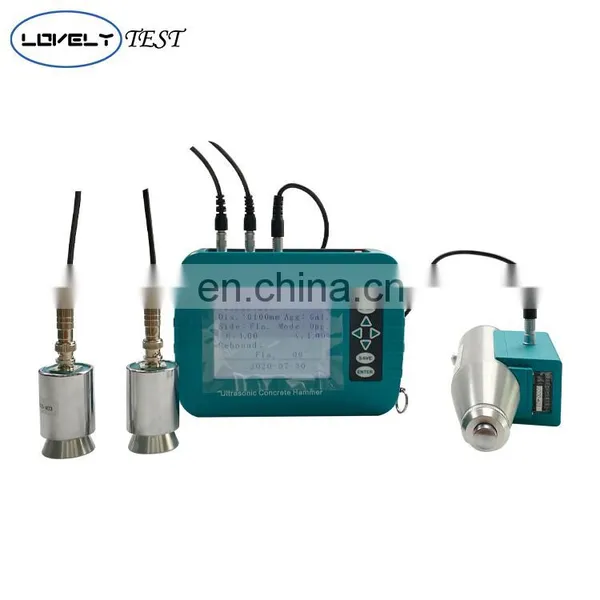

Concrete Ultrasonic Pulse Velocity Tester
Usage:
Concrete Ultrasonic Pulse Velocity Tester is used for testing both the surface and inner hardness of concrete with non nuclear method.
Concrete Ultrasonic Pulse Velocity Tester/Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Features:
1.New upgraded wireless cloud transmission function;
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic reboundmethod.It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
Parameters
Product name | U200 Ultrasonic pulse velocity tester |
Type | GTJ-U200 |
Waterproof level | IP65 |
Screen Size | 5 inches |
Ultrasonic Frequency | 50KHz |
Stiffness of Spring Strike | 785.0±40.0 (N/m) |
Impact Length of Ram | 75.0±0.3mm |
Power Supply Mode | Large capacity lithium battery. Working time over 8 hours. |
Working Environment | -10℃~40℃ |
Packing | Material: engineering plastic Volume:420*140*335mm Weight:5.5KGs |
