Hot Sale Soil Plate Load Test Apparatus Soil Bearing Testing Equipment
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Concrete Rebound Hammer Test Machine Iin Sale Factory PriceNegotiableMOQ: 1 -
Intelligent Concrete Crack Depth Detector Gauge Test Machine in FactoryNegotiableMOQ: 1
-
Wireless Crack Meter Concrete Crack Testing MachineNegotiableMOQ: 1
-
FKY Digital Crack Width Measuring InstrumentNegotiableMOQ: 1
-
Wireless Integrated Fracture DetectorNegotiableMOQ: 1
Hot sale Soil Plate Load Test Apparatus soil bearing testing equipment
Usage Overview
Ev2 Plate bearing test set is used to measure the settlement5 value of Subgrade under static load, so as to evaluate the bearing
capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway,
airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is
carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and
the corresponding central settlement value S of the bearing plate.
capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway,
airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is
carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and
the corresponding central settlement value S of the bearing plate.
Product Description
· Integral design, compact size
· Easy to carry and make work efficient
· Measurement data can be calibrated manually
Specification
Model |
EV2 |
||
Usage |
Deformation Testing Machine |
||
Rate of work |
Electronic |
||
Application |
Effective depth |
Normal condition 500mm |
|
Working ambient |
Working ambient -10℃~40℃ Humidity <90%HR |
||
Electeic sedimentation meter |
Size |
Screen size:3inch Overall size:100×205×40mm Net weight:0.8kg |
|
Storage amount |
400 groups testing curve |
||
Powder supply |
Lithium battery, 18hrs continuous work time |
||
Display method |
Chinese/English |
||
Printer |
Connection method |
Wireless Bluetooth printer |
|
Transducer |
Pressure transducer |
100kN |
|
Displacement, transducer |
25mm, 0.01mm |
||
Measure device |
Bearing plate |
Diameter:300mm Thickness:25mm Weight:17.5kg |
|
Loading device |
Hydraulic pump:100kN high pressure tube:2m Oil cylinder extensible rod:1*90mm,1*120mm, 1*160mm,1*160mm,2*60mm |
||
Sedimentation measure device |
Three point frame, flexible and rotary lever arm, adjustable base Dimension:2320*570*420mm Weight:12.5kg |
||

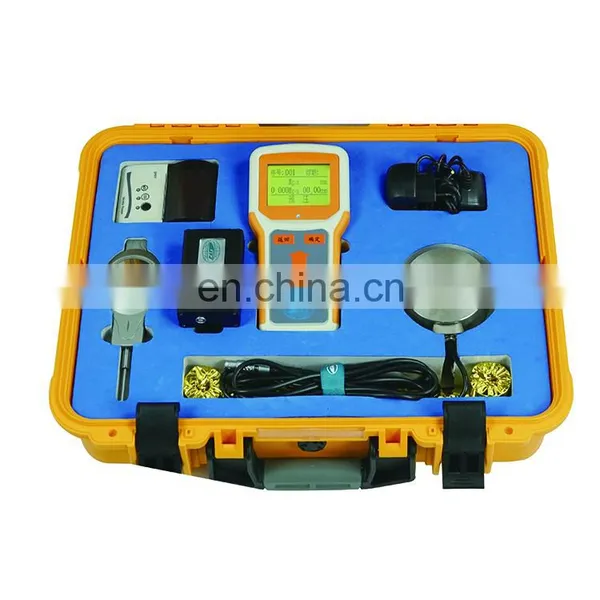

Unpacking display
Our Advantages
1.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization.
2.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof
capability and ensures accurate data.
3.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with
backlight, has better visibility in various environments;
4.Automatically calculate Ev1, Ev2 and Ev2/Ev1 values and display curves.
5.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the
test results.
6.USB transmission interface, easy to connect with the computer.
2.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof
capability and ensures accurate data.
3.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with
backlight, has better visibility in various environments;
4.Automatically calculate Ev1, Ev2 and Ev2/Ev1 values and display curves.
5.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the
test results.
6.USB transmission interface, easy to connect with the computer.
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
