Ev2 Static Deformation Modulus Tester
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
Product Description

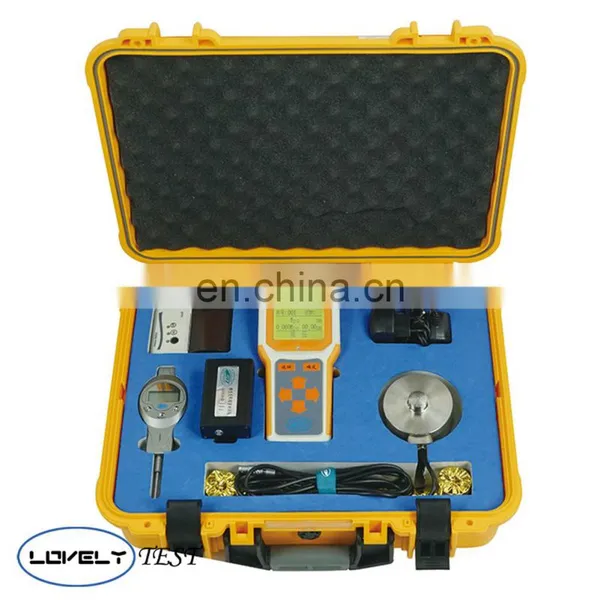

Ev2 Plate Bearing Test Set Static Deformation Testing Machine
Usage Overview
1. Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade.
2. It is suitable for monitoring and monitoring the construction quality of railway, highway,
airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
3. After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.
airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
3. After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.
Product Features
1. | Imported sensors and parts of components are used to achieve high test accuracy. |
2. | Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization. |
3. | The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data. |
4. | LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environments. |
5. | Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.6.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results. |
6. | USB transmission interface, easy to connect with the computer. |
Specification
Product | Static Deformation Testing Plate Bearing Test Set | ||
Application | Effective depth | 0~ 500mm | |
Working ambient | Working ambient -10℃~40℃ Humidity <90%HR | ||
Electeic sedimentation meter | Size | Screen size:3inch Overall size:100×205×40mm Net weight:0.8kg | |
Storage amount | 400 groups testing curve | ||
Powder supply | Lithium battery, over 18hrs continuous work time | ||
Display method | Chinese/English | ||
Printer | Connection method | Wireless Bluetooth printer | |
Transducer | Pressure range | 100kN | |
Displacement range | 25mm | ||
Displacement resolution | 0.01mm | ||
Measure device | Bearing plate | Diameter:300mm Thickness:25mm Weight:17.5kg | |
Loading device | Hydraulic pump:100kN high pressure tube:2m Oil cylinder extensible rod:1*90mm,1*120mm, 1*160mm,1*160mm,2*60mm | ||
Sedimentation measure device | Three point frame (with flexible and rotary lever arm, adjustable base) Dimension:2320*570*420mm Weight:12.5kg | ||
Our Advantages
a. Package: Each product is individually packaged, providing instructions for chargers etc.
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!
Our customer
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and also can ship by air via express company
