Ultrasonic Pulse Velocity and Pulse Echo Testing of Concrete
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Supplier of Ultrasonic Pulse Velocity Test Equipment for ConcreteNegotiableMOQ: 1 -
Hot Sale PIT/Pile Integrity Tester for Low Strain TestingNegotiableMOQ: 1
-
Low Strain Pile Integrity Test EquipmentNegotiableMOQ: 1
-
Pile Integrity Testing - NDT SupplierNegotiableMOQ: 1
-
Low Strain Foundation Piles Integrity Testing or PITNegotiableMOQ: 1
Ultrasonic Concrete Rebound Hammer
Product Description

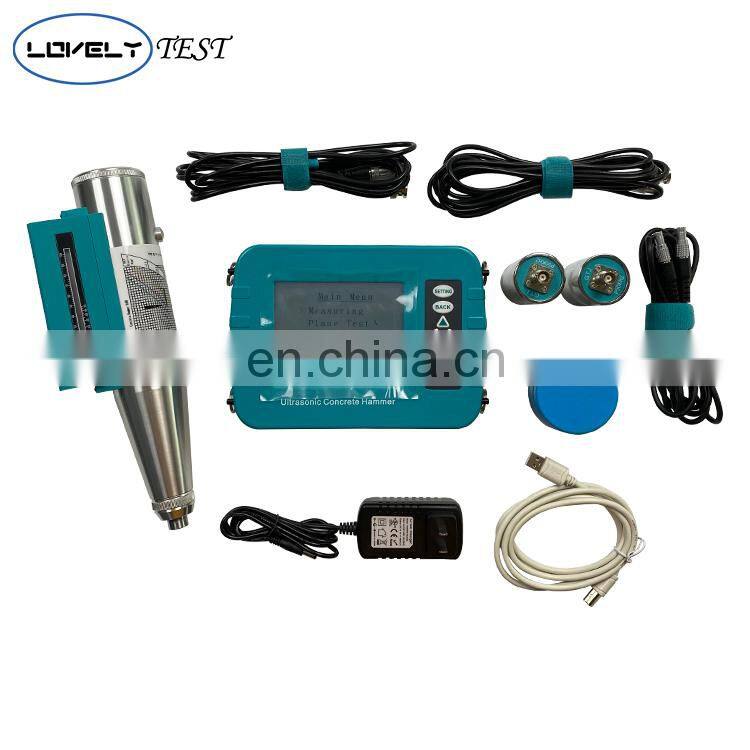

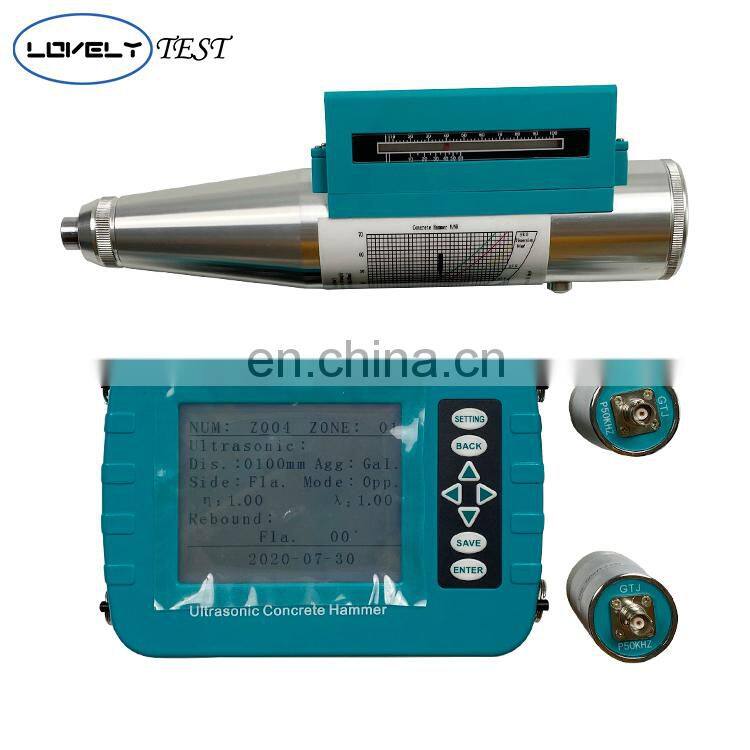

Portable Ultrasonic Concrete Detector is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Parameters
Host parameter | Waterproof level: IP65 Screen size: 5inches Volume: 195x140x45mm Weight: 0.85kg |
Ultrasonic indication error | ±0.1μs |
Ultrasonic transducer operating frequency | 50KHz |
Instrument ultrasonic frequency range | 5Hz~500KHz |
Data transmission mode | Wireless cloud transmission(optional) |
Springback apparatus nominal kinetic energy | 2.207J |
Stiffness of Spring strike | 785.0±40.0(N/m) |
Impact length of ram | 75±0.3mm |
Rebound value indication error | ＜±0.5 |
Rebound value average steel anvil rate | 80±2 |
Powder supply mode | Large capacity lithium battery, power supply time is more than 8 hours |
Working environment | -10~40℃ |
Packing specification | Material: engineering plastic Volume: 420x140x335mm Weight: 5.5kg |
Main Features
1.New upgraded wireless cloud transmission function;
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
Application
Contact US
Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
get our in-time reply via email or telephone or instant messenger;
get best product with excellent quality and competitive price;
One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service;
feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost;
easily make the payment via West Union, Paypal, T/T for small value order;
