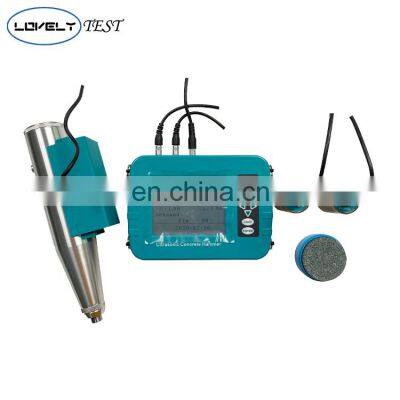

Digital Concrete Ultrasonic Rebound Hammer Concrete Test Instrument

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Usage and Features

Concrete Ultrasonic Pulse Velocity Tester

USAGE OVERVIEW:

Concrete Ultrasonic Pulse Velocity Tester is used for testing both the surface and inner hardness of concrete with non nuclear method.

Concrete Ultrasonic Pulse Velocity Tester/Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.

PRODUCT FEATURE:

1. It adopts three anti- shell design waterproof, dustproof and shockproof;

2. Multi-function: Two methods to test the compressive strength of concrete: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.

3. High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;

4. Easy to use: full English interface, with prompts, quick learning to conduct on-site testing;

5. Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.

Parameters

Product name	U200 Ultrasonic pulse velocity tester
Type	GTJ-U200
Host Parameter	Screen Size:5 inches Volume:19514045mm Weight:0.85kg Waterproof level：IP65
Ultrasonic indication Error	±0.1μs
Ultrasonic Work Frequency	50KHz
Ultrasonic Frequency Range	5Hz~500KHz
Stiffness of Spring Strike	785.0±40.0 (N/m)
Impact Length of Ram	75.0±0.3mm
Impact Energy	2.207J
Average rebound value	80±2
Power Supply Mode	Large capacity lithium battery. Working time over 8 hours.
Working Environment	-10℃~40℃
Packing	Material: engineering plastic Volume:420140335mm Weight:5.5KGs

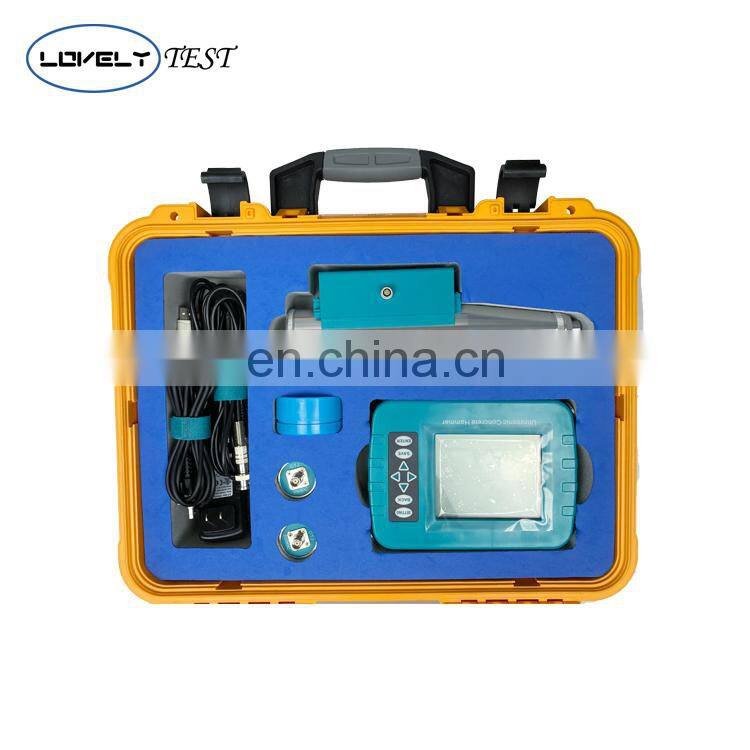

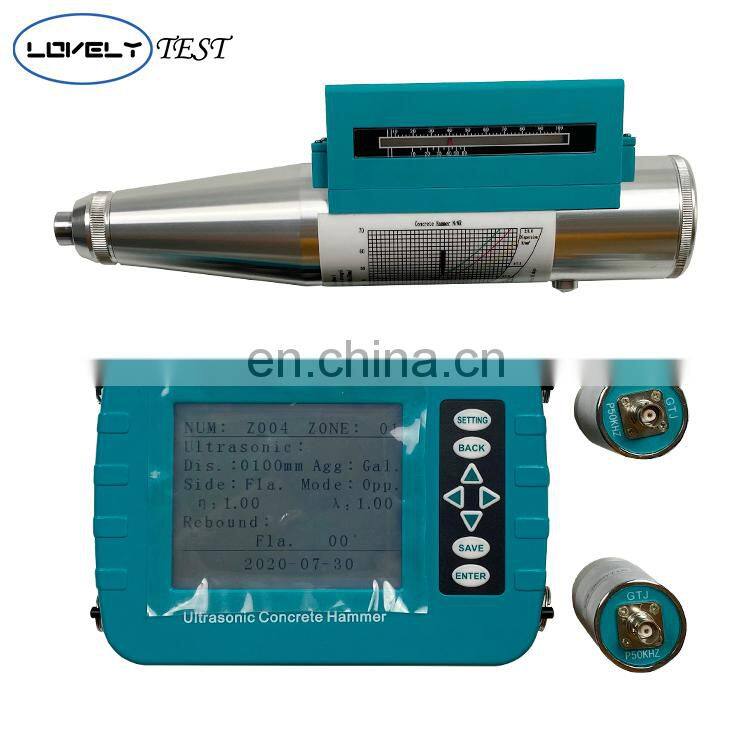

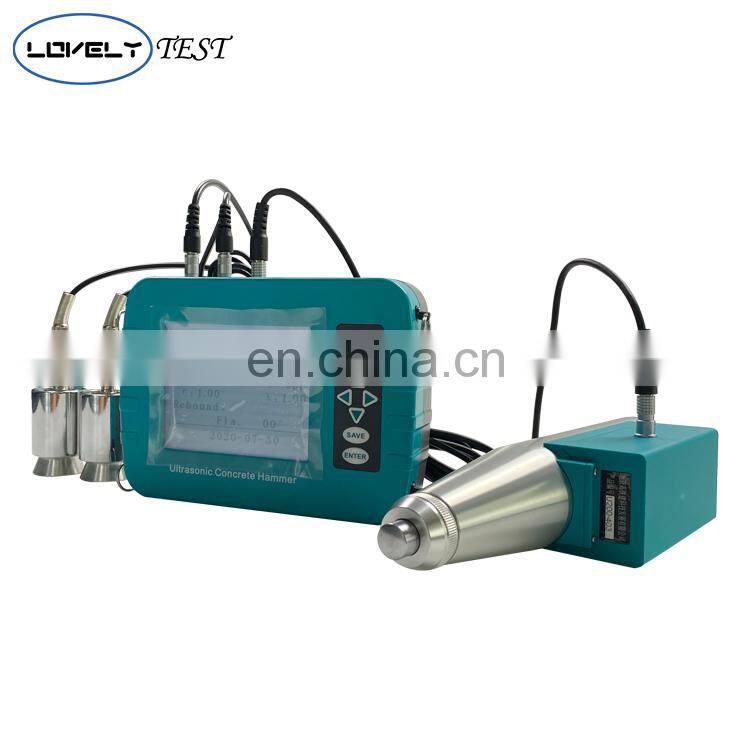

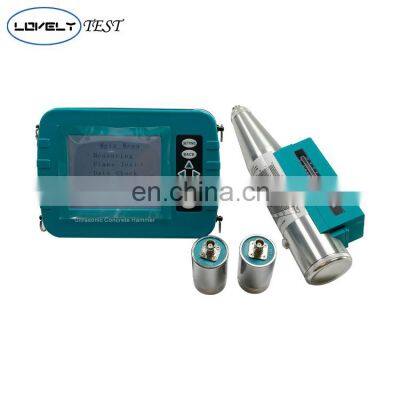

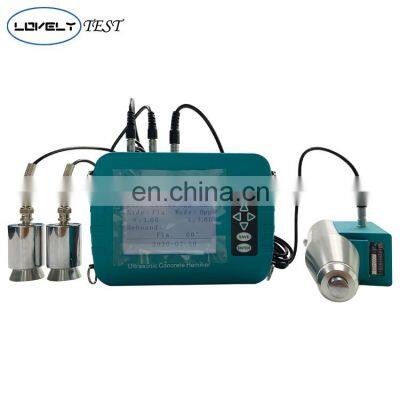

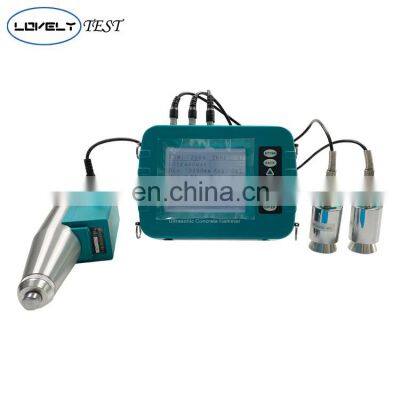

Detailed Images

We wait for your inquires.

Any questions, welcome to contact our product specialist online!

Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years, With advanced technologies and best customer service, Our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.

We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.

We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.

Our Customers and patent certificate

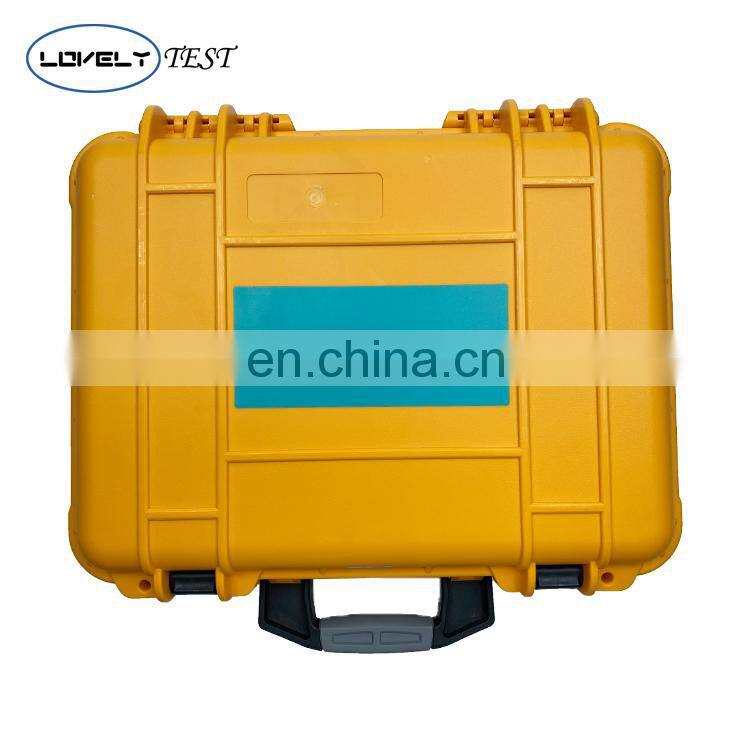

Packing & Delivery

FAQ

Q1: How long is the lead time? A: Normally 3-7 days. Depend on the order quantity. Q2: What is the transportation method? A: By Express, By air or By Sea. Q3: What are the payment terms? A: Credit card ,Bank Wire Transfer, L/C, Western Union etc. Q4: How is the after-sales service? A: 12 months quality warranty with online technical support. Q5: Are there any factory quality certificates? A: We have the ISO certificate and National patent certificates. Q6: Is Lovely test trustworthy? With more than 12 years' production experience. We would give you an excellent experience!
