Rebar Detectors
Product Description

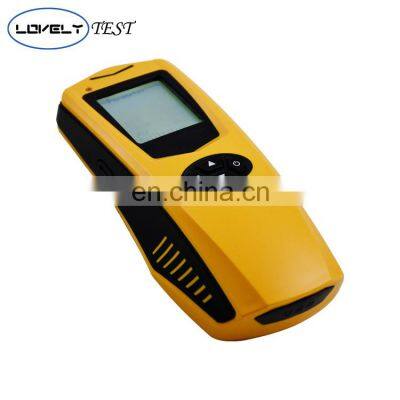

The first generation portable rebar integrated detector uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data. The model is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology.
series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls, columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts. The multiple coil structure design make it more accurate＆responsive and higher resolution.
series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls, columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts. The multiple coil structure design make it more accurate＆responsive and higher resolution.
Parameters
Items | Technical Spec. | ||
Diameter Measuring Range（mm） | Ф6～Ф50 | ||
Measuring Range（mm） | Location Range: 1～120 First Range: 1～60 Second Range: 30～120 | ||
1～40 | ±1 | ||
41～60 | ±2 | ||
61～80 | ±3 | ||
81～100 | ±5 | ||
101～120 | ±8 | ||
1～60 | ±3 | ||
61-120 | ±6 | ||
Diameter Measuring Modes | Optional | ||
JGJ Measurement | Optional | ||
Data Storage | Optional | ||
Off Time | Automatic | ||
Power Supply | Rechargeable Lithium Battery | ||
Working Temperature | -10℃～+42℃ | ||
Size（mm） | 188×145×140 | ||
Weight（kg） | 0.745 | ||
Main Features
◆ The high resolution LCD display: 128 x 128 pixels;
◆ The intuitive operation and handheld ergonomic design with good durability;
◆ Accurately detect the location of the rebar;
◆ Help extend life of drill and avoid damage when drilling and coring;
◆ The multi coil structure design with high speed, high precision and high resolution;
◆ The built-in high capacity lithium battery, low power consumption, standby for no less than 20h.
◆ The intuitive operation and handheld ergonomic design with good durability;
◆ Accurately detect the location of the rebar;
◆ Help extend life of drill and avoid damage when drilling and coring;
◆ The multi coil structure design with high speed, high precision and high resolution;
◆ The built-in high capacity lithium battery, low power consumption, standby for no less than 20h.
Application
