Product Description

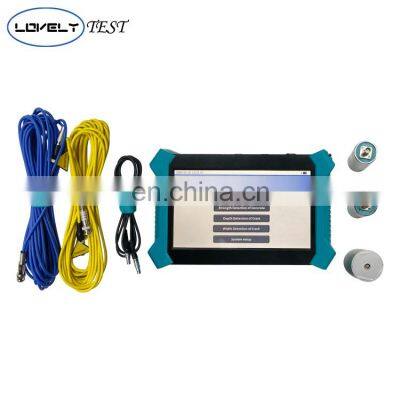

U910 Non-metallic Ultrasonic Detector
Product Description
U910/U920 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
Parameters
Product Model | U910 | U920 | U930 |
Master control unit | Built-in A8 industrial control motherboard | Built-in A8 industrial control motherboard | Built-in A8 industrial control motherboard |
Display | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen |
Operational mode | Touch screen | Touch screen | Touch screen |
Storge mode | Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk | Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk | Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk |
Data transmission mode | Wireless cloud transport(Options) | Wireless cloud transport(Options) | Wireless cloud transport(Options) |
Acquistion mode | Single-channel manual point-by- point acquistion | Manual Point-by-point Collection of single and double channels | Single and Double channel automatic continous and fast aquistion |
Number of disposable profiles | - | - | Two |
Channel Number | 1 transmit+1 receive | 1 emission+2 reception | 1 emission +2 reception |
Trigger mode | Signal triggering | Signal triggering | Signal triggering |
Sampling period(mμs) | 0.05~409.6 Multtistage Options | 0.05~409.6 Multtistage Options | 0.05~409.6 Multtistage Options |
Acoustic Time Accuracy(μs) | 0.05 | 0.05 | 0.05 |
Acoustic time range(mμs) | +1677700 | +1677700 | +1677700 |
Width mesaurement fuction | Measuring range:0~10mm; Measurement accuracy: 0.01mm | Measuring range:0~10mm; Measurement accuracy: 0.01mm | Measuring range:0~10mm; Measurement accuracy: 0.01mm |
Dynamic range(dB) | One hundred and forty-six | One hundred and forty-six | One hundred and forty-six |
Bandwidth(kHz) | 1~500 | 1~500 | 1~500 |
Receiving Sensitivity(UV) | Less than 10 | Less than 10 | Less than 10 |
Gain Accuracy(dB) | 0.5 | 0.5 | 0.5 |
Emission Voltage(V) | 65, 250, 500 and 1000 gear adjustable | 65, 250, 500 and 1000 gear adjustable | 65, 250, 500 and 1000 gear adjustable |
Communication interface | USB, Bluetooth, Wifi | USB, Bluetooth, Wifi | USB, Bluetooth, Wifi |
Working hours | more than 8 | more than 8 | more than 8 |
Powder supply mode | Built-in lithium battery External 220V~16V AC/DC | Built-in lithium battery External 220V~16V AC/DC | Built-in lithium battery External 220V~16V AC/DC |
Working environment | -10~40℃ Humidty (RH) ＜90% | -10~40℃ Humidty (RH) ＜90% | -10~40℃ Humidty (RH) ＜90% |
Host size(mm) | 300x200x55 | 300x200x55 | 300x200x55 |
Main Features
1.New upgraded wireless cloud transmission function;
2.Five functions of measuring pile, measuring strength, measuring defect, sounding depth and width measuring;
3.Stable performance and powerful function, it is the best choice for users with diverse needs
such as engineering inspection, teaching and scientific research;
such as engineering inspection, teaching and scientific research;
4.Semi-transparent, high-brightness, TFT color LCD screen;
5.Full touch screen operation, simple and convenient, stable and reliable;
6.Large memory capacity and working time of more than 10 hours;
7.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound;
7.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound;
8.U-disk transfers data and supports software upgrading through U-disk;
9.Special analysis software is powerful, data analysis and processing, report generation, and report printing can be completed easily .
