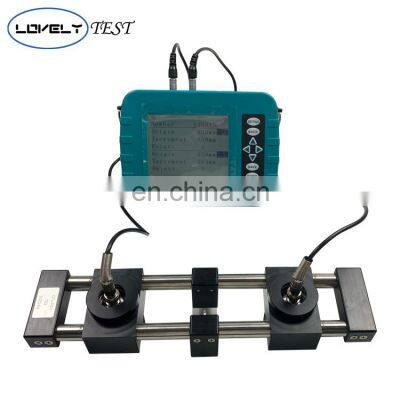

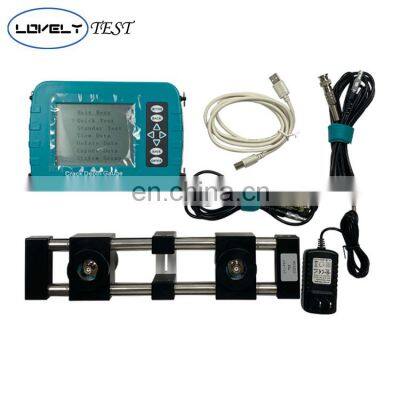

Ultrasonic Crack Depth Measurement of Surface Concrete
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Ultrasonic Pulse Velocity Testers for Pile and Concrete
-
Same as the Pundit Lab Ultrasonic Concrete Test Equipment
-
Ultrasonic Concrete Testing Equipment/Pile Test
-
Concrete Ultrasonic Detector/Ultrasonic Pulse Velocity Tester
-
HT 225 Rebound Hammer Test on Concrete
-
Sclerometer for Concrete/Rebound Hammer Test on Concrete
Product Description
Product Usage and Features
FSY Concrete Crack Depth Gauge
FSY Crack depth gauge is based on the principle of acoustic diffraction to measure the crack depth of concrete surface.
PRODUCT FEATURE:
1.New upgraded wireless cloud transmission function; 2.It adopts three anti-shell design, waterproof, dustproof and shockproof;
3.On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth;
4.The instrument is easy to operate, fast to master, no need for professional knowledge;
3.On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth;
4.The instrument is easy to operate, fast to master, no need for professional knowledge;
5.High accuracy, the maximum error is not more than 5 mm or 2%-10% of the actual seam depth.

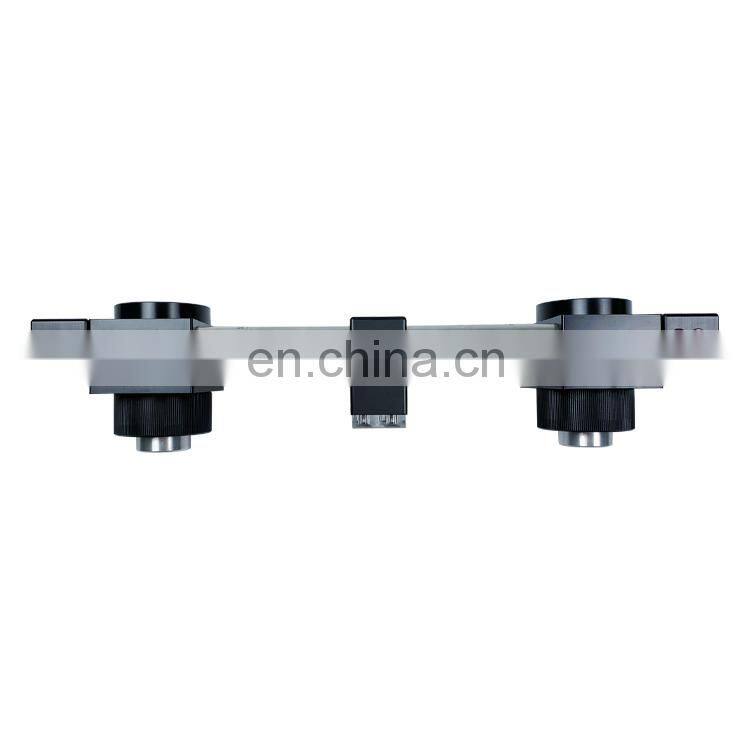

6.Use bracket test without scribing, accurate spacing, adjustable, greatly improving test efficiency.
Parameters
Crack depth test range | ≤500mm |
Test error | ≤5mm or 2% to 10% of the actual depth |
Data storage capacity | 20000 sets |
Data transmission method | Wirelrss cloud transmission(optional) |
Power supply | Large capacity lithium battery |
Working environment | Temperature:-10℃~40℃ Humidity:<90%RH |
Packing specification | Material:engineering plastic Volume:420*140*335mm Weight:5.5kg |
Detailed Images
Application
Contact US
Cangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
Get our in-time reply via email or telephone or instant messenger;
Get best product with excellent quality and competitive price;
One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service;
Feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost;
Easily make the payment via West Union, Paypal, T/T for small value order;
