Non-metallic Ultrasonic Detector/ Ultrasonic Method for Pile Test

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

U930 Non-metallic ultrasonic detector/ Cross Hole Logging for Piles

Product Usage and Features

It is especially suitable for testing large-diameter piles, secant pile walls, and slurry-wall elements.

If a defect is found, the steel tubes may be pierced at the corresponding depth and the pile repaired by grouting.

USAGE OVERVIEW

U930 Non-metallic ultrasonic detector(multi-tube measuring pile)Ultrasonic transmission method for
pile integrity testing, Structural concrete compressive strength, crack depth, crack width and defect detection; Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.

PRODUCT FEATURES

1.Newly upgraded wireless cloud transmission function;

2.With stable performance and powerful functions, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;

3.It integrates five functions of pile, strength measurement, defect measurement, sounding and width measurement.

4.Full touch screen operation, simple, convenient, stable and reliable;

5.Multichannel automatic acquisition, automatic recording of high harmony time waveform;

6.The deep recording wheel adopts dustproof and waterproof design;

7.Large memory capacity, working time up to 10 hours or more;

8.It can directly connect the digital rebound rifle probe to the ultrasonic rebound comprehensive method for measuring strength;

9.U disk dump data, support software upgrade through U disk;

10.The special analysis software has powerful functions, data analysis and processing, report generation and report printing can be easily completed.

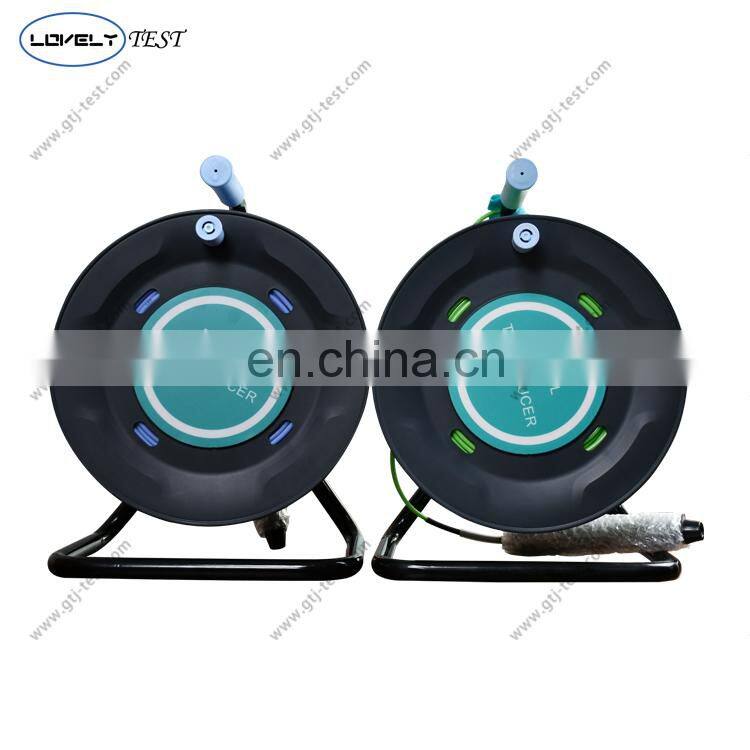

11.The transducer spool is designed with a current collecting ring, and the signal cable is retractable to prevent the cable from being twisted.

Technical Parameters

Product Model	U930	U960
Master control unit	Buit-in A9 industrial control motherboard	Buit-in A8 industrial control motherboard
Display	10.1 inch, high brightness, TFT color LCD capacitive screen	10.1 inch, high brightness, TFT color LCD capacitive screen
Operational mode	Touch screen	Touch screen
Storage mode	Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk	Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk
Data transmission mode	USB, Wireless Cloud Transport(Options)	Wireless Cloud Transport(Options)
Acquisition mode	Synchronous continuous rapid acquisition	Synchronous continuous rapid acquisition
One-time section mumber	2	6
Channel number	1 emission + 2 reception
Trigger mode	Signal triggering	Signal triggering
Sampling period(μs)	0.05~409.6 Multistage Options	0.05~409.6 Multistage Options
Acoustic time accuracy(μs)	0.05	0.05
Acoustic time range(μs)	+1677700	+1677700
Width measurement function	Range: 0~10mm Accuracy: 0.01mm	Range: 0~10mm Accuracy: 0.01mm
Dynamic range(dB)	146	146
Bandwidth(kHz)	1~500	1~500
Receiving sensitivity(μV)	≤10	≤10
Emission voltage(V)	65, 250, 500 and 1000 gears adjustable	65, 250, 500 and 1000 gears adjustable
Communication	UBS, Bluetooth, Wifi	UBS, Bluetooth, Wifi
Working hours(h)	More than 8	More than 8
Power supply mode	Built-in lithium battery External 220V~ 16V AC/CD	Built-in lithium battery External 220V~ 16V AC/CD
Working environment	Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%	Temperature(℃) -10℃~ + 40℃Humidity(RH) <90%
Host size(mm)	30020055	30020055

Detailed Images

Company Introduction

Cangzhou Lovely Technology Co.,Ltd.

Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.

Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.

Packing & Delivery

After Sales Service

FAQ

Q1: How long is the lead time? A: Normally 3-7 days. Depend on the order quantity. Q2: What is the transportation method? A: By Express, By air or By Sea. Q3: What are the payment terms? A: Credit card ,Bank Wire Transfer, L/C, Western Union etc. Q4: How is the after-sales service? A: 12 months quality warranty with online technical support. Q5: Are there any factory quality certificates? A: We have the ISO certificate and National patent certificates. Q6: Is Lovely test trustworthy? With more than 12 years' production experience. We would give you an excellent experience!
