Cheese Head Arc Stud Welding / Shear Connector Welding Bolt M10-M25
- 100 Ton / Tons per Month
- Xingang
- T/T L/C PayPal
You May Like
-
Plain Carbon Steel Welding Bolt Cheese Head Arc Stud Welding With Ceramic Ring
-
Phosphating Class 4.8 Steel Mechanical Fasteners UNF Thread
-
40Cr Steel Mechanical Hub Bolt Wheel Stud For Automotive Industry
-
Steel Mechanical Fixings and Fasteners Machine Screws with Different Head Types and Specifications
-
Carbon Steel Countersunk Head T Shaped Bolts SAE J429
-
DIN580 Grade 10.9 Zinc Plated Finish Lifting Eye Bolts
Product Details
Brand Name | FLRS | Place of Origin | China | |
Model Number | B-009 | Standard | DIN |
Product Description
Material: | SWRCH15A,SWRCH18A,S235J2+C450 | Standard: | DIN EN ISO 13918 |
---|---|---|---|
Size: | M10-M25 | Finish: | Polish, Phosphating, Nature |

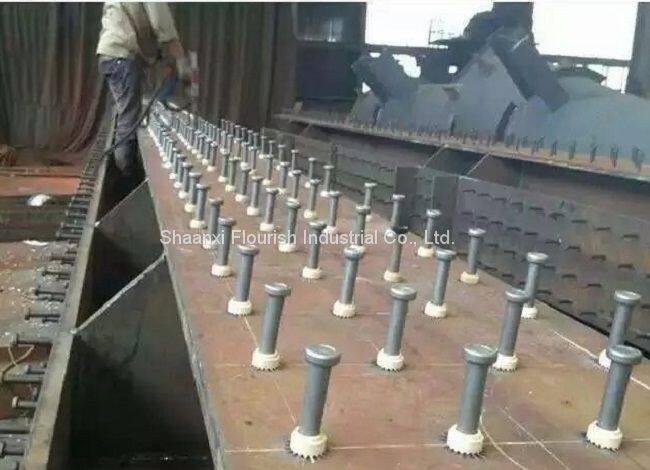

Application: | Steel Structure, Bridge, Building,Road, Railway | Ceramic Ring: | Without |
High Light: | Cheese Head Shear Stud Welding, ISO 13918 Shear Stud Welding, ISO 13918 Shear Stud Bolt |

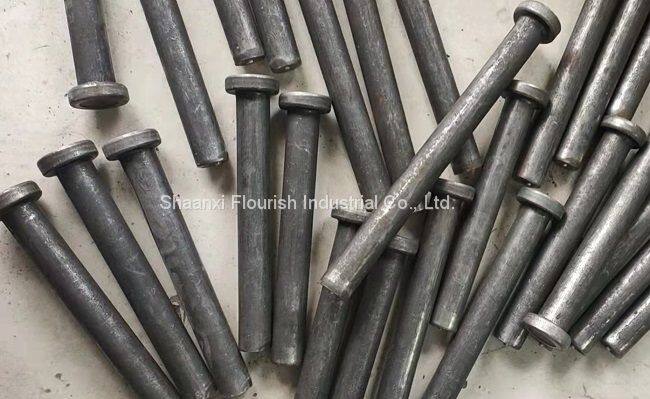

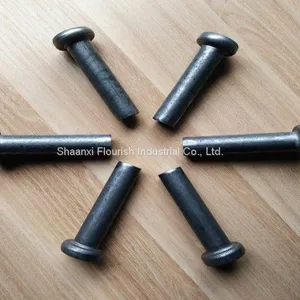

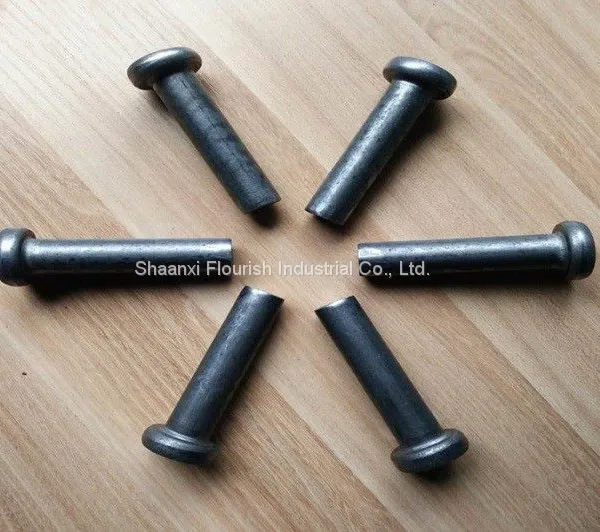

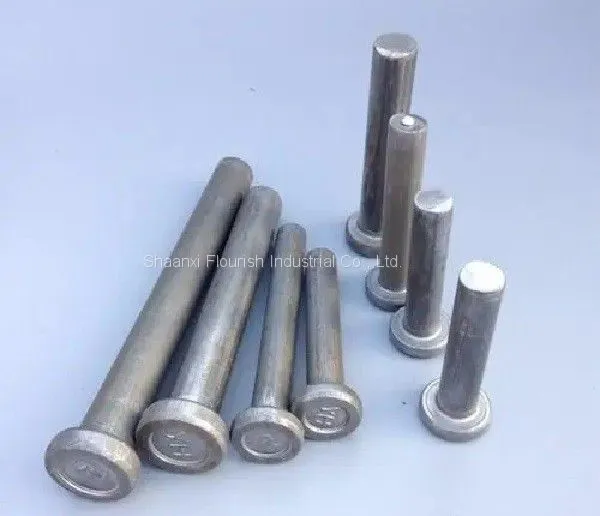

Cheese Head Arc Stud Welding / Shear Connector Welding Bolt / M10-M25 Shear Studs
Shear stud belong to a kind of high-strength rigid connection fasteners. Shear studs are the abbreviation of cylindrical head welding bolt for arc stud welding (English Cheese head studs for arc stud welding).

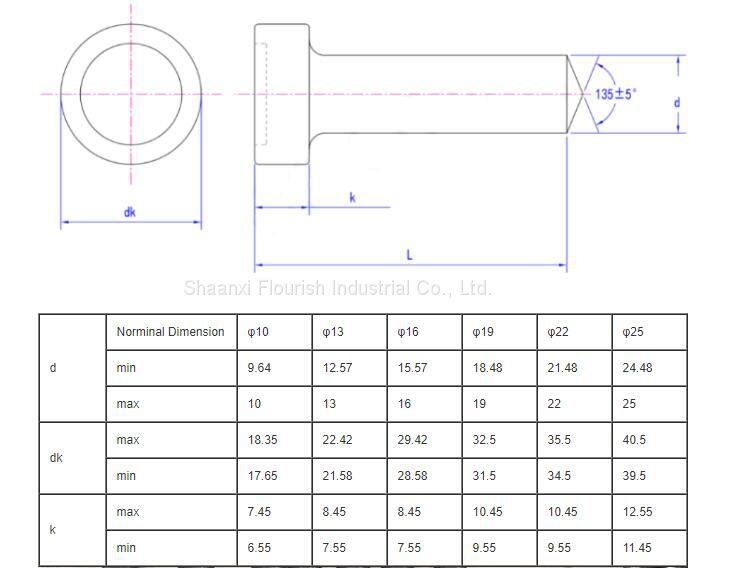

The specifications of Shear studs are nominal diameter Ф10~Ф25mm, The total length before welding is 40~300 mm. Shear studs have the manufacturer's identification mark made by embossing on the top surface of the head, and the shear studs have a wide range of uses.
