Product Description

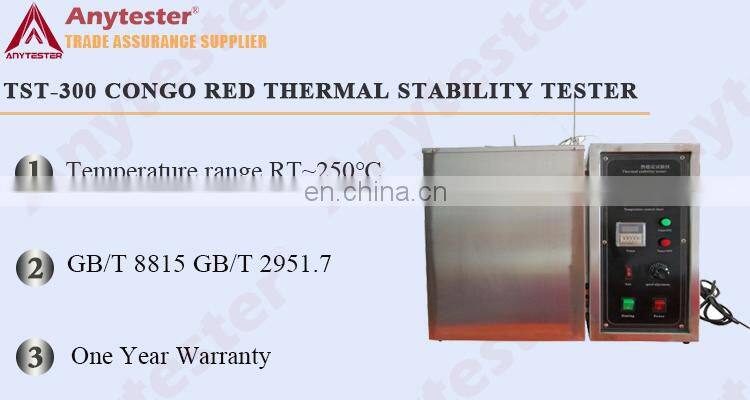

TST-300 Congo Red Thermal Stability Tester
TST-300 Congo Red Thermal Stability Tester is used to determine the thermal stability of PVC compounds for insulating and sheathing materials of electric cables.
Test principle:
Place about (50±5)mg sample into a specified glass tube. The glass tube is placed into oil bath at the temperature of (200±0.5)℃. A Congo red paper or common PH paper is inserted into the glass tube; its other end is folded and hung on the top wall of glass tube. Record the time during the Congo red paper becomes from red to blue (the common PH paper becomes from PH5 to PH3). The time of color change is expression of the thermal stability.
Specification
Model | TST-3000 |
Temperature range | RT~250℃ |
Temperature resolution | 0.1℃ |
Timer range | 0~99.99s |
Chamber capacity | 3000ml |
Glass tube size | Length: 1100mm External diameter: 5mm Inner diameter: 4mm |
Test paper | Congo red paper or PH paper |
Heating oil required | 2# lubricating oil or insulating oil |
Heater power | 1.25kW |
Power supply | AC220V 50Hz |
Dimensions | 420mm×200mm×250mm (L×W×H) |
Details and Features
Our Company
Packing&Delivery
Packing | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | |||
FOB | ||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | |||||
CIF | ||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||||
West Union | Amount lower than 5000usd | |||||
Delivery Time | 7~10days after receiving payment for one container | |||||
