Easy to Opreate Laboratory Ring Frame Spinning Machine for Customized

Easy to Opreate Laboratory Ring Frame Spinning Machine for Customized photo-1
Easy to Opreate Laboratory Ring Frame Spinning Machine for Customized photo-2
Easy to Opreate Laboratory Ring Frame Spinning Machine for Customized photo-3
Easy to Opreate Laboratory Ring Frame Spinning Machine for Customized photo-4
Easy to Opreate Laboratory Ring Frame Spinning Machine for Customized photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

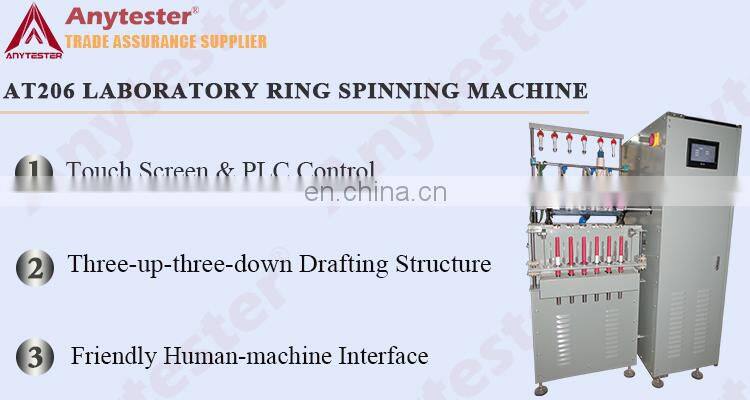

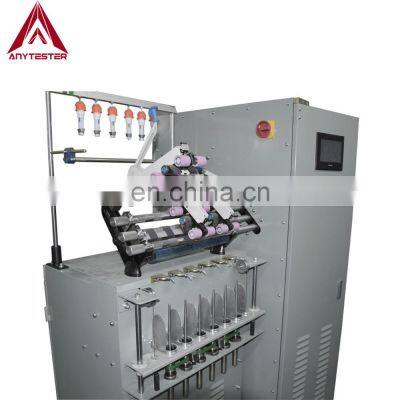

AT206 Laboratory Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method.
Specification
Model
AT206
Number of spindles
6
Fiber type
Cotton or cotton-type chemical fibers
Customized for wool
Twist range
50~250twists/meter
Draft range
Approx. 2~50
Output capacity
0.25~0.5kg/h
Roller diameter
Φ25/25/25mm
Ring diameter
Φ38 ~ 45mm
Spindle speed
Max. 12000rpm
Bobbin length
205mm
Twist direction
Z or S, settable
Power supply
AC220V 50Hz, 550W
Details & Features
1. Mini machine, save researching cost and easy to operate and maintain;

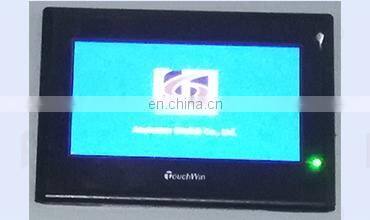

2. Touch screen & PLC control;

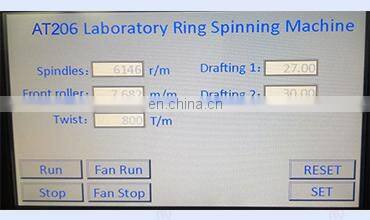

1. Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
1. Frequency converter of high efficiency to control roll speed;
2. Pressurizing system :spring pressure cradle;

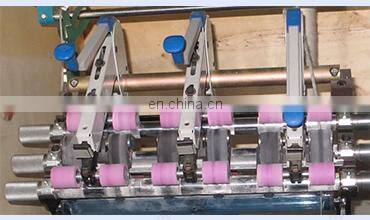

3. Three-up-three-down drafting structure;
4.Optional special program for spinning slub yarn on this ring spinning machine;
Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery
Packaging



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
