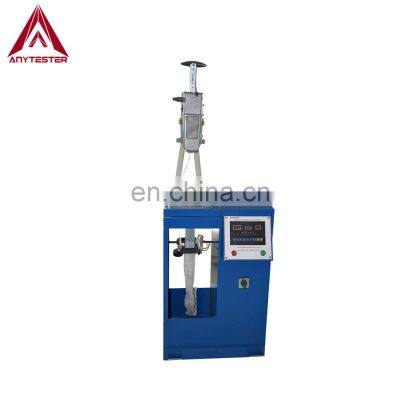

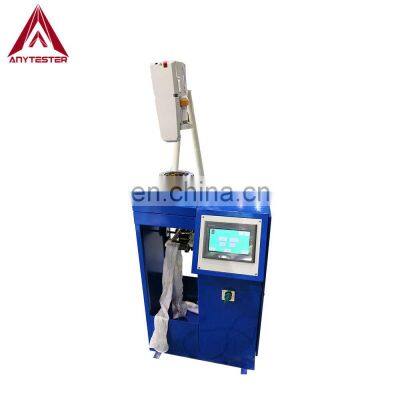

Series Lab Knitting Machine
AT250F Series Lab Knitting Machine is specially designed to knit fabric sample of POY, DTY or FDY for the assessment of yarn uniformity and dyeing affinity. It is applicable to various filaments of 30~1000dtex. It is an ideal equipment for dyeing test in knitting factories.
Specification
Model | AT250F-I | AT250F-II | AT250F-III | ||
Needle cylinder diameter | ¢89mm (3.5inch) | ||||
Number of feeder | 1 | ||||
Number of needles | 144~300N | ||||
Running speed | 180r/min | 300r/min | 10~300r/min, adjustable | ||
Display mode | LED display | Touch screen display | |||
Applicable filament | POY (customized), DTY, FDY | ||||
Applicable filament fineness | 25~1000dtex | ||||
Power supply | AC380V 50Hz, three-phase | AC220V 50Hz, single-phase | |||
Dimensions(L×W×H) | 720×360×1450mm | 720×490×1450mm | 360×720×1450mm | ||
Weight | 85kg | 100kg | 100kg |
Details and Features
★ Equipped with filament storage device;
★ Applicable to various filaments of 25~1000dtex, such as POY, DTY and FDY;
★ Standard needle cylinder has 240 needles; other needle cylinder with different needles are optional;
Relationship between the filament fineness and number of needles are as below:
★ Adjustable running speed up to 300rpm (only for AT250F-III);
★ Automatic knitted fabric tension device;
★ LED display for AT250F-I and -II while touch screen for AT250F-III;
★ Stable and reliable;
