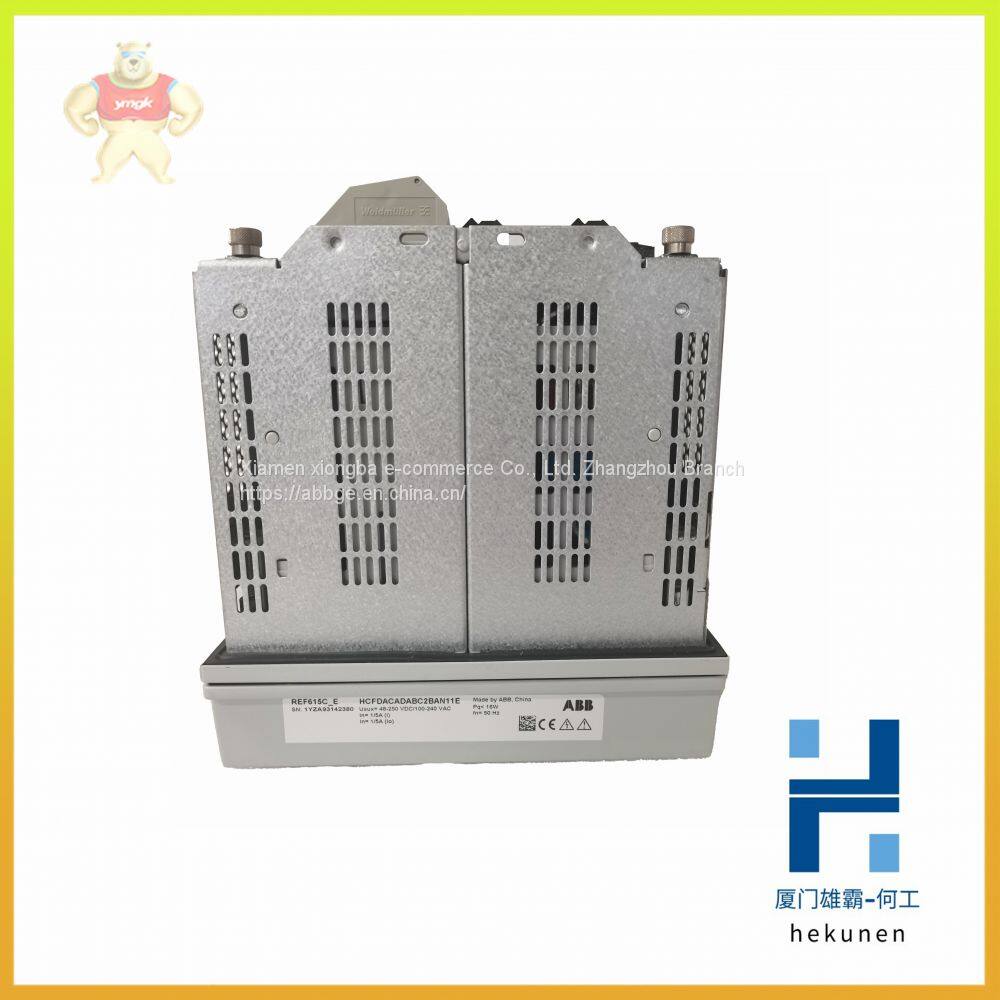

REF615E-D Original Imported ABB Relay Protection Device

REF615E-D Original imported ABB relay protection device

REF615E-D Original imported ABB relay protection device

Our Email: 2235954483@qq.com

contact number:13313705507

contacts：HE

615 series protection, measurement and control device and substation management unit com600 together form a true

Positive IEC 61850 solution to ensure the distribution of public distribution network and industrial distribution network

Electricity is safe and reliable. In order to improve the system engineering, abb protection measurement and control device is equipped with

Connection packages containing software compilation and device specific information, including master

Line diagram template and a complete device data model. The data model includes events

And parameter list. The device can be configured through the PCM 600 using the connection package,

Integration with com600 or with the network control and management system microsscada pro.

615 series devices support IEC 61850 version 2, including switching value and analog value

Goose horizontal communication. In addition, it also supports the process bus to send analog current and power

The voltage sample value and the received voltage sample value.

615 series protection, measurement and control device is fully developed based on IEC 61850 standard and supports

Horizontal communication with goose, and signal transmission with traditional devices through hard wiring

Compared with the Ethernet peer-to-peer communication, the Ethernet peer-to-peer communication provides strong Interoperability for the system

Platform. Through the full implementation of IEC 61850 substation automation standard, the protection system

Its outstanding features include: fast communication capability, integrity of protection and communication system

Continuous monitoring of, and the inherent flexibility of reconfiguration and upgrading. This series

The protection device can maximize the interoperability in the features of IEC 61850 (Second Edition)

Work.

In the station control layer, com600 uses the data content of intelligent devices in the Bay layer to increase

Comprehensive management of power transformation.

Com600 has a man-machine interface based on Web browser and can provide customized

A graphical display for viewing a single line analog diagram of a switch Bay solution. If

615 series devices do not have single line diagram, so the single line diagram provided by the system is particularly valuable

Value. In addition, the webpage man-machine interface of com600 also provides the

Views, including unit specific single line diagrams, for easy access to information. To improve personnel

Safe, web-based human-machine interface can remotely access the devices and processes in the substation.

In addition, com600 can also be used as a local database to store the technical documents of the substation

File and device collected network data. The collected network data is transmitted through the com600

Data logging and event processing functions help to expand network fault conditions

Sexual reporting and analysis. Through calculation based on real-time and historical values, the historical

Data is used to accurately monitor process and device performance. Integrate time flow measurement with production

The combination of maintenance events can better understand the process dynamics.

Com600 also has gateway function to provide substation protection, measurement and control device and network

Level control and management system (such as microsscada pro and system800xa)

Seamless connection between.

Goose analyzer interface in com600 can analyze station level debugging and running

Horizontal IEC 61850 applications. It can also record all goose during substation operation

Events to improve system monitoring.
