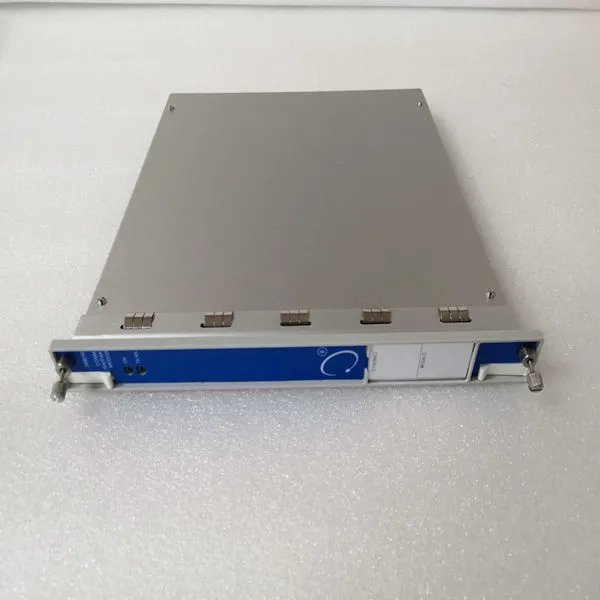

Help CenterBENTLY 3500/92 136180-01
Related Products
Brand: BENTLY
Type:3500/92 136180-01
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
To avoid damage to the connector and drive, NEVER plug or unplug J1 with power applied. Mating Connector Information Screw Terminal Connector 12 – 24 AWG Wire Range, Phoenix MSTB2,5/3-STF-5,08-BK OR Spring Cage Clamp Connector 12 – 24 AWG Wire Range, Phoenix FKC 2,5/3-SFT-5,08-BK OR Crimp Connector Crimp Shell 14-20 AWG Wire Range, Phoenix MSTBC 2,5/3-STZF-5,08-BK Crimp Contact 14-16 AWG Wire Range, Phoenix MSTBC-MT 1,5-2,5 Crimp Contact 18-20 AWG Wire Range, Phoenix MSTBC-MT 0,5-1,0 Refer to . J1-1 +CTRL Control power input. The DC drive accepts +10 to +90 VDC on this input referenced to J1-2. An isolated regulated or isolated unregulated power supply can be used. This input can be connected to +Bus input (J1-3) and powered by the same supply as +Bus. The control power supply should be rated for 20 watts. While the power drain typically is 2 W to 8 W, a 20 W supply ensures reliable starting of the drive. J1-2 BUS/CTRL GND Power return for the control and BUS power supplies. The BUS/CTRL GND is connected to I/O RTN internally in the drive. J1-3 +BUS Main power input to the drive. The DC drive accepts +20 to +90 VDC on this input referenced to J1-2. An isolated regulated or isolated unregulated power supply can be used. The +Bus power drain with +Bus voltage at 75 VDC is in the range shown below. It varies according to the application and motor.
Refer to the DC Power Supply Requirements section for detailed requirements selecting a compatible power supply. PE Screw Connection Protective Earth connection point. This chassis ground point must be connected to Protective Earth ground. The connection at the Protective Earth ground end must be hard wired (do not use a pluggable connection). A ground fault detector (RCD) cannot be depended on for safety. 6.4.1 DC Power Supply Requirements Bus Voltage (J1-3 to J1-2) + 20 VDC to + 90 VDC BUS Supply Current 48 VDC BUS 75 VDC BUS S20330 Continuous Peak (3 sec) 3.3 ADC at 160 W 10 ADC at 480 W 3.3 ADC at 250 W 10 ADC at 750 W S20630 Continuous Peak (3 sec) 6.7 ADC at 320 W 20 ADC at 960 W 6.7 ADC at 500 W 20 ADC at 3,000 W
