Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag

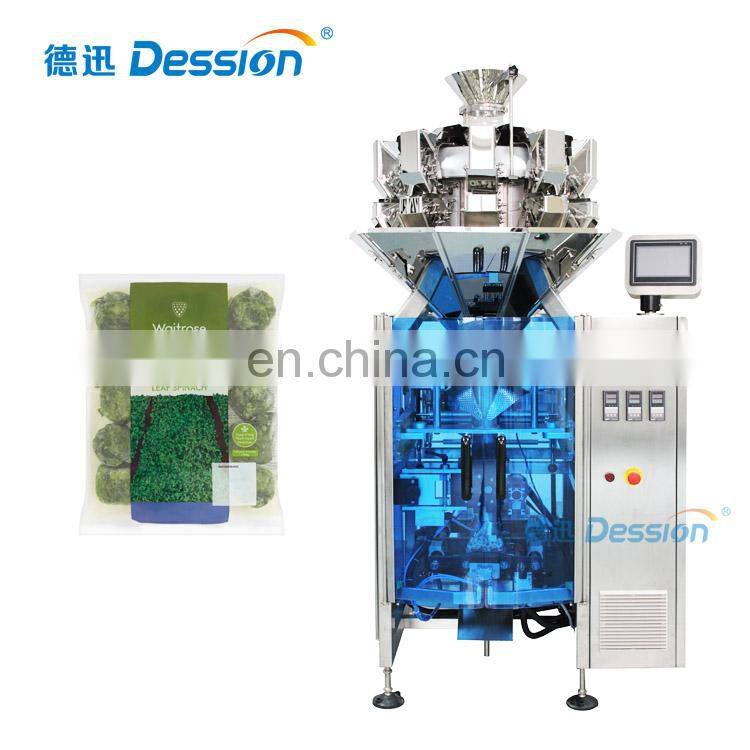

Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag photo-1
Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag photo-2

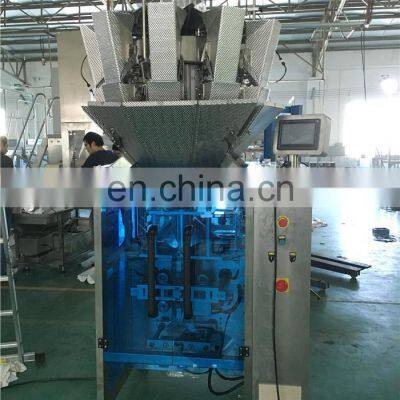

Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag photo-3
Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag photo-4

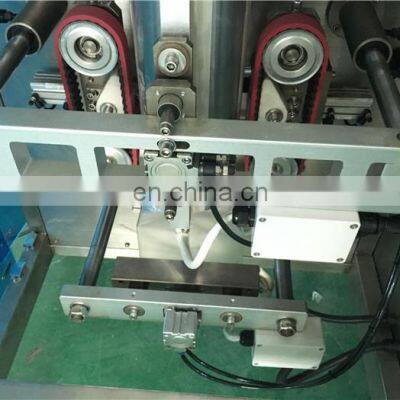

Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2006
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag







Application
  • For materials requiring high accuracy of measurement or careful handling, e.g. puffed food, screw, or noodles.
  • Various bag types are available, e.g. pouch, stand-up bag, cheerpack, back-sealing bag, 3 or 4 sides sealing bag, linking bags,etc.

Bag types:

Product Description



Main Features

*Computer control and English-Chinese touch screen for easy operation without stopping the unit.
*Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.
*Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
*Full automation from bag making, measuring, filling, sealing, counting and date printing.
*Multi-heads scale filling system for filling accuracy and good application to various kinds of products.



Automatic Weighing And Packing Machine Combination includes 2 parts:



1) Main Engine

Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag

ITEM

DS-320AZ DS-420AZ
Film Width Max.320mm Max.420mm
Bag Length 80-240mm 80-300mm
Bag Width 50-150mm 60-200mm
Film Thickness 0.04-0.08mm 0.04-0.08mm
Film Roll Diameter Max.320mm Max.320mm
Packing Speed 5~70 bags/min 5~60 bags/min
Power 220V, 50/60HZ, 2.0KVA 220V, 50/60HZ, 2.2KVA
Measurement L)1800 * W)1800 * H)1800~2000mm
Optional Device Date Coder / Air-filling Device / Punching Device
Machine Packing Wooden Box Wooden Box

2) Weigher
ITEM 10-Head-Weigher 14-Head-Weigher
Capability 10~800g 800~1500g 10~800g 800~2000g
Weighing Difference 0.1~1.5g 0.5~2.0g 0.1~1.5g 0.5~2.0g
Hopper Volume 1600ml 2500ml 1600ml 2500ml
Max Weighing Speed 65 bags/min 45 bags/min 120 bags/min 80 bags/min
Gross Weight 420kg 490kg
Measurement L)1482* W)1080* H)1116mm L)1680* W)1182* H)1268mm
Power 220V, 1000W, 50/60HZ, 10A 220V, 1000W, 50/60HZ, 10A





 Optional Devices:







Frozen Chopped Spinach Packing Machine With Nitrogen Flushing Device In Nylon Bag

Packaging & Shipping

Payment: 30% deposit in advance, 70% balance before shipment by T/T.

Delivery time: 20-25 days after receiving 30% deposit.







Optional Devices

  1. Punching device

  2. Tear notch device
  3. Linking bag control device
  4. Air filling device
  5. Nitrogen inflation device

  6. Code printer

  7. Material gathering hopper

Company Information

Since 2005, Dession has been the leading manufacturer of packaging machinery, including pillow type packing machine,vertical packaging machine, automatic feeding line, flowing packing machine and other supporting facilities.









During the last 10 years, Dession has more than 30 partners all over the world.

Our packing machines have been shipped to various countries and areas, such

as America, Brazil, Russia, British, Germany, India, Thailand, Malaysia, Vietnam

and so on.
