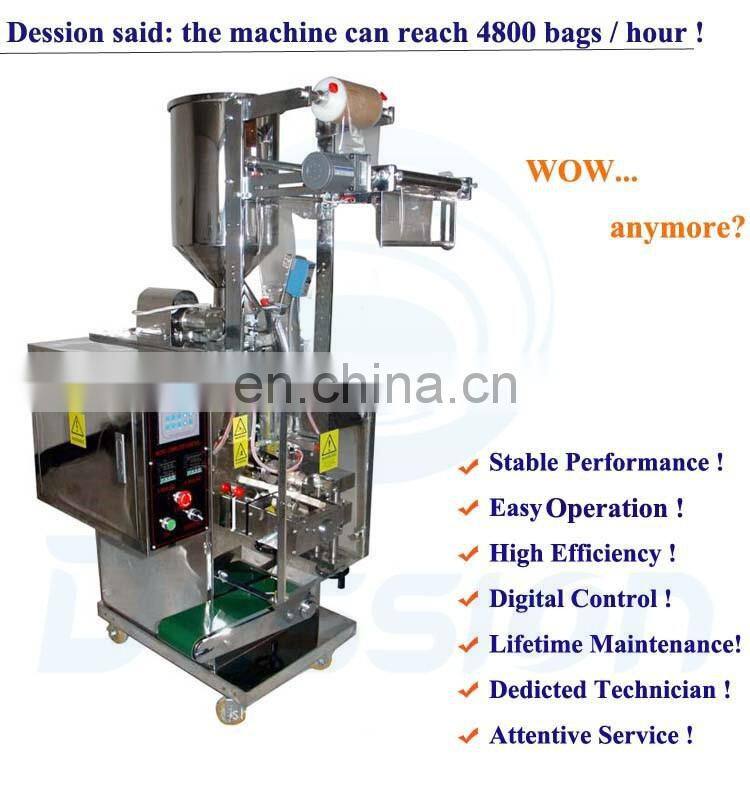

DS-200Y Small Sachet Pasta Sauce Packing Machine
Dession DS-200Y Sachet pasta sauce packaging machinery
Which is Recognized as a symbol of quality, high output, reality and simplicity. Easy and 1-100ml Small sachet pasta sauce can be made and moreover, any breakdown can be immediately located with consequential fast correction.Now let me introduce to you~
Small Sachet Pasta Sauce Filling Packing Machine Feature:
1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the GMP Standard.
2. Computer controller is the first patent of China; inverter and power switch are all imported with advanced technology.
3. Optional English or Chinese screen display, easy and simple operation.
4. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
5. Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.
6. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.
7. Equipped with rolled cup device enables volume of packing changing anytime, loss reducing and improve productivity.
8. Alarming function for specific output; automatic display of packaging speed.
9. Optional coding equipment and with 1 to 3 lines for batch number and expiration date.
10. Bag-making, filling, sealing, cutting, counting, thermal pressing of batch number can be achieved automatically and straightly.
11. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
12. Bag-making equipment can be changed according to specific requirement of customers and products.

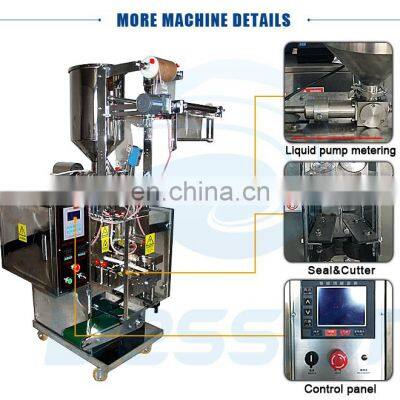

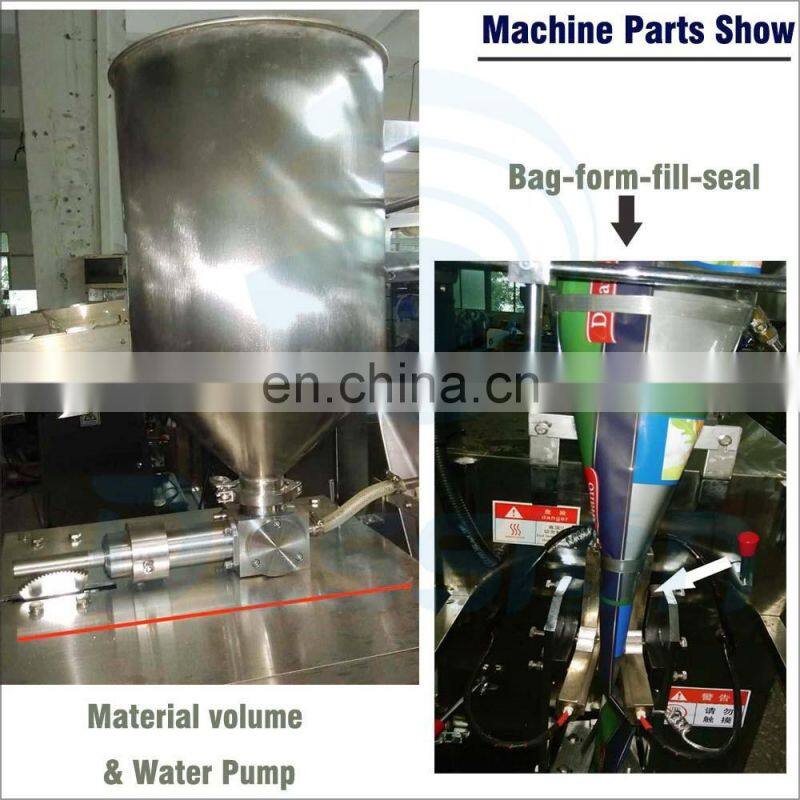

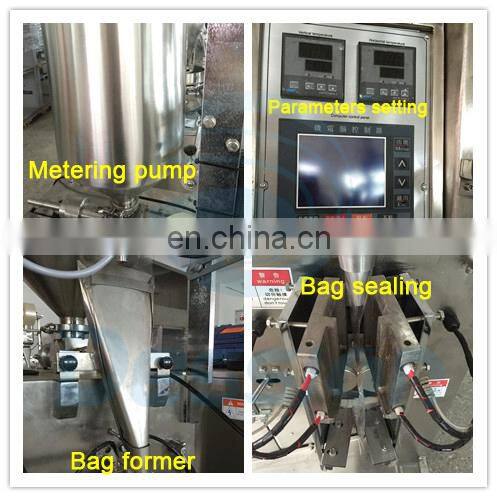

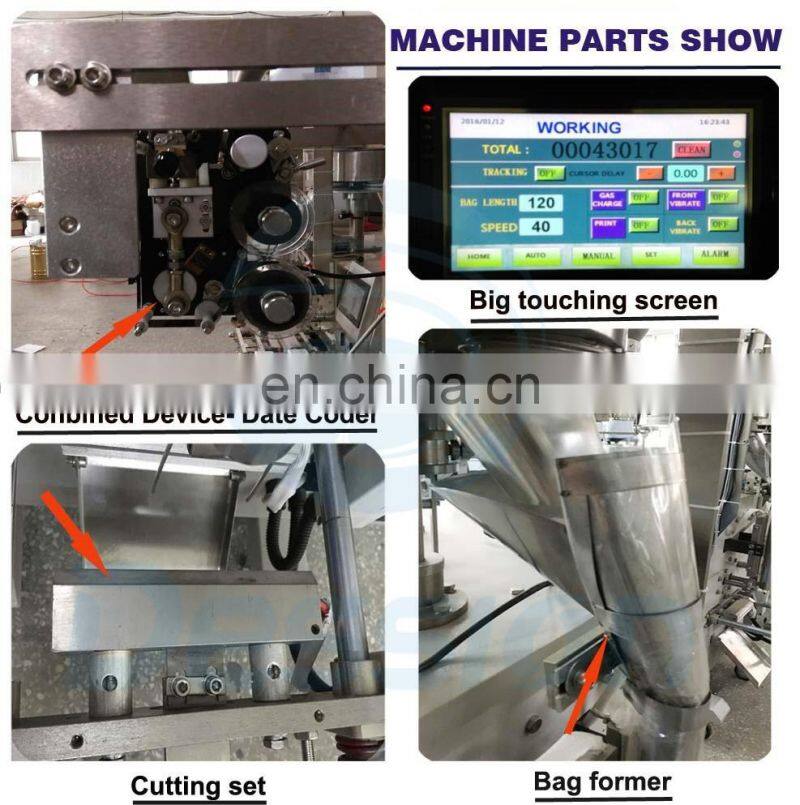

Small sachet pasta sauce filling machine product Details:

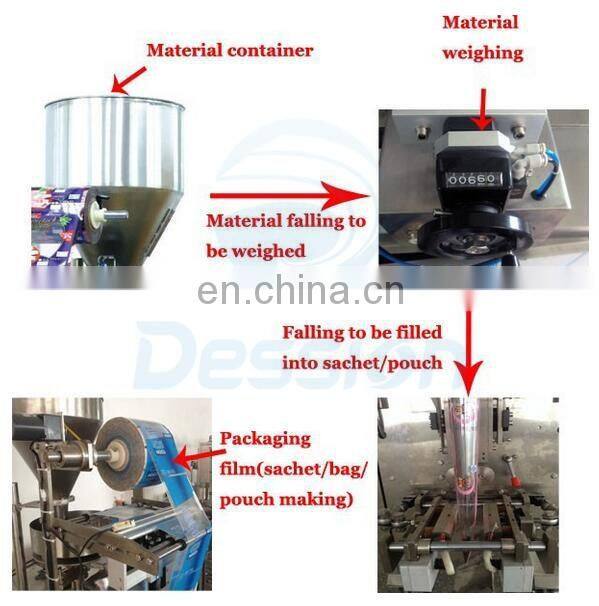

How does the DS-200Y ketchup/tomato paste sachet packaging machine work?
More details please check the operation video on youtobe:https://youtu.be/xvDoER5M4PQ
Sachet Pasta Sauce Filling Machine Technical Specification:
|
Model |
DS-200Y |
||
|
Measuring type |
Metering Pump |
||
|
Sealing |
Sachet four sides/Three sides/back sides(pillow type) |
||
|
Transverse Sealing |
Netted Line/Straight Line |
||
|
Cutting |
Tooth Cut/Flat Cut |
||
|
Measurement Range |
1~100ml |
||
|
Package Speed |
30~80bags/min |
||
|
Bag Width |
15~100mm |
||
|
Bag Length |
30~180mm |
||
|
Film Width |
30~220mm |
||
|
Film Roll Dia. |
300mm |
||
|
Bag Pulling |
Stepping Motor |
||
|
Power |
220V,50HZ,1.2KVA |
||
|
Machine Size |
(L)640×(W)700×(H)1580 |
||
|
Machine Weight |
300KG |
||
|
Optional |
Date Coder |
Air-filling |
Punching Device |
|
Machine Package |
Export Standard Plywood. |
||
This machine is suitable for automatic packaging of liquid of foods, medicine and chemicals, such as pesticide, shampoo, body foam bath lotion, facial cream, ingredient oil, fruit sauce, tomato ketchup and honey shower gel, skin lotion, toothpaste, cosmetic cream, fruit jam, edible oil,pasta sauce, soy etc.
Finished Samples shows:

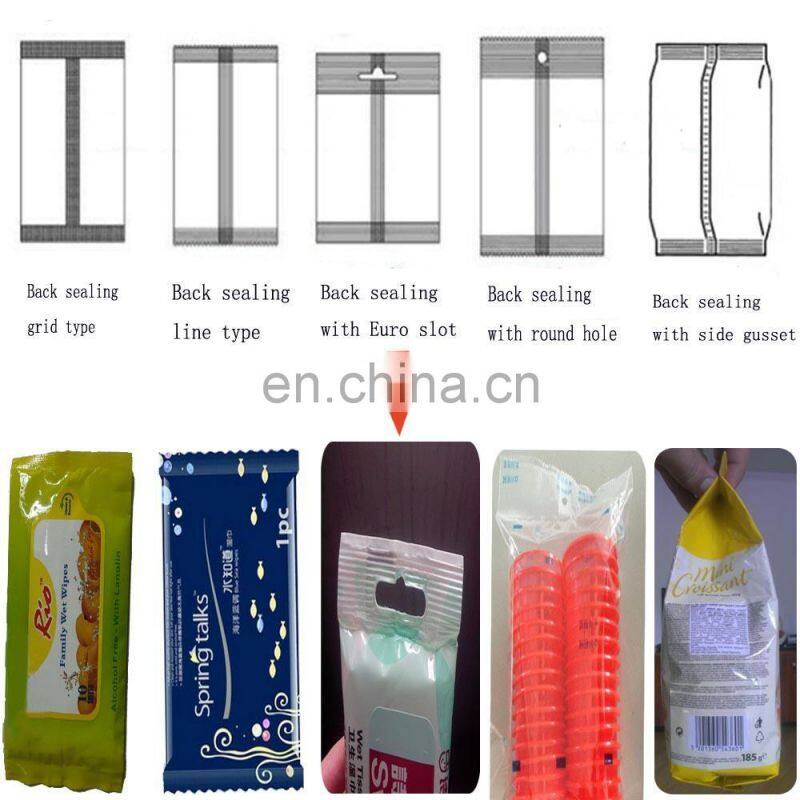

We can offer more styles pouches:
Packaging:
1 Wooden box
Total Size (CBM): 2.90CBM
To ensure safety of packaging machinery, we customize wooden boxes according to the size of the packaging machinery.
Shipping:
Upon receipt of payment , delivery date will be in 20-35 working days,
By Air, by Sea or by Express (DHL,UPS,TNT,EMS etc)
Shipment cost will depend on destination, shipment way and weight of the goods.
Dession is a leading manufacturer of Rotary pillow packaging macine, Vertical powder / granules / liquid / Sauce packaging machine, Automatic Feeding line, flowing packing machine and supporting facilities since 2005.
Dession has successfully developed more than 80 kinds of packaging machines and related equipment, widely suitable for food, medicine, chemicals, Industry accessories, hardware and so on.

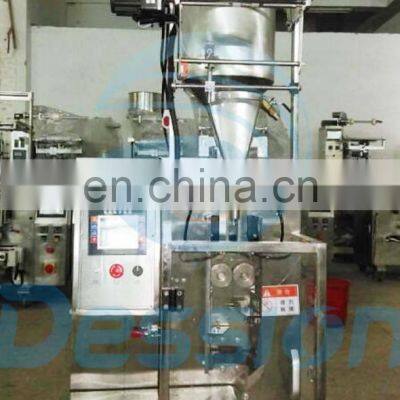

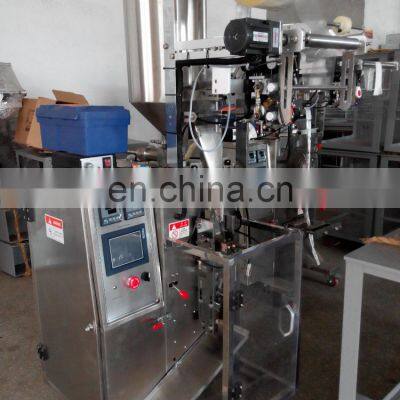

Our office and workshop
Q1. How to find a Packing machine suitable for my product?
A: Tell me about your product details.
a. What kind of product you have.
b. The size of your product( the length, width and height ).
Q2. Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. Are you factory or trading company?
A: We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production over 10 years.
Q4. What's your payment way?
A: T/T by our bank account directly, or by alibaba trade assurance service, or by West Union, or in cash.
Q5. How can we make sure about the machine quality after we put the order?
A: Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q6. We are afraid you won't send us the machine after we send you the money?
A: Please note our above business license and certificate. And if you don't trust us, then we can use alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7Q. Why we should choose your company?
A: We are professional in packing machines over 10 years, and we provide better after-sales service. We guarantee no risk for our deal.
Dession Machinery is your best choice,further information pls contact Ms Grace
Looking forward to your inquiry:)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
