Automatic Caviar Packaging Machine With Liquid Packing Machine
Main Features
*Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.
*Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
*Full automation from bag making, measuring, filling, sealing, counting and date printing.
Automatic Pouch Weighing And Packing Machine Combination includes:
1) Main Engine
ITEM | DS-320L | DS-420L | DS-520L | DS-720L |
| Film Width | Max.320mm | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-240mm | 80-300mm | 80-350mm | 100-450mm |
| Bag Width | 50-150mm | 60-200mm | 80-250mm | 100-350mm |
| Film Thickness | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | Max.320mm |
| Packing Speed | 5~70 bags/min | 5~60 bags/min | 10-50 bags/min | 10-40 bags/min |
| Power | 220V, 50/60HZ, 2.0KVA | 220V, 50/60HZ, 2.2KVA | 220V, 50/60HZ, 3KVA | 220V, 50/60HZ, 3.6KVA |
| Measurement | L)1185 * W)935 * H)1245 mm | L)1217 * W)1015 * H)1343 mm | L)1488 * W)1080 * H)1490 mm | L)1716 * W)1260 * H)1820 mm |
| Optional Device | Date Coder / Air-filling Device / Punching Device | |||
| Machine Packing | Wooden Box | Wooden Box | Wooden Box | Wooden Box |
Working Process
- For materials in liquid shape, e.g. milk, oil, jam, water, etc.
- Various bag types are available, e.g. pouch, stand-up bag, cheerpack, back-sealing bag, 3 or 4 sides sealing bag, linking bags,etc.
| |
|
Payment: 30% deposit in advance, 70% balance before shipment by T/T.
Delivery time: 20-25 days after receiving 30% deposit.
1. Punching device
2. Tear notch device
3. Linking bag control device
4. Air filling device
5. Nitrogen inflation device
6. Code printer
7. Material gathering hopper
Since 2005, Dession has been the leading manufacturer of packaging machinery, including pillow type packing machine,vertical packaging machine, automatic feeding line, flowing packing machine and other supporting facilities.
During the last 10 years, Dession has more than 30 partners all over the world. Our packing machines have been shipped to various countries and areas, such as America, Brazil, Russia, British, Germany, India, Thailand, Malaysia, Vietnam and so on.

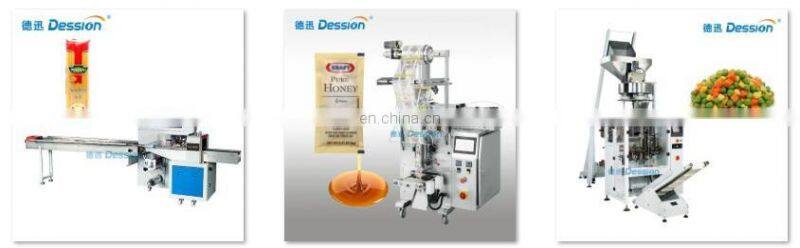

DS-250X Speghetti Packing Machine DS-320Y Honey Sachet Packing Machine DS-420BZ Frozen Peas Packing Machine
For more information, please contact us by email or instant messages. Any email or message will be answered within 12 hrs.
