Product Description

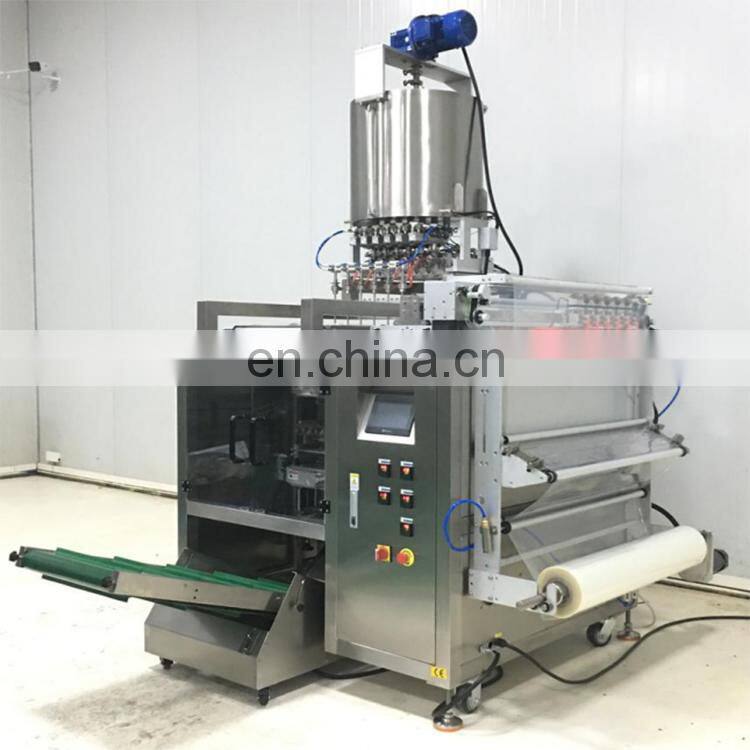

Multi Lane liquid Packing Machine
1.used for packing liquid tiny particles, such as instant coffee, mixed tang sugar, etc
2. speed 120 bags/min
3. GMP standard automatic packaging equipment, conform to the requirements of the pharmaceutical enterprise production;
4. it can realize sawtooth cutting/cut/figure Angle cutting
Main Features
1. Multi lanes machine can produce multi lanes bags at same time.
1. Multi lanes machine can produce multi lanes bags at same time.
2. Machine main function: automatic split film at right position,liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manualtest machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll

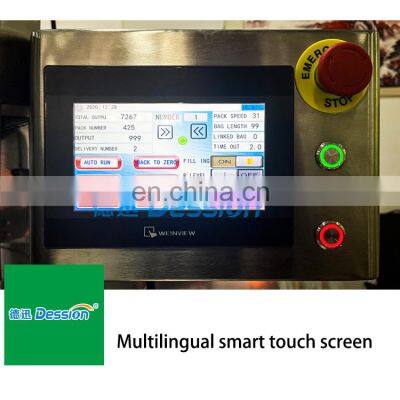

6. PLC controller, high function and control the whole machine’s work steps..
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manualtest machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll
6. PLC controller, high function and control the whole machine’s work steps..
Model | DS-GH480Y |
Lane number | 4-6 Lane |
Filling Method | Volumetric cup |
Capacity | Max.35 cycle/min |
Bag size | L:45--120mm;W:35-6 0mm |
Film width&Thickness | Max.480mm;0.07--0. 1mm |
Sealing type | 4 sides sealing |
Cutting type | Straight cutting; Zig zag cutting ;Round cutting |
Air&Powder | 0.8Mpa 0.8m3/min;5.5kw |
Dimension&weight | 950*1470*1750mm;3 00kg |

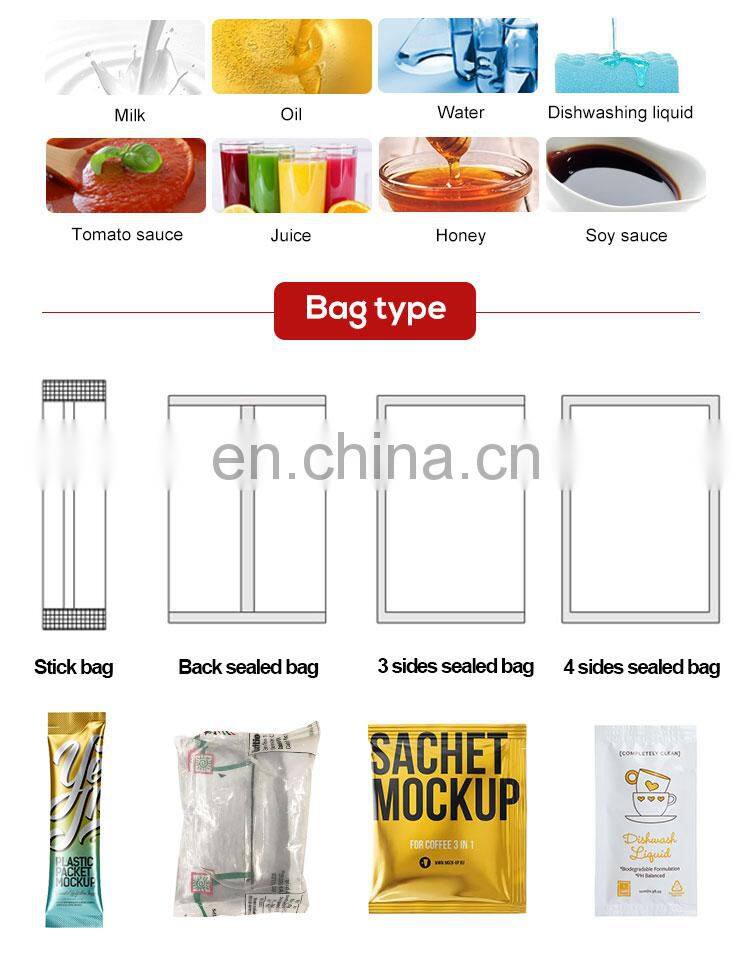

Application>
What do you want to pack?
widely applied for food, Medicine, hand sanitizer chemical liquid products such as Ketchup, flavoring, Sauce, Pasty, Shampoo,cream, body wash liquid and so on.
widely applied for food, Medicine, hand sanitizer chemical liquid products such as Ketchup, flavoring, Sauce, Pasty, Shampoo,cream, body wash liquid and so on.

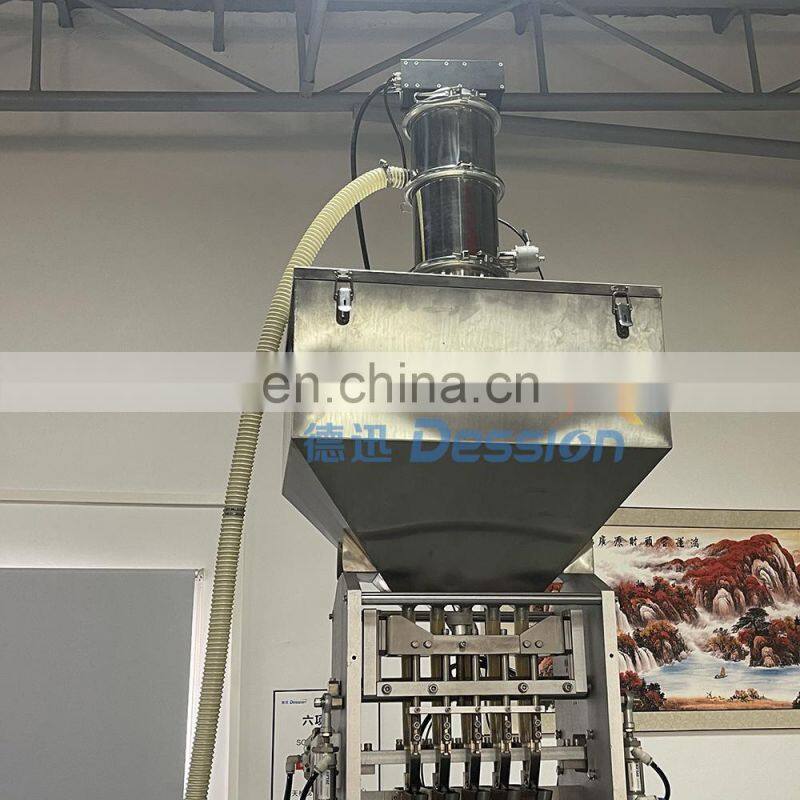

Metering device
High precision metering material

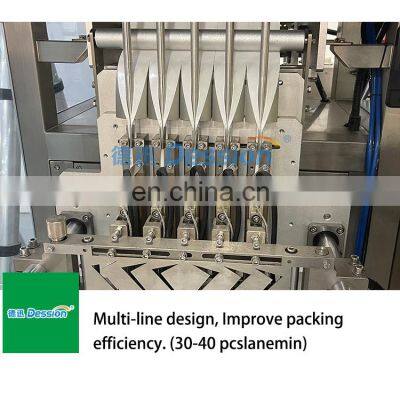

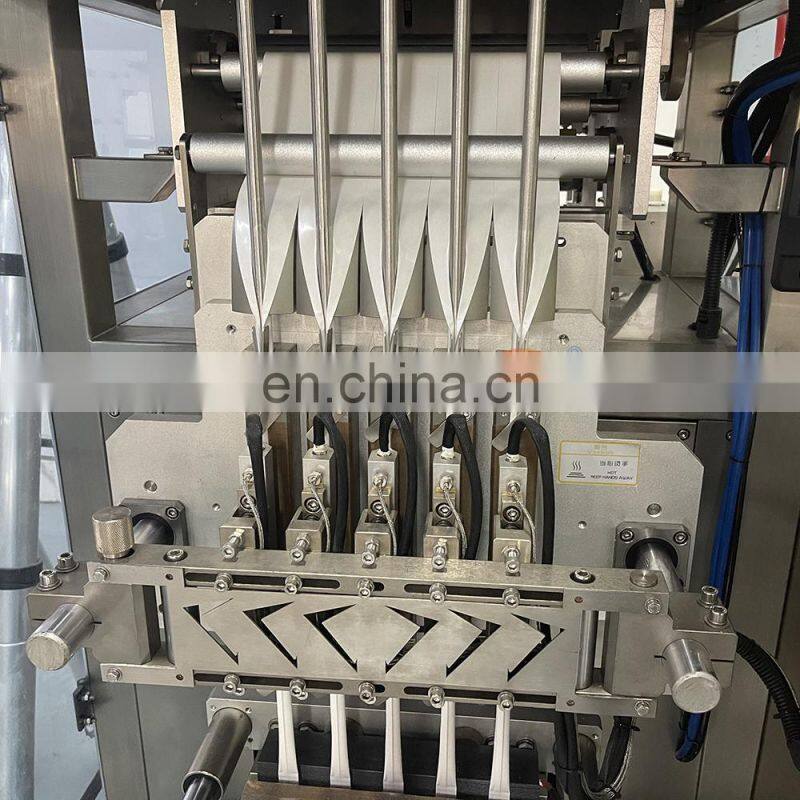

Multi-station production
Multi-line design, Improve packing efficiency. (30-40 pcslanemin)

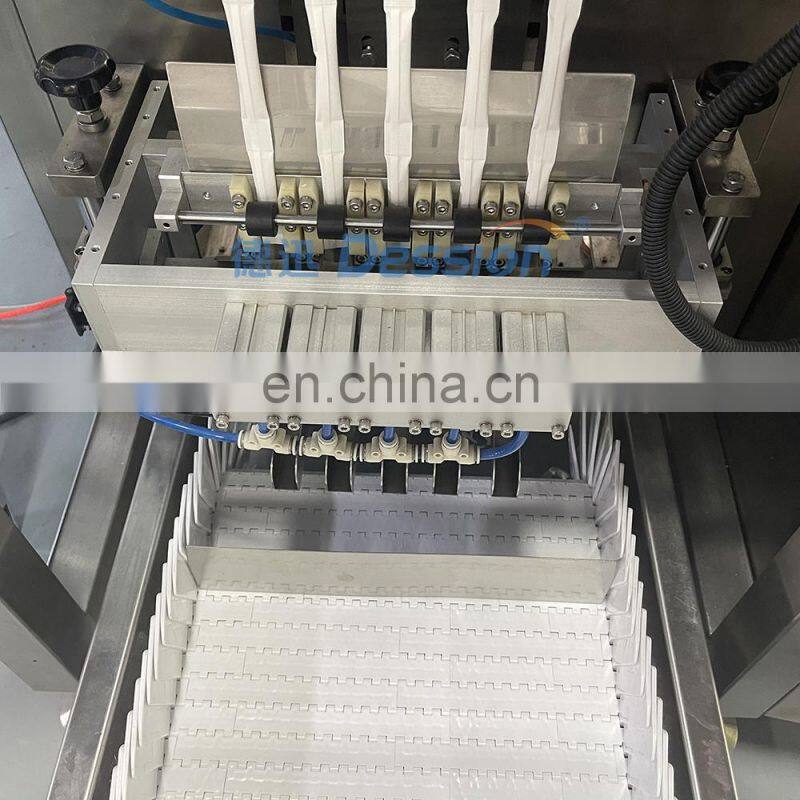

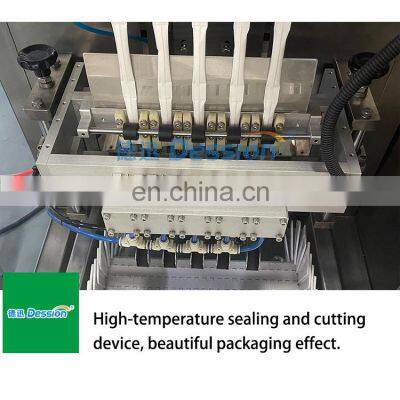

Knife seat shearing device
High-temperature sealing and cutting device, beautiful packaging effect.

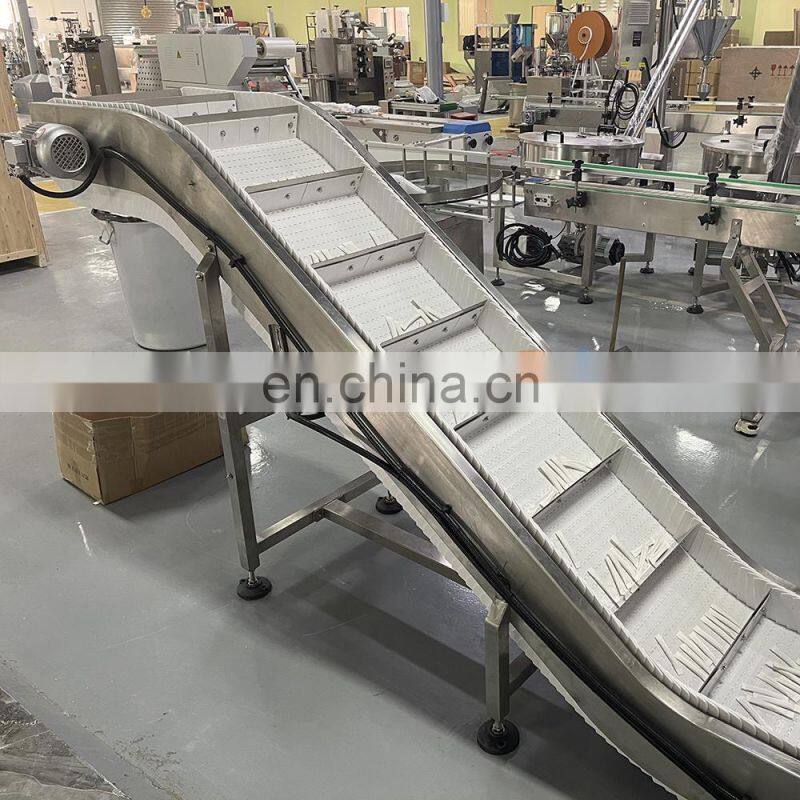

Material conveyer
Smooth operation of material conveyor
Recommend Products
Our Company
Dession is a modern packaging equipment solustion provider integrating R&D, production and sales.Since the establishment of the company, with the continuous exploration, research and application of advanced technology, the company's development has begun scale, with an innovative team of professional and technical personnel, engineers, sales and after-sales service personnel.
Dession a leading manufacturer of Vertical Powder/Granule/Liquid Packaging machine, pillow packing machine and supporting facilities, which has successfully developed more than 80 kinds of packaging machines. Dession Packaging Machine has widely applied for different fields throughout the world, such as food/industrial food, medicines, hotel supplies, disposable goods, rubber goods, daily appliances, hardware fittings, sporting goods, toys etc.
Dession has more than 5,000 square meters of production plants, 3 production workshops and a parts processing workshop, including small vertical machine production workshops, large vertical machine production workshops and pillow machine production workshops.
Certifications
Packing & Delivery
Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
