Automatic pillow type fresh vegetable horizontal packing machine pillow vacuum pack machines

Name: Automatic pillow type fresh vegetable horizontal packing machine pillow vacuum pack machines
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

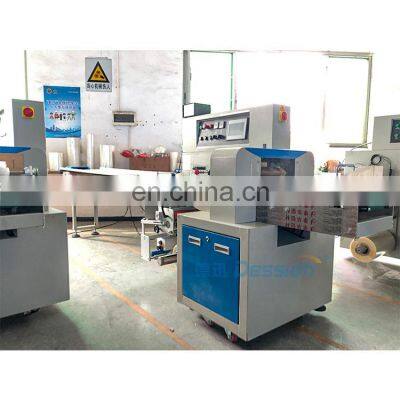

Automatic pillow type fresh vegetable horizontal packing machine pillow vacuum pack machines

Machine Introduction

Packaging Application

Automatic flow packing machine is a widely used packing machine. Suitable for all kinds of product packaging. Including medical
supplies, vegetables and meat, baked bread, snacks and candy, daily necessities, hardware accessories, etc.

Packing Effect

The effect after packaging is back-seal bag.

According to demand, other devices can be customized or upgraded to meet other models. For example, pillow bag with hole, bag with label, gusset bag, etc.

Machine Structure and Parameters

Machine Characteristics

1. Double frequency conversion control, the bag length canbe set and cut, no need to adjust the air, one step in place, saving time and film.

2. Man-machine interface, parameter setting is convenient and quick.
3. Fault self-recognize function, fault display at a glance.
4. High-sensitivity photoelectric eye color tracking, digital input sealing position, make sealing position more accurate.
5. Temperature independent PID control, better suitable for various packaging materials.
6. Positioning stop function, no sticky kuife, no waste film.
7. The transmission system is simple, the work is more reliable, and maintenance is more convenient.
8. All control is implemented by software, which is convenient for function adjustment and technical upgrade, and never lags behind.

Model	DS-250X	DS-350X	DS-450X	DS-600X	DS-700X	DS-800X
Film Width （mm）	Max.250	Max.350	Max.450	Max.600	Max.700	Max.800
Bag Length （mm）	45~330	65~330	120~450	130~450	120~600	120~600
Bag width （mm）	30~110	50~160	60~210	60~280	50~330	50~380
Products Height （mm）	Max.70	Max.80	Max.110			Max.150	Max.150
Packing Speed （bag/min)	40~230			30~150		30~150	20~120	30~150
Machine Power	220V / 380V, 50/60HZ,2.4KW
Machine Size （LWH, mm）	39206701320	40207201450	39009001468	399010001468	440011001460	440012001460
Machine Weight	800KG	900KG	900KG	1050KG	1050KG	1050KG

Details Images

Machine Workflow

This machine is easy to operate.

Just set the parameters on the screen, and then you can start the machine. Put the product on the conveyor belt, the machine will automatically pull the film, the bag is formed, sealed, and finally the bag is cut.

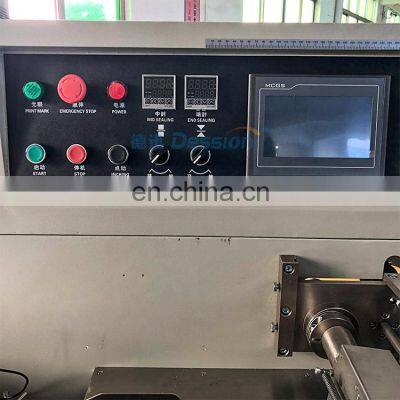

Multilingual touch screen

The machine supports various language customization, easy to operate.

High sensitivity eye sensor

The eye sensor automatically senses the color code to ensure accurate and beautiful packaging effects.

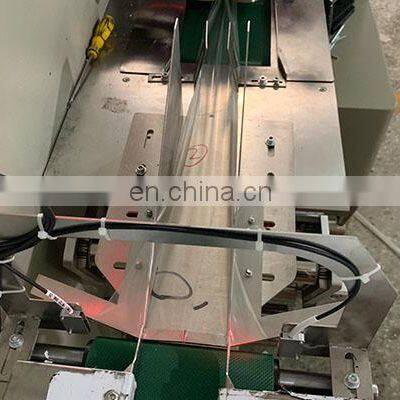

Replaceable bag former

When you want to change the bag width, you only need to change a different size bag fromer.

Electronic control component

Use Panasonic PLC and frequency converter to ensure the stable operation of the machine.

1. Professional and Strong Team

Dession has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer.

Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of
the machine. Finally, it is packaged and shipped, and it only takes a week to complete.

2. Excellent transportation service

According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.

3. Timely and effective after-sales service

Choosing us is not only buying a machine, but also our professional and timely service.

1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.

2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail.

3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.

4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.

Buyer Feedback

We have 8 years of experience in foreign trade and export, and now our customers have spread to 90 countries all over the world.
With our high-quality machines and professional services, we have won unanimous praise from our customers.

Company Profile

Dession a leading manufacturer of Packaging machine and supporting facilities, which has successfully developed more than 80 kinds of packaging machines. Dession Packaging Machine has widely applied for different fields throughout the world, such as food/ industrial food, medicines, hotel supplies, disposable goods, rubber goods, daily appliances, hardware fittings, sporting goods, toys etc.

Dession has more than 8000 square meters of production plants, 5 production workshops and a parts processing workshop, including small vertical machine production workshops, vertical machine production workshops, pillow machine production workshops, cartoning machine production workshop and filling machine production workshop.

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
