Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > High-accuracy Electric Liquid Packaging Machine Bag Liquid Filling Machine Liquid Chilli Packaging Machine
High-accuracy Electric Liquid Packaging Machine Bag Liquid Filling Machine Liquid Chilli Packaging Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2006
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Energy Saving Whey Protein Powder Filling Packing Machine Weighing and Packing Machine Powder Vitamin Powder Packing MachineNegotiableMOQ: 1 -
Multifunctional Yeast Powder Packing Machine Widely Use Tea Powder Bag Packing Machine Veterinary Powder Packing MachineNegotiableMOQ: 1
-
Small Scale Vertical Powder Packing Machine 1g To 100g Powder Sachet Packaging MachineNegotiableMOQ: 1
-
Automatic Powder Packaging Machine Manufacturer For 50g To 1000g Powder Bag Packing MachineNegotiableMOQ: 1
-
Automatic Bamboo Toothpick Packing Machine PriceNegotiableMOQ: 1
High-accuracy electric liquid packaging machine bag liquid filling machine liquid chilli packaging machine
Products Description

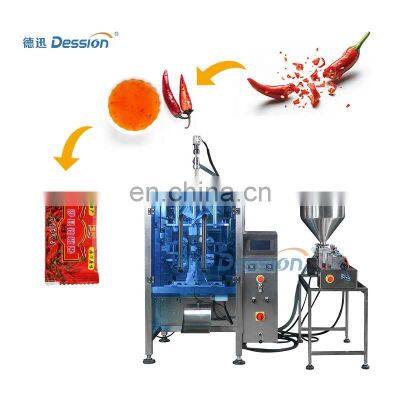

Dession liquid packing machine is suitable for the packaging of various liquid and sauces, such as soup,edible oil,liquid medicine,cream,seasoning sauce,honey,shampoo and shower gel etc.
1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the CE Standard.
2. Optional English or Chinese screen display, easy and simple operation.
3.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
4. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.

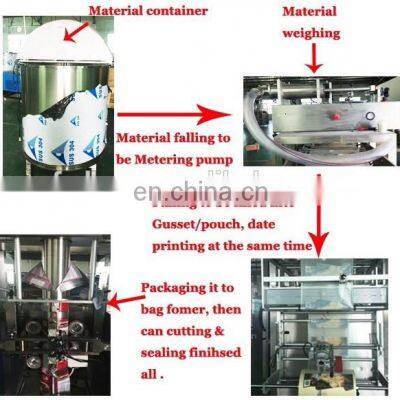

5. Bag-making, filling, sealing,cutting, counting, thermal pressing of batch number can be achieved automatically and straightly.
6. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
7. Bag-making equipment can be changed according to specific requirement of customers and products.

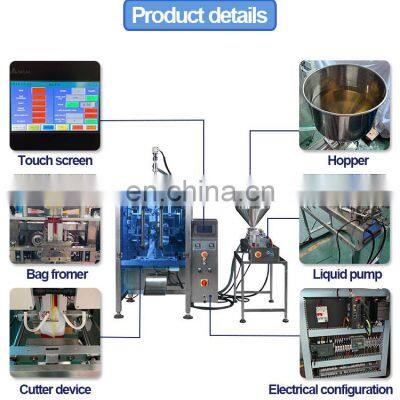

Machine Host | ||
Model | DS-420L | |
Measuring Range | 150~1500 ml | |
Packaging Speed | 5~60 bags/min | |
Bag Size | L：80~300 mm W：60~200 mm | |
Film Roll Width | Max.420 mm | |
Power Requirements | 220V，50/60 HZ，2.2KW | |
Machine Dimension(mm) | (L)1217*(W)1015*(H)1343 | |
Liquid Pump | ||
Measurement Range | 100~1000 ml | |
Air Onsumption | 0.4~0.6 mpa | |
Max. Weighing Speed | 10~35 n/min | |
Machine Dimension(mm) | (L)1150*(W)280*(H)300 | |
Machine Weight | 25KG | |
Product Conveyor | ||
Conveying capacity | 60 bags/min | |
Power Requlrements | 220V，0.75KW | |
Machine Weight | 40kg | |
Recommend Products
If you need to pack a larger machine or other bag type machine,
we have more products to recommend to you.
DS-320Y Liquid Packing Machine
Suitable for 1~500ml water,juice,jelly.
DS-200Y Sauce Packing Machine
Suitable for 1~100ml ketchup.
DS-200Y Honey Packing Machine
Suitable for 1~100ml honey,gel,oils.
Our Company
Certifications
Packing & Delivery
Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
