Chocolate Wafer Bar Packaging Automatic Feeding And Packing Machine

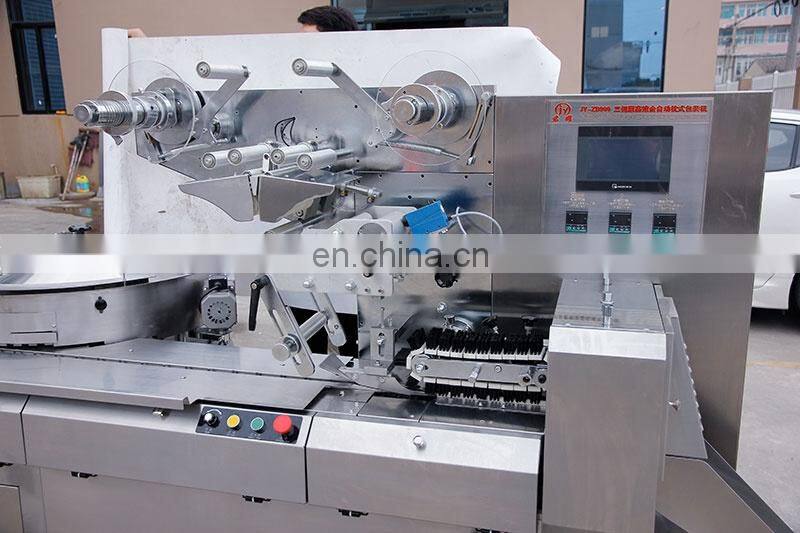

Chocolate Wafer Bar Packaging Automatic Feeding And Packing Machine photo-1
Chocolate Wafer Bar Packaging Automatic Feeding And Packing Machine photo-2
Chocolate Wafer Bar Packaging Automatic Feeding And Packing Machine photo-3
Chocolate Wafer Bar Packaging Automatic Feeding And Packing Machine photo-4
Chocolate Wafer Bar Packaging Automatic Feeding And Packing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1992
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Product Application

AUTOMATIC HIGH SPEED FEEDING LINE

It is applied for the pillow packing of products with easy broken surface, such as chocolate, wafer, puffing food, rice cake, cake, swiss roll, caramel treats, nougat, candy floss and other types of candies or enrobing products.

MAIN TECHNICAL PARAMETER
Packing Speed
50-800pcs/min
Product Dimensions
According to real product size
Total Power
7.3kw

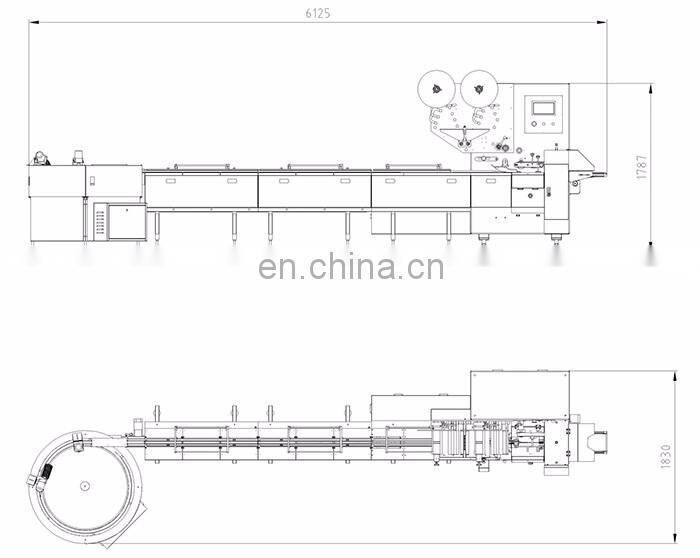

Outside Dimensions
5800mm*1400mm*1600mm(L*W*H)
Net Weight
3000kg
Power Source
380V;50HZ,3phase(can customized)

CUSTOMIZED FULL AUTOMATIC

Certifications
Detailed Images

Machine Parts

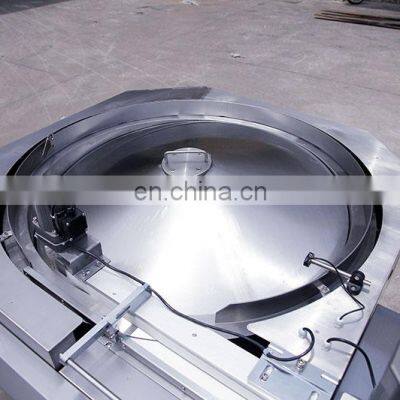

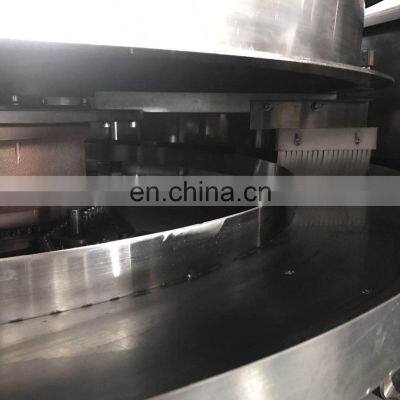

Name: Rotary Disc Feeding


super size swash feeding plate
Soft feeding


Bottom of feeding plate with 2 brush working together to clean the crumb

Tracking Sensor

Automatic tracking sensor to guarantee no empty space


Machine Parts

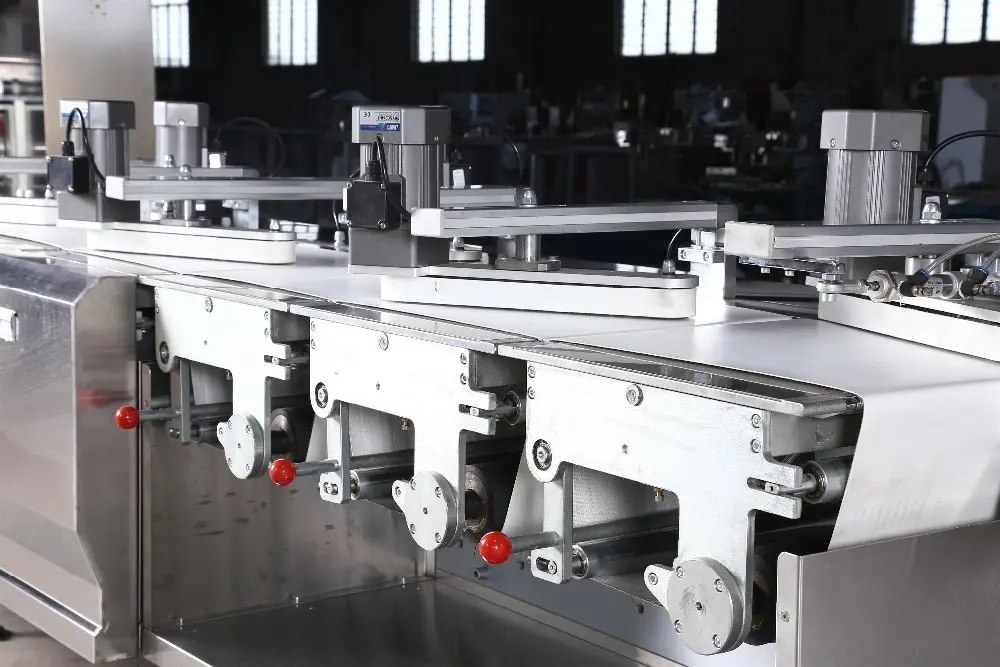

Name: Belt


Six section of separating belt, controlled by the servo motors, intelligent speed adjustment.

Machine Parts

Name: Double Paper rollers

Double Paper rollers structure and fast automatic paper splicing

Our Service

1. One year quality guarantee for the machine, if any problem, we will send the component to replace.
2. Provide the complete service from installation, production, Debugging, staff training.
3. Provide the permanent components, technology support, quick response to after-sales service.

Packing & Delivery

Delivery time:30 days after the receipt of deposit.
Payment terms: 30%T/T in advanced, the balance should be paid before delivery.
Packing type: seaworthy wooden case
Shipment: by sea.


AUTOMATIC HIGH SPEED FEEDING LINE
