High Speed Automatic 3 In1 Pure Drinking Mineral Water Plastic Bottle Filling Capping Labeling Machine Line

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

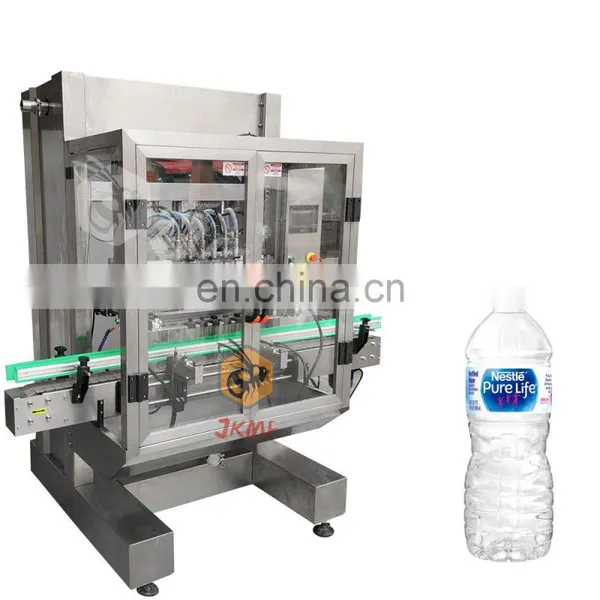

The full automatic quantitative liquid filling machine is designed for saving time on adjusting and testing machine,it can filling liquid or paste accurately by entering a certain filling volume.The PLC control method makes it easy to operate,the high speed working efficiency is ideal for medium or large scale production.It can work with the automatic capping machine and labeling machine to form a complete production line and realize high speed packaging work.

Application:

This machine is suitable for filling liquid and paste like juice,beverage,drinks,milk,makeup remover etc.It is widely used in drinks,cosmetics,daily chemical and pharmaceutical industries.

Model	JK-300
Voltage	110/220V 50-60HZ
Filling Range	5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/ 1000-5000ml
Filling Speed(base on water)	25~40 bottles/min
Filling Accuracy	≤1%
Conveyor size	2000100mm(LW)
Size of filling nozzle	OD15mm
Size of air compressor connector	Φ8mm
Power of whole machine	1500W

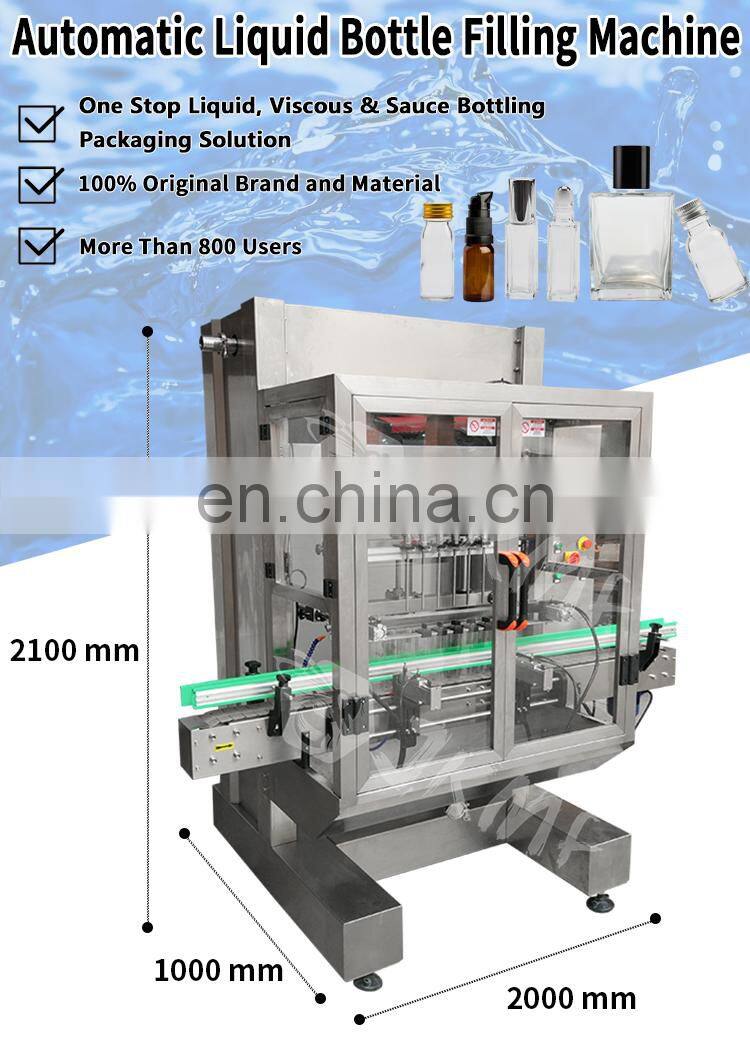

Machine size	200010002100mm
Gross weight/Net weight	500KG

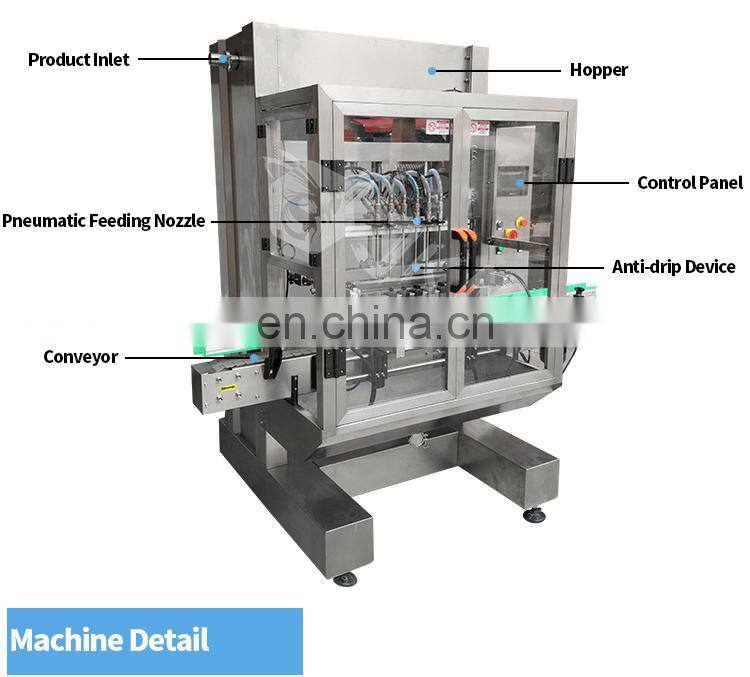

Machine Features

1.Touch screen operation interface.

2.Up and down movement type filling, effectively prevent the foam from being produced, easy to take apart and wash.

3.The filling accuracy can reach ±1%.

4.The filling cylinder is ground, unique filling valve design, no leakage.

5.With no bottle no filling and automatic bottle stop function. 6.Design different positioning devices according to the actual situation of the bottle;

7.The equipment is easy to clean, can be disassemble without tools, it can also be cleaned online or high temperature sterilization.

8.PLC programmable control use Japan Mitsubishi.

9.Frequency converter adopts France Schneider

10.Pneumatic components adopt Taiwan Airtac.

11.Material contact parts are made of SUS304# stainless steel.

12.The equipment meets the hygiene and safety standards. The user can choose the glass protective cover.

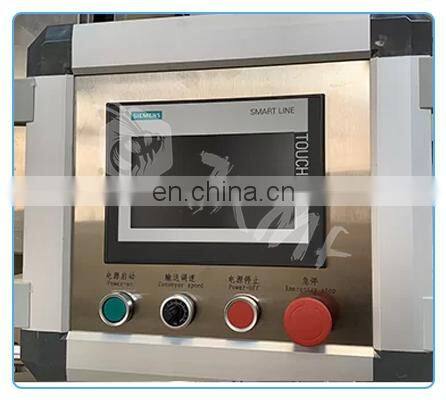

The touch screen make it easier to control and watch the working data in real time.The flling volume and filling speed can be
controlled according to production needs.The PLC panel makes it possible to set control panel language into other kinds of
language,please contact us for custom if you need this.

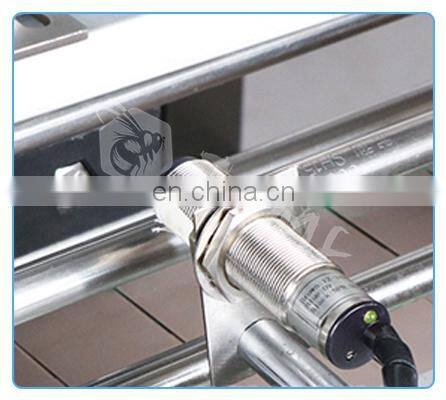

The machine is equipped with high quality electric eye,can detect passing by container accurately and realize the automated
work,reduce the production error and improve working eficiency.

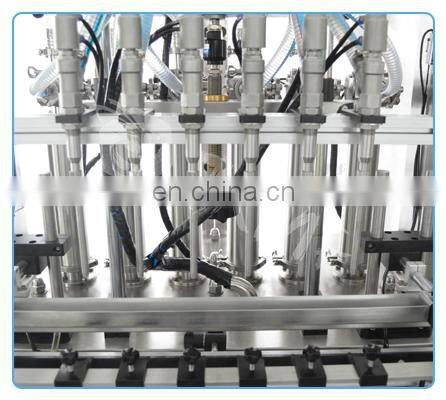

The pneumatic filling nozzle can ensure filling paste faster,it is with anti-dripping design which ensure the machine and production cleanliness.

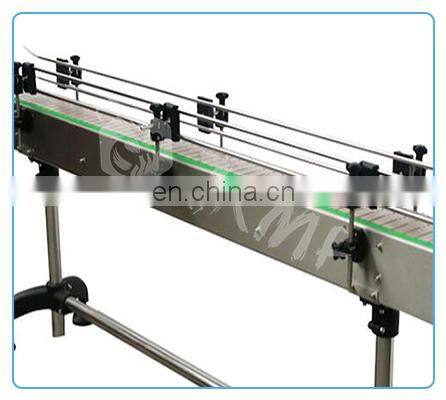

High quality conveyor belt can transfer bottles automatically,it is designed with protective guard which can make products will be
transferred stably.The size of the conveyor is 2000mm*125mm.

We can customize the size according to your needs.

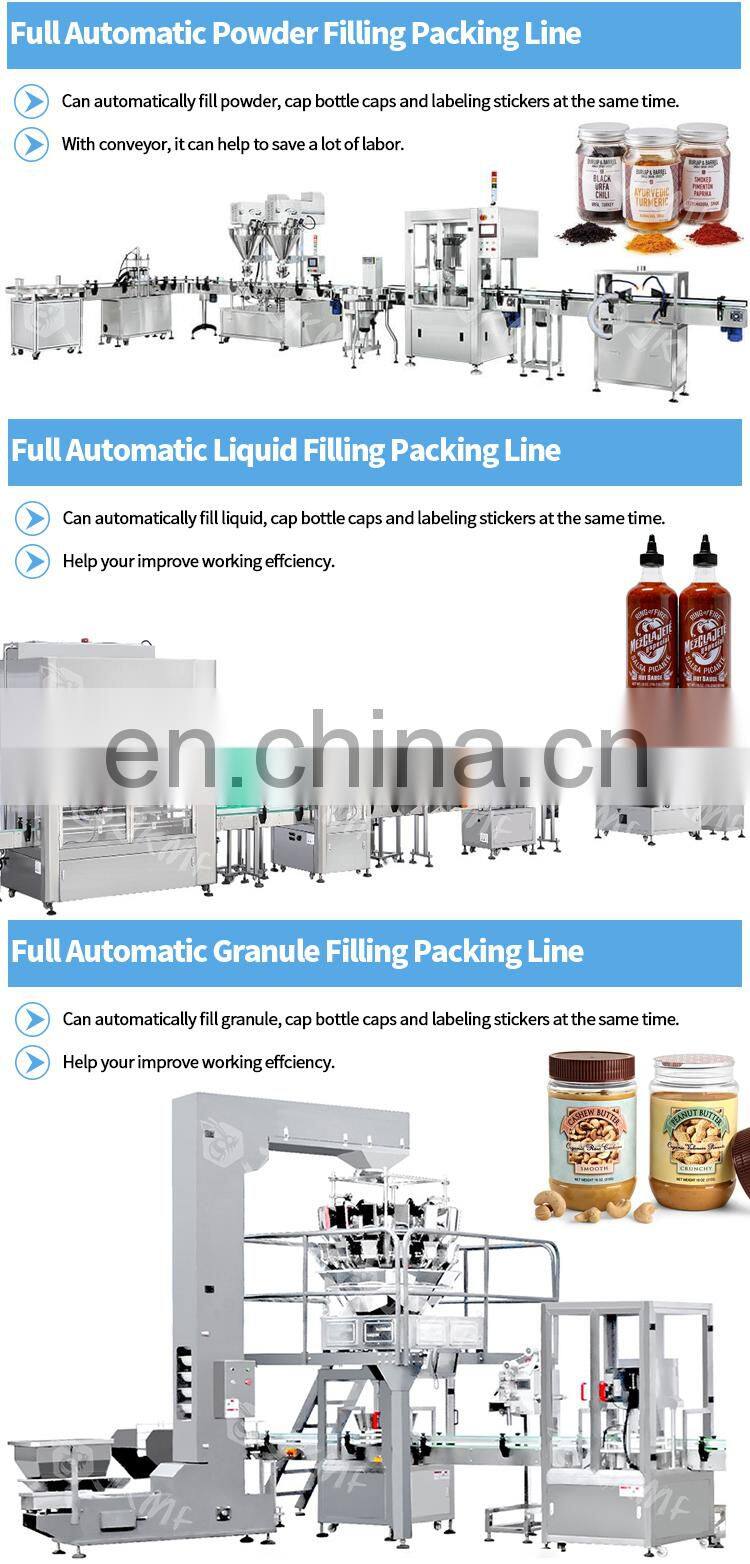

Recommend Products

Please send us your request, we can help you customize a suitable machine!

We have other machine, if you want to know,please send us your request, we can help you customize a suitable machine !

Why Choose Us

JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.

After acceptance by the customer, they are packed in international standard wooden cases and shipped.

Company Profile

Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.The automatic packaging equipment for granule, powder, liquid and sauce produced by the Jason company is at the advanced level of the industry,it can be customized production automatic material packaging line for all kinds of products .Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.

Customer Photos

With years of development, we participated in exhibitions in various countries.

Our customers have covered more than 80 countries around the world.And give us unanimous praise.

Certifications

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
