Servo control fresh vegetable packing machine for onion corn packaging machine tomato cauliflower cucumber packing machine

Name: Servo control fresh vegetable packing machine for onion corn packaging machine tomato cauliflower cucumber packing machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

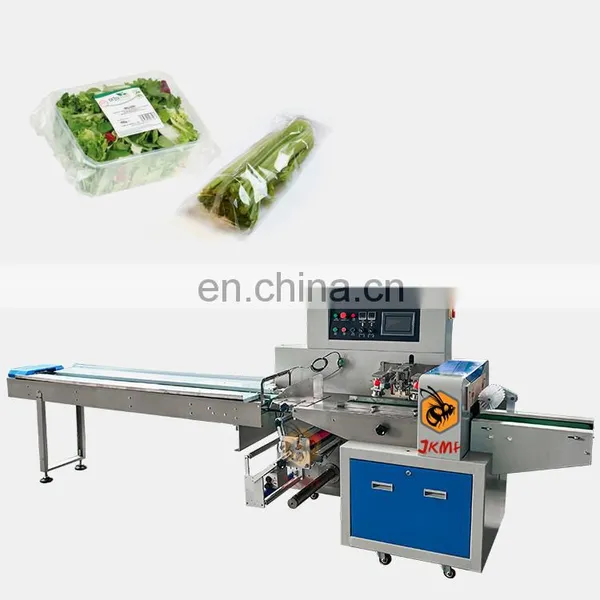

Servo control fresh vegetable packing machine for onion corn packaging machine tomato cauliflower cucumber packing machine

Products Description

The JK-B model flow packing machine features quick, easy changeover and adjustment that minimizes product and film waste and reduces maintenance costs.

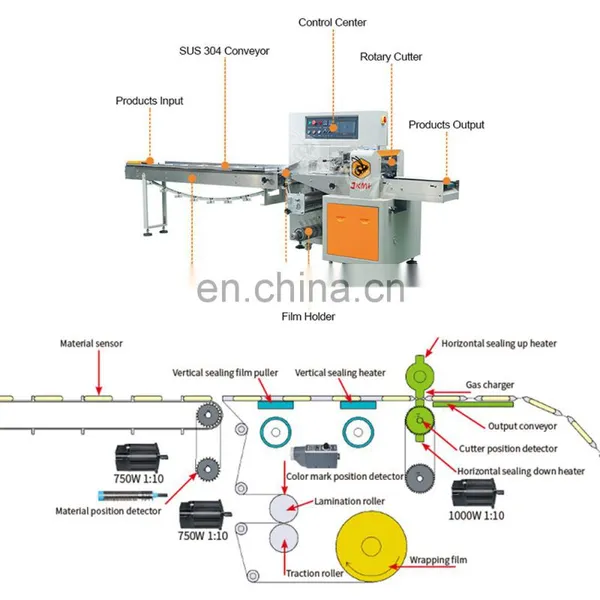

The machine working starts with a cylindrical roll of film. The flow wrapping machine will transfer the film from the roll and through to the forming collar (sometimes referred to as tube or plow). At the same time, a conveyor has lined up individual products for wrapping. The film is fed through the collar and the product is surrounded with film, sealed and the film is then cut. The finished individual product is then gathered downstream to be bagged or cartoned prior to boxing and palletizing.

Automatic flow packing machine is a widely used packing machine.

Suitable for all kinds of product packaging. Including medical supplies, vegetables and meat, baked bread, snacks and candy, daily necessities, hardware accessories, etc.

Machine Paramenters

Main Features

1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.

Model	JK-250X	JK-350X	JK-450X	JK-600X
Film Width	Max.250 mm	Max.350 mm	Max.350 mm	Max.350 mm
Packing Size	L: 45~330 mm W:30~110 mm H:Max.70 mm	L: 65~330 mm W:50~160 mm H:Max.80 mm	L: 45~330 mm W:30~110 mm H:Max.70 mm	L: 45~330 mm W:30~110 mm H:Max.70 mm
Packing Speed	40~230 bags/min	40~230 bags/min	30~150 bags/min	30~150 bags/min
Machine Power	220V, 50/60Hz, 2.4KW	220V, 50/60Hz, 2.4KW	220V, 50/60Hz, 2.6KW	220V, 50/60Hz, 2.6KW
Machine Size	39206701320 mm	40207201450 mm	39909001468 mm	399010001468 mm
Machine Weight	800 KG	900 KG	900 KG	1050 KG

Machine Working Process

1st step: Put the packaging film on the holder and wear the film as required.

2nd step: Setting the parameters you want by touch screen.

3rd step:Put the materials to be packed on the conveyor belt

4th step: The bag former will make the bag automatically.

5th step: The horizontal and vertical cutter device will seal the middle

and of the bag.

6th step: You will get the nicely paper or plastic bag type.

Why Choose Us

JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.

After acceptance by the customer, they are packed in international standard wooden cases and shipped.

We will package the machine's instruction manual and a USB flash drive with machine operation videos together with the machine.
Ensure that you can use the machine as soon as you receive it. If you have something you don't understand, our after-sales team will also help you answer in time.

Our customers have covered more than 80 countries around the world.

And give us unanimous praise.

Company Profile

Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.The automatic packaging equipment for granule, powder, liquid and sauce produced by the JKMF company is at the advanced level of the industry,it can be customized production automatic material packaging line for all kinds of products .Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.

Certifications

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
